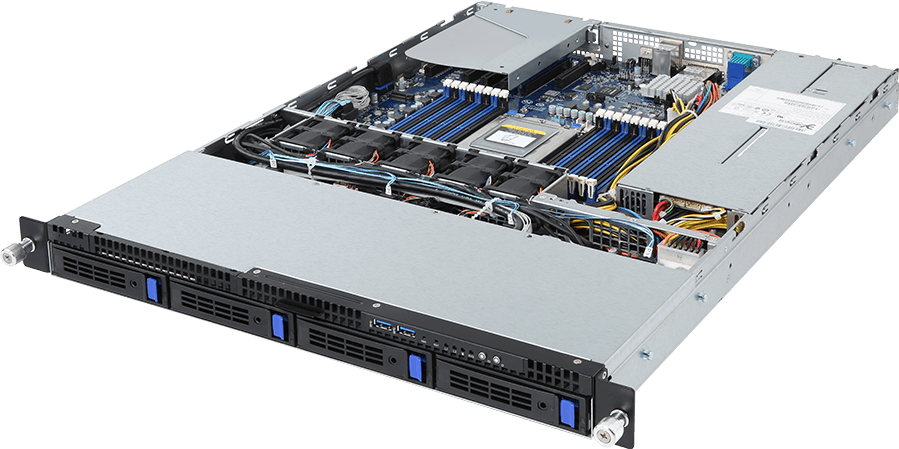

AMD EPYC™ 7003 UP Server System - 1U 4-Bay
- AMD EPYC™ 7003 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
- 1 x Dedicated management port
- 4 x 3.5"/2.5" SATAIII hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 1 x PCIe Gen3 x16 expansion slot
- Aspeed® AST2500 remote management controller
- 650W 80 PLUS Platinum redundant PSU
Specifications
Dimensions (WxHxD, mm)
1U
430 x 43.5 x 625 mm
430 x 43.5 x 625 mm
Motherboard
MZ31-AR0 Rev. 3.0
CPU
AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Compatible with AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage
4 x 3.5" SATA/SAS hot-swappable HDD/SSD bays
2.5" HDD/SSD supported
SAS card is required for SAS devices support
2.5" HDD/SSD supported
SAS card is required for SAS devices support
SAS
N/A
RAID
N/A
Peripheral Drives
1 x Slim type ODD as an option
NOTE: For 12.7mm ODD only
NOTE: For 12.7mm ODD only
Expansion Slots
1 x Riser card:
- 1 x CRS1013
* 1 x Full-height half-length slot with PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2280/2260/2242 cards
- 1 x CRS1013
* 1 x Full-height half-length slot with PCIe x16 (Gen3 x16 bus) slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2280/2260/2242 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
Backplane Board
4 x SATA/SAS ports
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
SAS card is required for SAS devices support
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply[#1]
2 x 650W redundant power supply
80 PLUS Platinum
AC Input:
- 100-240Vac~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- 650W
+ 12V/ 52.9A
+ 5Vsb/ 4A
+ 12V/ 52.9A
+ 5Vsb/ 4A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
5 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Ambient temperature limited to 30°C if using 280W CPU
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Ambient temperature limited to 30°C if using 280W CPU
Packaging Dimensions
959 x 588 x 248 (mm)
Packaging Content
1 x R151-Z30 system
1 x CPU heatsink
1 x Quick Installation Guide
1 x Rail kit
1 x CPU heatsink
1 x Quick Installation Guide
1 x Rail kit
Part Numbers
Server unit: 6NR151Z30MR-00 Rev. B00
Motherboard: 9MZ31AR0MR-00 Rev. 3.0
Rail Kit: 25HB2-3A6101-K0R
CPU heatsink: 25ST1-44320G-A0R
Fan module: 25ST2-445626-D0R
Power supply: 25EP0-206505-F3S
Power Supply PDB: 25EP1-206500-F3S
Fan duct for 280W CPU: 25HA8-R15100-S5R (optional)
Motherboard: 9MZ31AR0MR-00 Rev. 3.0
Rail Kit: 25HB2-3A6101-K0R
CPU heatsink: 25ST1-44320G-A0R
Fan module: 25ST2-445626-D0R
Power supply: 25EP0-206505-F3S
Power Supply PDB: 25EP1-206500-F3S
Fan duct for 280W CPU: 25HA8-R15100-S5R (optional)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
