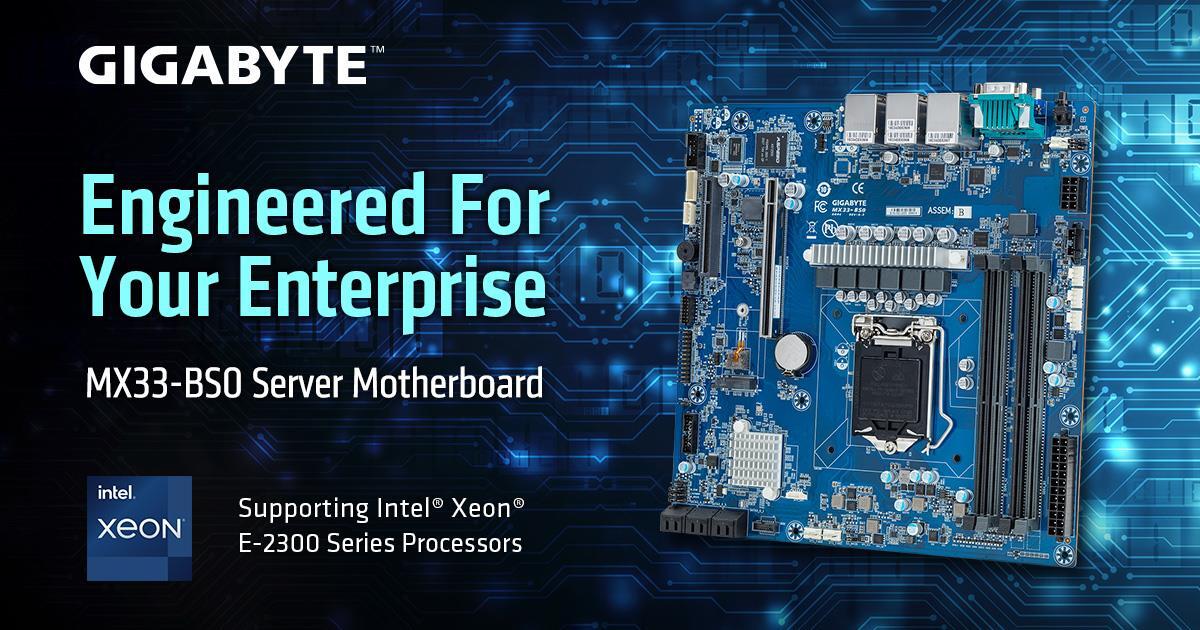

MX33-BS0
(rev. 1.x)

Motherboard - Intel^® Xeon^® E-2300 - microATX UP

Single Intel^® Xeon^® E-2300 Processor
Intel^® C252 Chipset
Dual Channel UDIMM DDR4, 4 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I210-AT
6 x SATA 6Gb/s ports
1 x M.2 slot with PCIe Gen3 x4 interface
2 x PCIe Gen4 x16 and x4 expansion slots

Get a Quote

비교

Get a Quote

* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.

SPECIFICATIONS

Form Factor

microATX
244W x 244D mm

CPU

Intel^® Xeon^® E-2300 Processor
10th Gen Intel^® Pentium^® Processor
TDP up to 95W

Socket

1 x LGA 1200
Socket H5

Chipset

Intel^® C252

Memory

4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: 3200/2666 MT/s

LAN

2 x 1Gb/s LAN ports (2 x Intel^® I210-AT)
1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

Storage Interface

PCH:
- 6 x SATA 6Gb/s ports

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

1 x PCIe x16 (Gen4 x16) slot, from CPU*
1 x PCIe x8 (Gen4 x4) slot, from CPU**

*Downgraded to Gen3 if installed with a Intel^® Pentium^® Processor.
**Not available if installed with a Intel^® Pentium^® Processor.

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2242/2280 cards

Internal I/O

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
6 x SATA connectors
1 x Front panel header
1 x Backplane board connector
1 x COM header
1 x PMBus header
1 x IPMB header
1 x TPM header

Rear I/O

2 x USB 3.2 Gen2x1
4 x USB 2.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Supported

Red Hat Enterprise Linux 6.9 (x64)
Red Hat Enterprise Linux 7.3 (x64)

SUSE Linux Enterprise Server 11.2 (x64)
SUSE Linux Enterprise Server 12.2 (x64)

Ubuntu 16.04.6 LTS (x64)
Ubuntu 18.04.2 LTS (x64)

VMware 6.5

Windows Server 2016 (x64)
Windows Server 2019 (x64)

Board Management

Aspeed^® AST2500 management controller
AMI MegaRAC SP-X Solution Web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 0°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MX33-BS0
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)

Single Box dimensions: 321 x 308.5 x 78.5 mm
Carton dimensions: 630 x 420 x 345 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

20 x MX33-BS0
20 x I/O shields

Carton dimensions: 609 x 581 x 362 mm

Reference Numbers

Retail: 9MX33BS0MR-00-1*
Bulk: 9MX33BS0NR-00-1*

Part Numbers:

- I/O shield: 12AIO-MX23C0-10R
- SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R
