B760M GAMING AC DDR4 GEN5

OVERVIEW

Performance

Thermal

Connectivity

DIY Friendly

  • 6+2+1 Hybrid Phases Power

    • PCIe 5.0 Ready PCB

  • Support 14th and 13th Gen.
    Intel® Core™ Processors

  • UD Power Connector

    • 24 pin ATX Power Connector
    • 8 pin CPU with UD Solid Pin

  • 2 x DIMMs, Dual Channel DDR4

  • 2 x M.2 Slots

    • 2 x PCIe 4.0 M.2 Slots

  • PCIe slots

    • 1 x PCIe 5.0 x16 with PCIe UD Slot
    • 1 x PCIe 3.0 x1 slot

    • VRM Heatsink

      • 2 x USB 2.0

      • Wi-Fi 802.11ac

      • WIFI EZ-Plug

      • 1 x HDMI

      • 1 x D-sub

      • 1 x Display Port

      • 1 x USB 3.2 Gen 1 Type-C®

      • 3 x USB 3.2 Gen 1

      • 2.5 GbE LAN

      • 4 x SATA 6Gb/s

      • Hi-Fi Audio

        • 8-CH HD Audio
        • High-End Audio Capacitor

      • RGB FUSION

        • 2 x Addressable LED Headers
        • 1 x RGB LED Header

        • PCIe EZ-Latch

        • Q-Flash Plus

        • WIFI EZ-Plug

          Express to PCIE5 Performance

          The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform.

          PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.

          Durable Performance

          GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

          PCIe UD Slot

          GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.

          1.7X

          stronger shearing test

          3.2X

          stronger retention force test

          Reduced Signal Degradation
          with SMD Technology

          * Photo for refrence only

          UD Power Connector

          Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

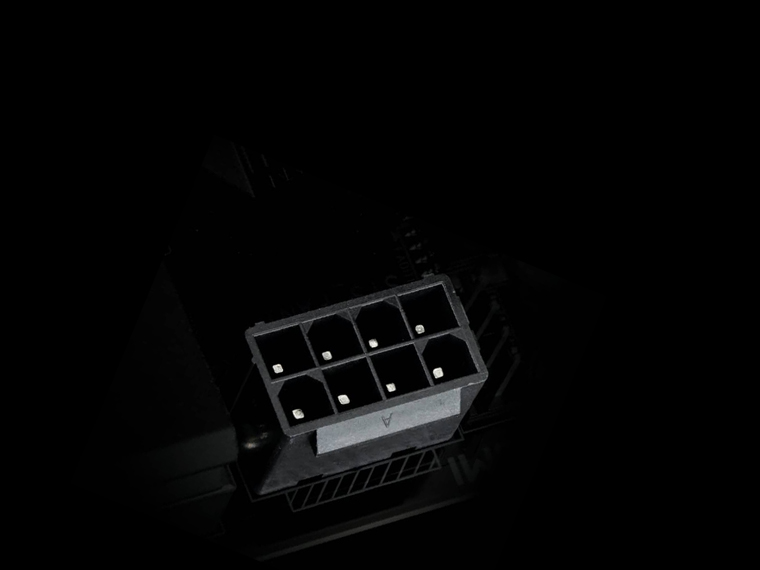

          Solid Pins

          Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections

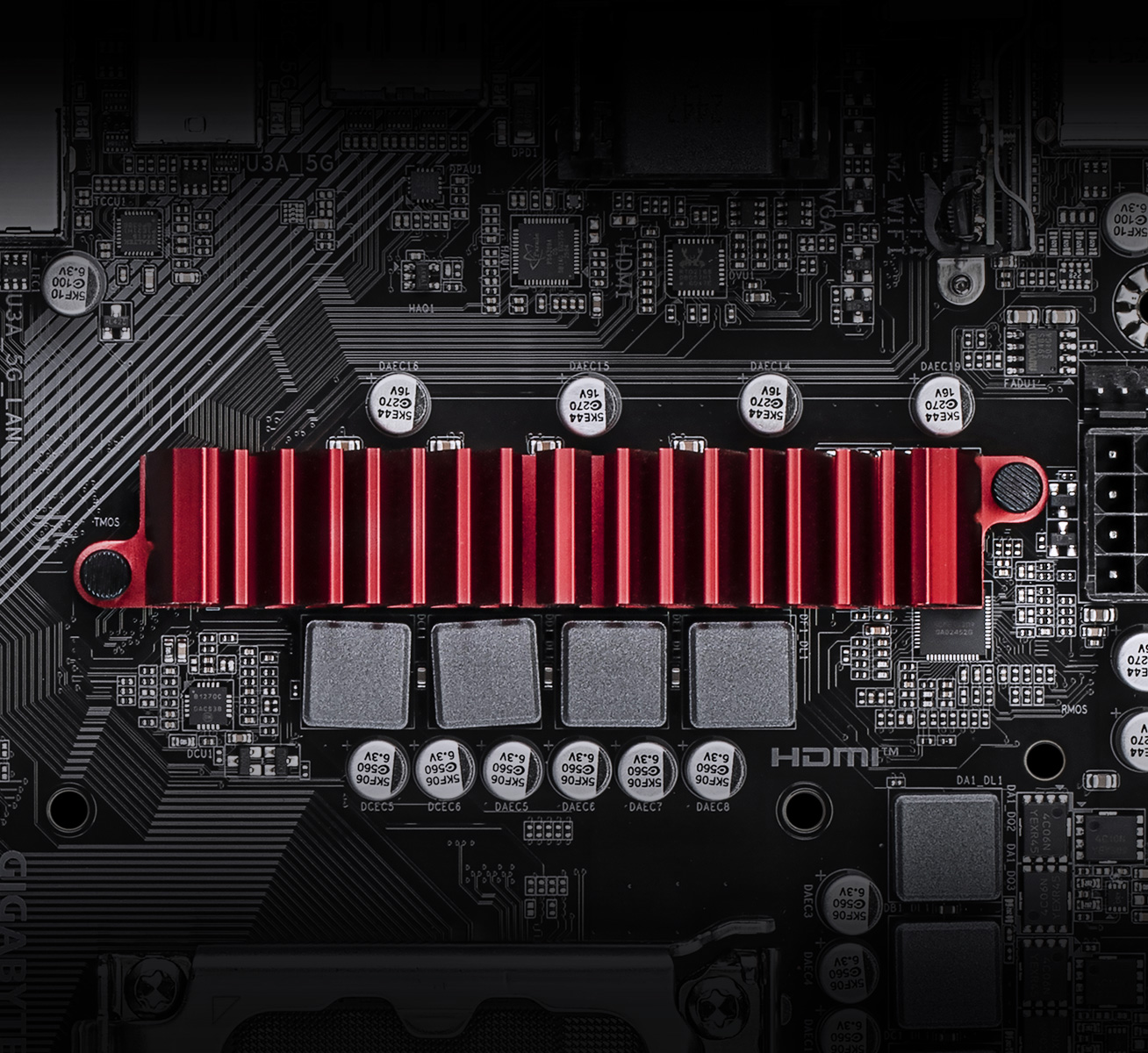

          VRM Thermal

          Durable VRM heatsinks keep your system cool and efficient.

          * Photo for reference only

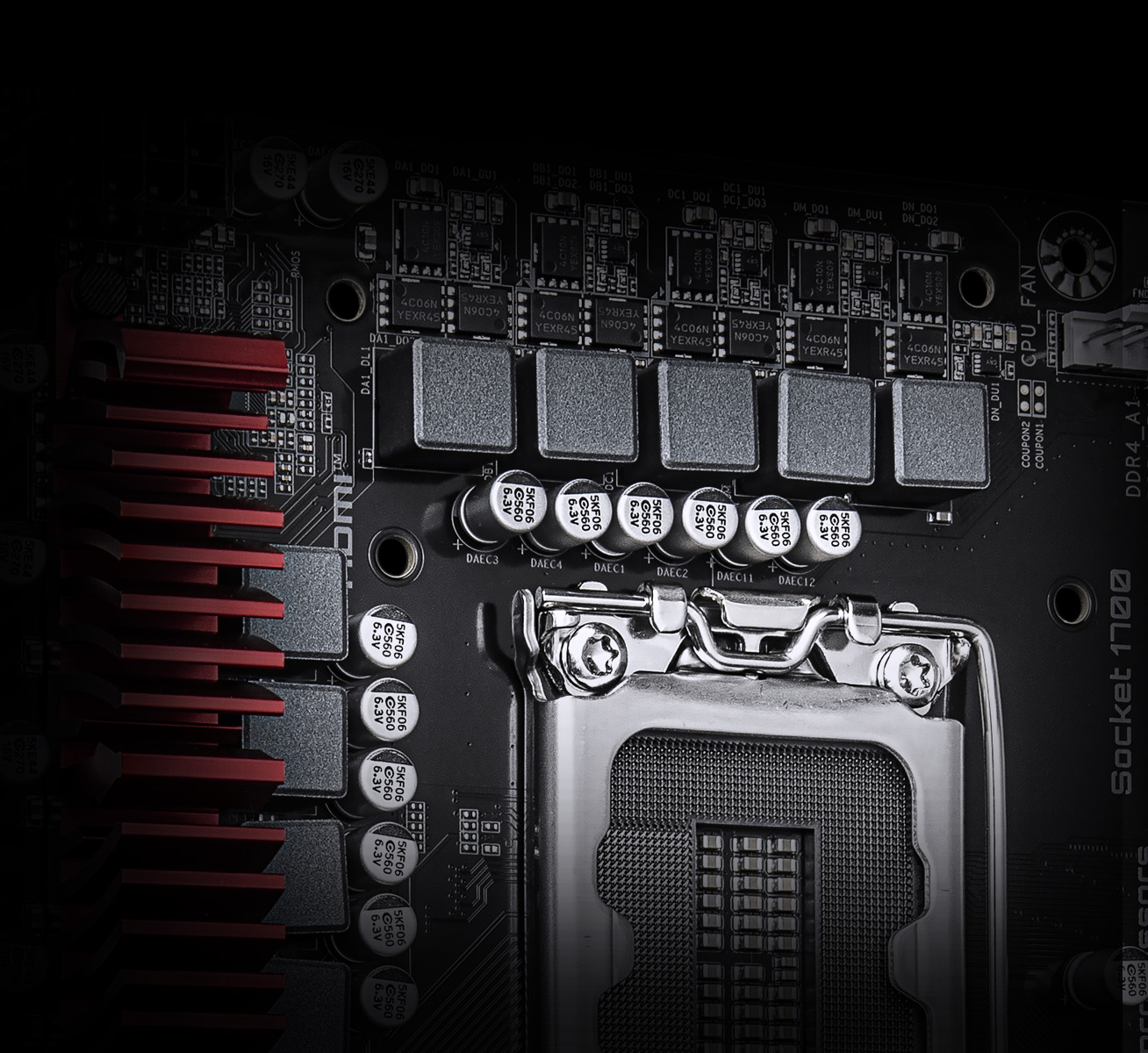

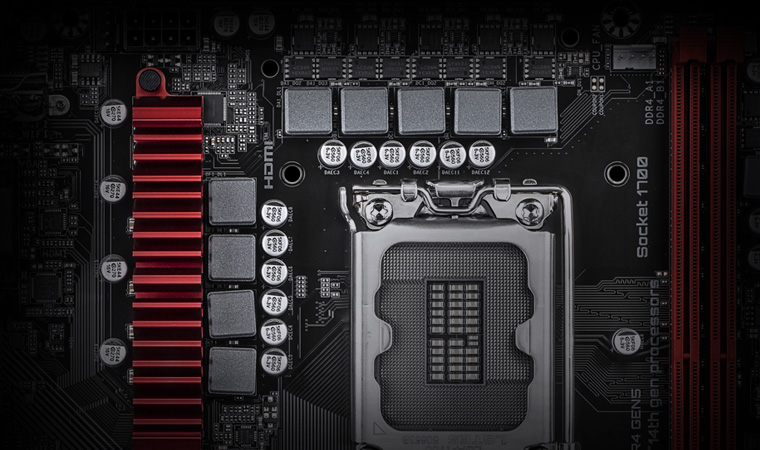

          Hybrid VRM Design

          The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

          * Photo for reference only

          Hybrid VRM Design

          • 6+2+1 Phases Hybrid PWM

          • Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.

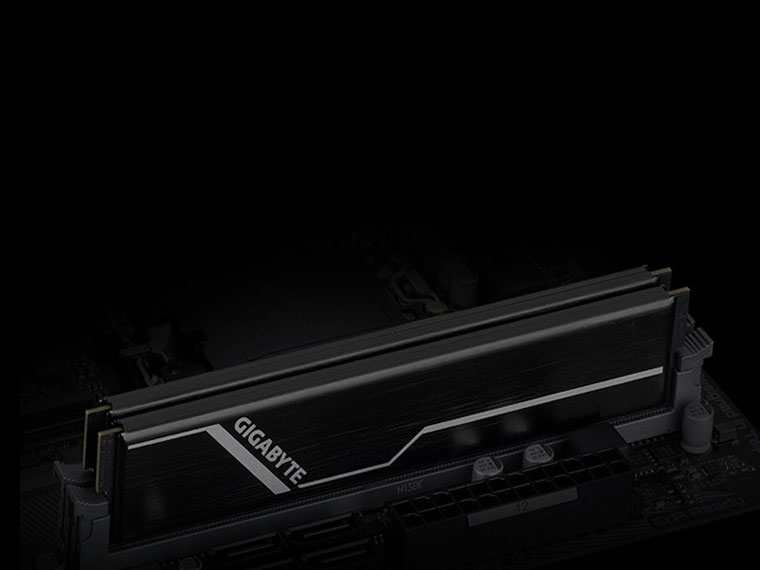

          Support for DDR4 XMP Up to 5333MHz and Beyond*

          GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
          QVL List

          Up to


          5333

          * XMP Profile support may vary depending on memory module.
          * Please see the complete validated memory support list. Product features may vary by model.
          * Photos for reference only.

          Smart Fan 6

          Cool. Quiet. Customized.

          Smart Fan 6

          Superior cooling performance and whisper-quiet operation for your gaming rig.

          Note: Images are for illustrative purposes and may differ based on your model.

          High Current Support

          • Supports both PWM and DC fans, plus water cooling pumps
          • Up to 24W (12V x 2A) capacity per fan header
          • Built-in over-current protection

          Precision Control

          • Multiple temperature and fan speed points
          • Customizable fan curves for optimal performance

          Dual Curve Mode

          • Choose between slope and stair modes
          • Tailor cooling to your specific needs and preferences

          Fan Stop Technology

          • Fans can be completely turned off at low temperatures
          • Ensures silent operation during light loads

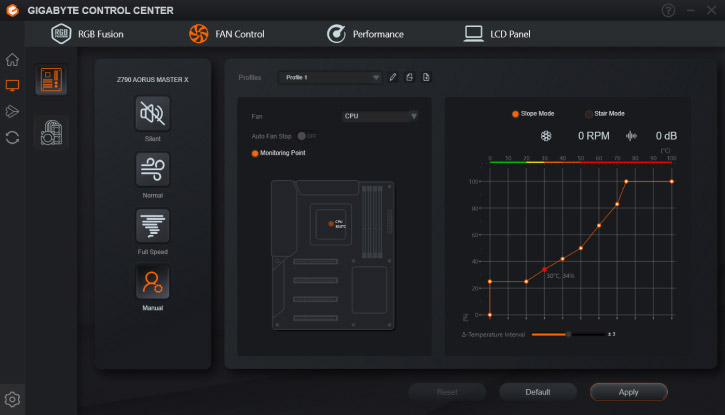

          Smart Fan 6 BIOS UI

          Note: Images are for illustrative purposes and may differ based on your model.

          Enhance Fan Curve UI

          • 7 adjustable control points
          • Expanded speed graph for precise adjustments

          Slope/Stair Dual Graph Mode

          • Slope mode: Smooth fan speed curve
          • Stair mode: Steady speeds within temperature ranges
          • Easy switching between modes

          Manual Input

          • Fine-tune fan speeds for optimal performance
          • Precise control for enthusiasts

          EZ Tuning

          • Quick setup with 4 temperature and fan speed points
          • Automatic optimization of fan curve

          Fan Curve Profile

          • Save personalized settings to BIOS ROM
          • Maintain custom settings through BIOS updates

          Future Connectivity

          The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

          802.11ac Wi-Fi

          The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.

          * Photo for reference only.

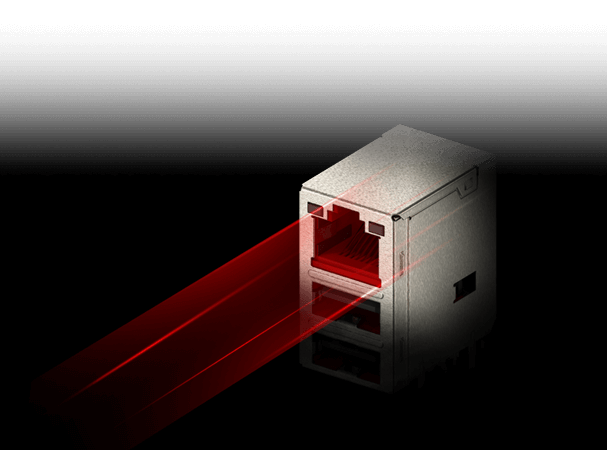

          2.5G LAN

          Design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

          Hi-Fi Audio

          High-End Audio Capacitors Audio Noise Guard

          * Photo for reference only.

          Hi-Fi Audio

          High-End Audio Capacitors

          These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

          Audio Noise Guard

          Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

          Easy Friendly

          Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

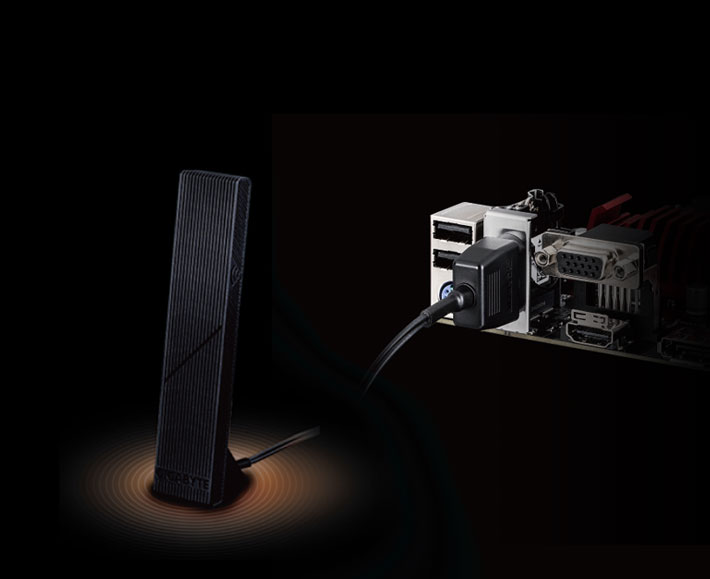

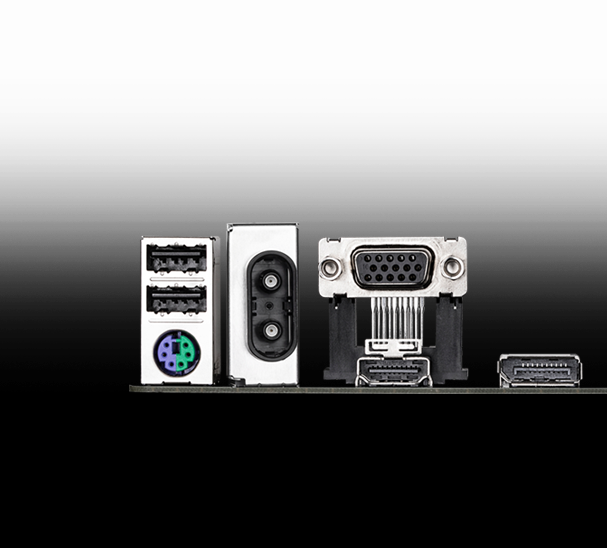

          WIFI EZ-Plug

          The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

          * Photo for reference only.

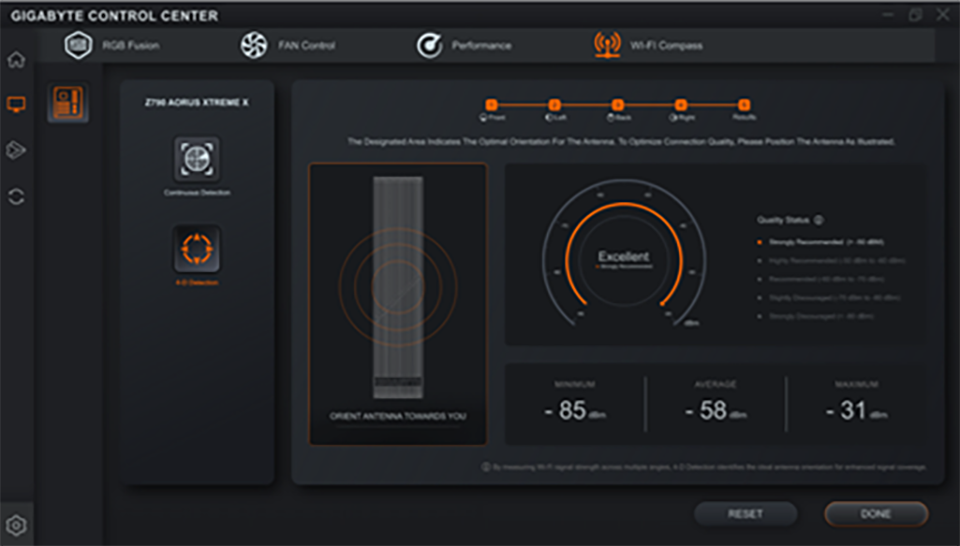

          WIFI Compass

          Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.

          Easy-to-use interface guides users to measure without expertise


          4D Mode (4 Detection Mode)

          Built for everyday use.

          * Images for reference only and may vary by model.

          CD Mode (Continuous Detection Mode)


          Designed for technical enthusiasts.

          * Images for reference only and may vary by model.

          EZ-Latch Designs

          User-friendly designs simplifying the assembly process.

          PCIe EZ-Latch

          Easy ejection with single click for graphics cards

          UC BIOS

          Redesigned UI and UX

          an intuitive operation interface with an aesthetically pleasing design.

          Quick Access

          9 customizable option slots for effortless access in Easy Mode.

          PerfDrive

          exclusive BIOS settings that optimize the performance based on the cooling configuration.

          UC BIOS

          Enhanced Intuitive UX

          GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.

          * Images for reference only and may vary by model.

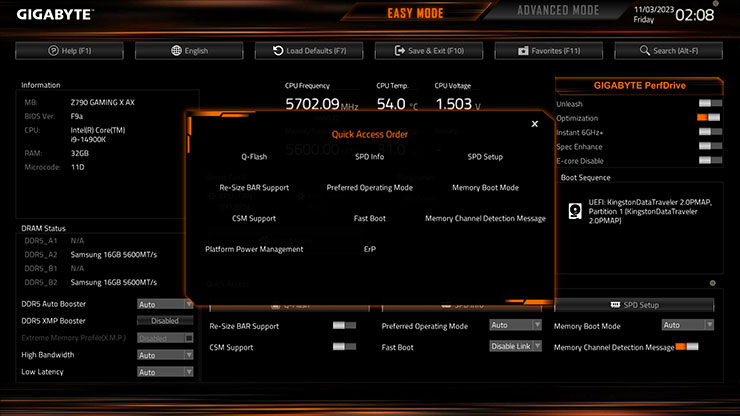

          Quick Access Function

          GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

          * Images for reference only and may vary by model.

          GIGABYTE PerfDrive

          PerfDrive technology integrates exclusive BIOS settings from GIGABYTE, enabling easy balance of performance, power consumption, and temperature with Intel® Core™ processors.

          Max Turbo

          Unleashes the maximum Turbo Boost speed of Intel® Core™ CPUs.

          Optimization Mode

          Strikes a balance between high performance and low temperature for Intel® Core™ CPUs.

          Spec Enhance Mode

          Enables high-performance operation of Intel® Core™ CPUs at lower temperature settings.

          E-Core™ Disable Mode

          Dedicates CPU resources exclusively to the P-core, enhancing gaming performance while reducing overall power consumption.

          Q-FLASH PLUS

          Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

          Q-FLASH PLUS

          Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

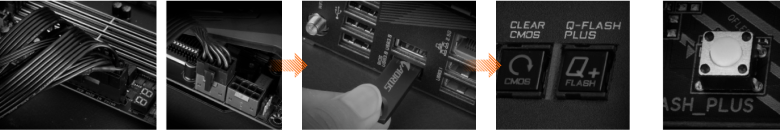

          STEP 1

          Connect the 24-pin and 8-pin power cables directly to the motherboard.

          STEP 2

          Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.

          STEP 3

          Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

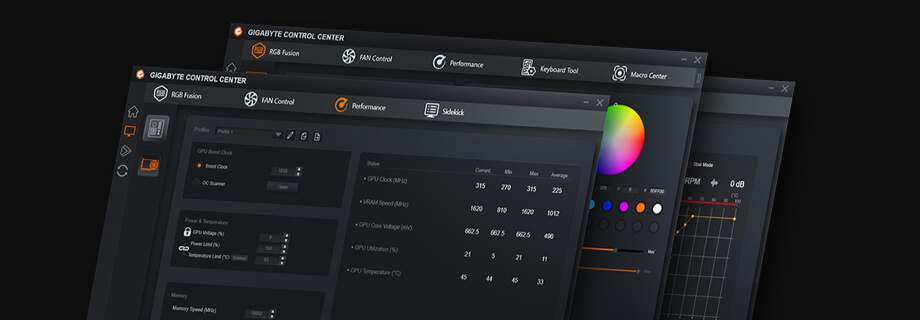

          GIGABYTE Control Center

          A unified software platform encompassing multiple GIGABYTE product.

          RGB Fusion

          Personalize the RGB illumination on your motherboard and connected peripherals.

          RGB Fusion

          Varnish your shine

          Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

          * The information provided is for reference; please prioritize your specific setup and specifications.
          1x RGB LED header

          2x ARGB LED headers

          Key Features

          • PCIe Gen5 Performance : Perfect Sync to Win
          • Supports Intel® Core™ 14th/ 13th /12th processors
          • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
          • WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
          • EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
          • Ultra Durable™ SMD PCIe 5.0 Armor for enhanced graphics card support
          • Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
          • Dual Channel DDR4 : 2*DIMMs XMP Memory Module Support
          • Fast Networks : 2.5GbE LAN & Wi-Fi 802.11ac
          • Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
          • Extended Connectivity : Rear USB-C® 5Gb/s, DP, HDMI, D-Sub
          • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
          • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

          * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
          * Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
