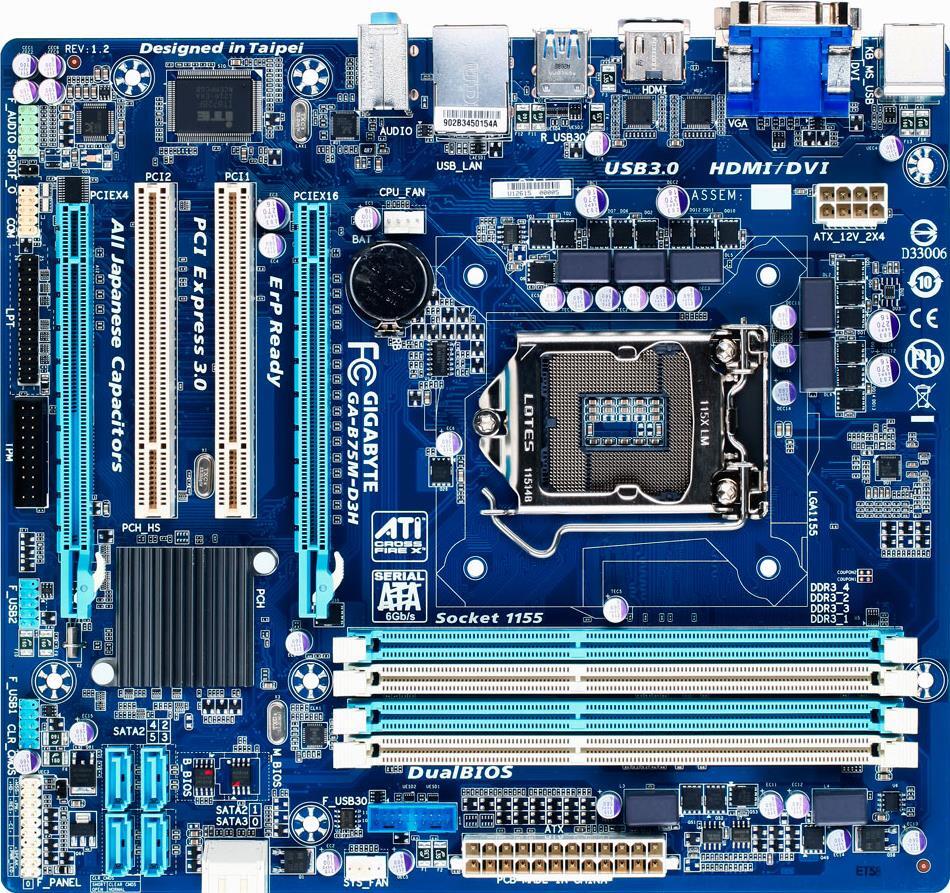

GA-B75M-D3H (Rev. 1.2)

Rev. 1.2Rev. 1.0Rev. 1.1
Intel® B75 Chipset
ОбзорСпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
    2. L3 cache varies with CPU
    (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
  • Чипсет
    1. Intel® B75 Express Chipset
  • Подсистема памяти
    1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
      * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
      * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
    (Please refer "Memory Support List" for more information.)
  • Графический интерфейс
  • Integrated Graphics Processor:
    1. 1 x D-Sub port
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • Аудиоподсистема
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • Сетевой
    LAN-интерфейс
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Разъёмы для плат расширения
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
    3. 2 x PCI slots
  • Масштабируемость видеоподсистемы
    1. Support for AMD CrossFireX™ technology
  • Интерфейсы накопителей
  • Chipset:
    1. 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
    2. 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
  • Интерфейс USB
  • Chipset:
    1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
  • Разъемы на системной плате
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x SATA 6Gb/s connector
    4. 5 x SATA 3Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x system fan header
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.0/2.0 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x serial port header
    13. 1 x parallel port
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x Clear CMOS jumper
  • Разъемы на задней панели
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 2 x USB 3.0/2.0 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks (Line In/Line Out/Microphone)
  • Микросхема
    I/O-контроллера
    1. iTE® I/O Controller Chip
  • Контроль за состоянием системы
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
  • Микросхема BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Фирменные функции и технологии
    1. Support for @BIOS
    2. Support for Q-Flash
    3. Support for Xpress Install
    4. Support for Xpress Recovery2
    5. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
    6. Support for Auto Green
    7. Support for ON/OFF Charge
    8. Support for Q-Share
    9. Support for EZ Setup
  • ПО в комплекте поставки
    1. Norton® Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Small Business Advantage
  • Операционная система
    1. Support for Microsoft® Windows 8/7/XP
  • Форм-фактор
    1. Micro ATX Form Factor; 24.4cm x 22.0cm
  • Примечания
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Процессор
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
      2. L3 cache varies with CPU
      (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
    • Чипсет
      1. Intel® B75 Express Chipset
    • Подсистема памяти
      1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
        * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
        * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
      (Please refer "Memory Support List" for more information.)
    • Графический интерфейс
    • Integrated Graphics Processor:
      1. 1 x D-Sub port
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
    • Аудиоподсистема
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • Сетевой
      LAN-интерфейс
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Разъёмы для плат расширения
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
      3. 2 x PCI slots
    • Масштабируемость видеоподсистемы
      1. Support for AMD CrossFireX™ technology
    • Интерфейсы накопителей
    • Chipset:
      1. 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
      2. 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
    • Интерфейс USB
    • Chipset:
      1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
      2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
        * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
    • Разъемы на системной плате
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x SATA 6Gb/s connector
      4. 5 x SATA 3Gb/s connectors
      5. 1 x CPU fan header
      6. 1 x system fan header
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x USB 3.0/2.0 header
      11. 2 x USB 2.0/1.1 headers
      12. 1 x serial port header
      13. 1 x parallel port
      14. 1 x Trusted Platform Module (TPM) header
      15. 1 x Clear CMOS jumper
    • Разъемы на задней панели
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 2 x USB 3.0/2.0 ports
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In/Line Out/Microphone)
    • Микросхема
      I/O-контроллера
      1. iTE® I/O Controller Chip
    • Контроль за состоянием системы
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
    • Микросхема BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Фирменные функции и технологии
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Install
      4. Support for Xpress Recovery2
      5. Support for EasyTune
        * Available functions in EasyTune may differ by motherboard model.
      6. Support for Auto Green
      7. Support for ON/OFF Charge
      8. Support for Q-Share
      9. Support for EZ Setup
    • ПО в комплекте поставки
      1. Norton® Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Small Business Advantage
    • Операционная система
      1. Support for Microsoft® Windows 8/7/XP
    • Форм-фактор
      1. Micro ATX Form Factor; 24.4cm x 22.0cm
    • Примечания
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
