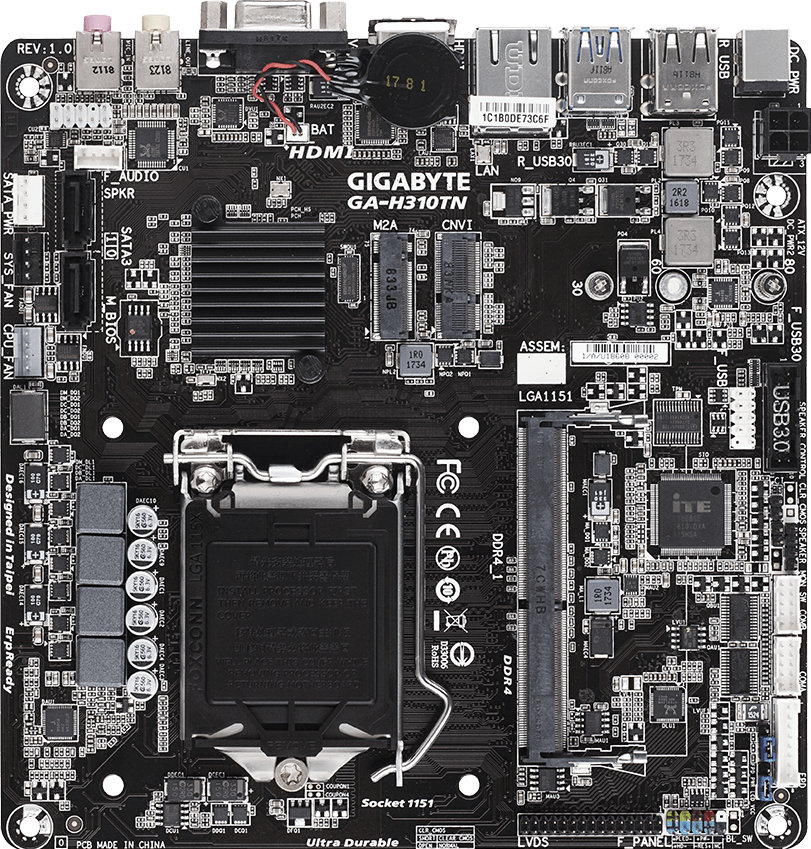

GA-H310TN (Rev. 1.0)

Intel® H310 Chipset
DescripciónEspecificaciónSoporte y DescargasWhere to Buy

Especificación

  • Procesador
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® H310 Express Chipset
  • Memoria
    1. 1 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory
    2. Support for DDR4 2400/2133 MHz memory modules
    3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    (Please refer "Memory Support List" for more information.)
  • Gráficos Integrados
  • Integrated Graphics Processor-Intel® HD Graphics support
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
  • LAN
    1. Realtek® GbE LAN chips (10/100/1000 Mbit)
  • TPM
    1. Infineon chip, supporting TPM 2.0
  • Puertos de Expansión
    1. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
  • Interfaz de Almacenamiento
  • Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
    2. 2 x SATA 6Gb/s connectors
  • USB
  • Chipset:
    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Conectores Internos de E/S
    1. 1 x 4-pin ATX 12V power connector
    2. 1 x CPU fan header
    3. 1 x system fan header
    4. 2 x SATA 6Gb/s connectors
    5. 1 x SATA power connector
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x battery power cable connector
    9. 1 x USB 3.0/2.0 header
    10. 1 x USB 2.0/1.1 header
    11. 2 x serial port headers
    12. 1 x LVDS header
    13. 1 x LVDS drive voltage jumper (LCD_VCC)
    14. 1 x flat panel display header (FPD)
    15. 1 x flat panel display power jumper (FPD_PWR)
    16. 1 x speaker header (SPKR)
    17. 1 x buzzer header (SPEAKER)
    18. 1 x Clear CMOS jumper
    19. 1 x chassis intrusion header
  • Conectores del Panel Trasero
    1. 1 x DC-In power connector
    2. 2 x USB 2.0/1.1 ports
    3. 2 x USB 3.0/2.0 ports
    4. 1 x RJ-45 port
    5. 1 x HDMI port
    6. 1 x D-Sub port
    7. 2 x audio jacks
  • Controlador de E/S
    1. iTE® I/O Controller Chip
  • Monitorización H/W
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    1. Support for @BIOS
    2. Support for Q-Flash
  • Software Incluido
    1. Norton® Internet Security (OEM version)
  • Sistema Operativo
    1. Support for Windows 10 64-bit
  • Diseño
    1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Operating Temperature
  • 0°C to +50°C
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. Intel® H310 Express Chipset
    • Memoria
      1. 1 x DDR4 SO-DIMM sockets supporting up to 16 GB of system memory
      2. Support for DDR4 2400/2133 MHz memory modules
      3. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      (Please refer "Memory Support List" for more information.)
    • Gráficos Integrados
    • Integrated Graphics Processor-Intel® HD Graphics support
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
        * Support for HDMI 1.4 version and HDCP 2.2.
      Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
    • LAN
      1. Realtek® GbE LAN chips (10/100/1000 Mbit)
    • TPM
      1. Infineon chip, supporting TPM 2.0
    • Puertos de Expansión
      1. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
    • Interfaz de Almacenamiento
    • Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)
      2. 2 x SATA 6Gb/s connectors
    • USB
    • Chipset:
      1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    • Conectores Internos de E/S
      1. 1 x 4-pin ATX 12V power connector
      2. 1 x CPU fan header
      3. 1 x system fan header
      4. 2 x SATA 6Gb/s connectors
      5. 1 x SATA power connector
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x battery power cable connector
      9. 1 x USB 3.0/2.0 header
      10. 1 x USB 2.0/1.1 header
      11. 2 x serial port headers
      12. 1 x LVDS header
      13. 1 x LVDS drive voltage jumper (LCD_VCC)
      14. 1 x flat panel display header (FPD)
      15. 1 x flat panel display power jumper (FPD_PWR)
      16. 1 x speaker header (SPKR)
      17. 1 x buzzer header (SPEAKER)
      18. 1 x Clear CMOS jumper
      19. 1 x chassis intrusion header
    • Conectores del Panel Trasero
      1. 1 x DC-In power connector
      2. 2 x USB 2.0/1.1 ports
      3. 2 x USB 3.0/2.0 ports
      4. 1 x RJ-45 port
      5. 1 x HDMI port
      6. 1 x D-Sub port
      7. 2 x audio jacks
    • Controlador de E/S
      1. iTE® I/O Controller Chip
    • Monitorización H/W
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Características Únicas
      1. Support for @BIOS
      2. Support for Q-Flash
    • Software Incluido
      1. Norton® Internet Security (OEM version)
    • Sistema Operativo
      1. Support for Windows 10 64-bit
    • Diseño
      1. Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
    • Operating Temperature
    • 0°C to +50°C
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
