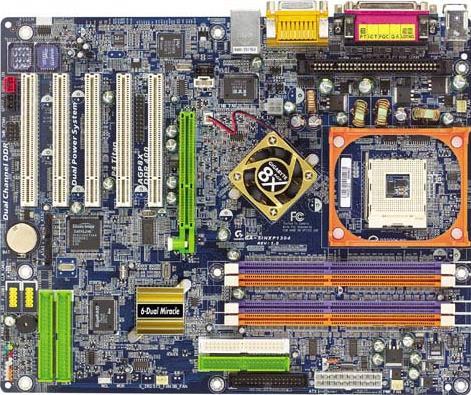

GA-SINXP1394(GA-8SQ800 Ultra2) (Rev. 1.x)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
    2. 533/400 MHz FSB
  • Chipset
    1. North bridge: SiS655 HMAC Host & Memory & AGP Controller
    2. South bridge: SiS963 MuTIOL® Media I/O
    3. Intel 82540EM Gigabit LAN chip
    4. Silicon Image Sil3112A chip
    5. ITE GigaRAID controller chip
    6. Realtek ALC650E Audio AC'97 CODEC
    7. Super I/O: ITE IT8705F chip
    8. 2 x 2M bit flash ROM
  • Memoria
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots (Please read FAQ for further information)
  • Puertos de Expansión
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.2 compliant)
    3. 1 x Dual Power System slot
  • Conectores Internos de E/S
    1. 2 x Serial ATA connector
    2. 4 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (support 4 ports by cable)
    5. 1394 pin header (support 3 ports by daughter card S1394)
    6. S/P DIF input/output pin header
    7. 3 x cooling fan pin headers
    8. WOL pin header
    9. CD/AUX in
  • Conectores del Panel Trasero
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0/1.1 ports
    3. 1 x RJ45 LAN port
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    7. 1 x Game/Midi port
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed
  • BIOS
    1. 2X2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Software Incluido
    1. Easy Tune™ 4, @BIOS™, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Diseño
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Configuración CPU/AGP/DIMM
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Controlador
    1. SiS 655 AGP driver
    2. REALTEK Sound driver
    3. Intel Gigabit LAN driver
    4. Silicon Image Serial ATA driver
    5. ITE IDE RAID driver
  • Otras Características
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Energía
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Procesador
    1. Socket 478 for Intel® new 0.13 micron-process Pentium® 4 processor with Hyper-Threading technology
    2. 533/400 MHz FSB
  • Chipset
    1. North bridge: SiS655 HMAC Host & Memory & AGP Controller
    2. South bridge: SiS963 MuTIOL® Media I/O
    3. Intel 82540EM Gigabit LAN chip
    4. Silicon Image Sil3112A chip
    5. ITE GigaRAID controller chip
    6. Realtek ALC650E Audio AC'97 CODEC
    7. Super I/O: ITE IT8705F chip
    8. 2 x 2M bit flash ROM
  • Memoria
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity: Up to 4GB by 4 DIMM slots (Please read FAQ for further information)
  • Puertos de Expansión
    1. 1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only
    2. 5 x PCI slots (PCI 2.2 compliant)
    3. 1 x Dual Power System slot
  • Conectores Internos de E/S
    1. 2 x Serial ATA connector
    2. 4 x UDMA ATA 133/100/66 Bus Master IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (support 4 ports by cable)
    5. 1394 pin header (support 3 ports by daughter card S1394)
    6. S/P DIF input/output pin header
    7. 3 x cooling fan pin headers
    8. WOL pin header
    9. CD/AUX in
  • Conectores del Panel Trasero
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0/1.1 ports
    3. 1 x RJ45 LAN port
    4. 2 x COM ports
    5. 1 x LPT
    6. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    7. 1 x Game/Midi port
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed
  • BIOS
    1. 2X2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/ CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Software Incluido
    1. Easy Tune™ 4, @BIOS™, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Diseño
    1. ATX form factor, 4 layers PCB (30.5 x 24.4 cm)
  • Configuración CPU/AGP/DIMM
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Controlador
    1. SiS 655 AGP driver
    2. REALTEK Sound driver
    3. Intel Gigabit LAN driver
    4. Silicon Image Serial ATA driver
    5. ITE IDE RAID driver
  • Otras Características
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Energía
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
