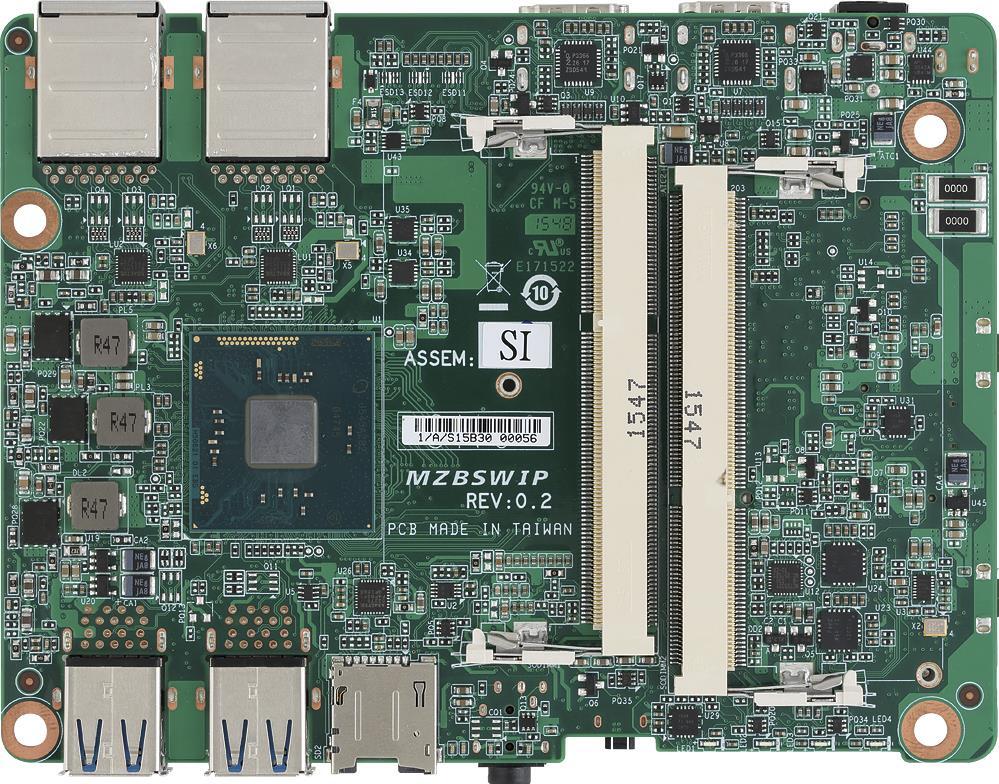

Intel® Celeron® N3060
- 101(W) x 135(D) mm small form factor
- Intel® Celeron® processor N3060
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN ports (Realtek RTL8111HS)
- 32GB onboard eMMC memory
- 1 x Full-size Mini-PCIe for 3G module or mSATA storage
- 1 x Half-size Mini-PCIe for WiFi+BT module
- 1 x SDXC card slot
- Windows & Android 5.1 support
- Overview
- Specifications
- Support
Specifications
Form Factor
Proprietary
101(W) x 135(D) mm
101(W) x 135(D) mm
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Celeron processor N3060
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
Socket
1 x BGA 1170
Memory
2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory
32GB eMMC
LAN
2 x GbE LAN ports (Realtek RTL8111HS)
Video
Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Max. resolution via HDMI ports:
3840 x 2160 @ 30Hz or
2560 x 1600 @ 60Hz with 2 memory installed
Max. resolution via eDP:
2560 x 1440 @ 60Hz with 2 memory installed
Audio
Realtek ALC255 controller
Supports 2/4/5.1/7.1 channel configurations via HDMI
Supports 2/4/5.1/7.1 channel configurations via HDMI
SATA
1 x SATA 6Gb/s port
Expansion Slots
1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
1 x Half-size Mini-PCIe slot (for WiFi+BT module)
WiFi & 3G wireless module in option
Internal I/O
1 x SIM card slot
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header
1 x 12V power connector
1 x SATA 6Gb/s with power connector
1 x 80H connector
1 x eDP connector
1 x USB 2.0 header
2 x Serial headers
1 x 8-pin GPIO connector
1 x SPI header
1 x TPM header
1 x 5V power header
1 x Power LED header
1 x I2C & SMbus header
Rear I/O
1 x DC-in
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
2 x HDMI v1.4b
2 x RJ45
4 x USB 3.0
1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) 1 x SDXC card slot
1 x Line-out / MIC-in
*[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
TPM
TPM header
OS Supported
Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Content
1 X MZBSWIP
Ordering Information
9MZBSWIPNR-SI
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
40 units per carton
Packaging dimensions: 527 x 348 x 211 mm
NOTE: Default shipping configuration is motherboard only without heatsink, please contact region sales if heatsink is needed
