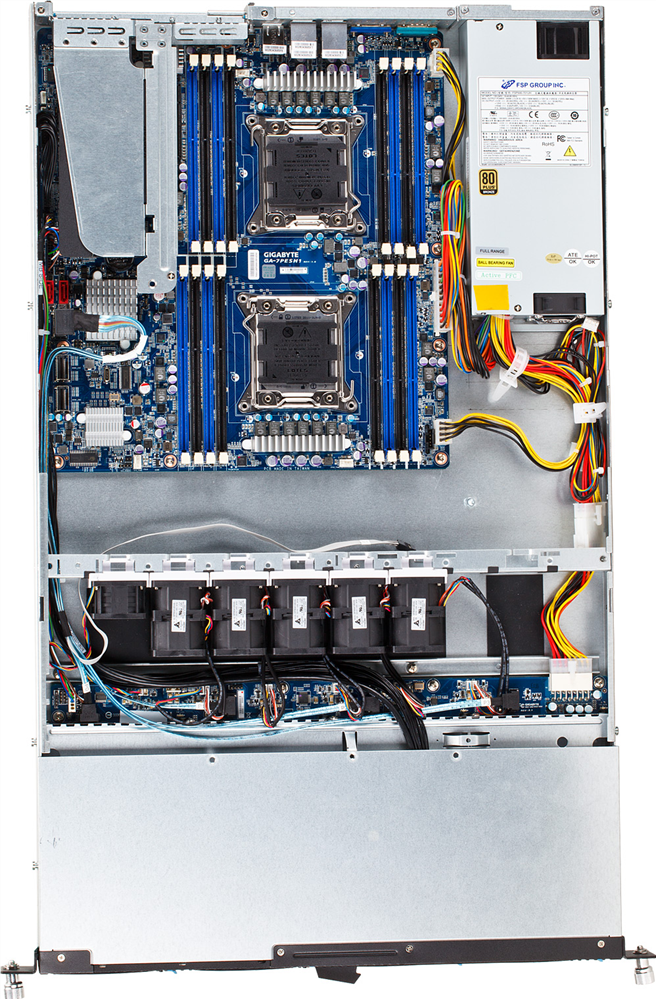

GS-R12P4PLegacy | Software updates supported
Dual Socket 1U Rackmount Server
- Dual sockets 1U rack server based on Intel® Xeon® processor E5-2600 product family
- 16 x RDIMM/UDIMM ECC DIMM slots, Quad channel memory 1066/1333/1600 MHz
- 4 x 3.5" hot-swappable HDD bays
- Supports PCI Express Gen3
- Supports SATA III 6Gb/s and SAS 6Gb/s
- High end dual GbE Ethernet controller
Specifications
Motherboard
GA-7PESH1
CPU
Dual LGA2011 Socket
Supports Intel® Xeon® processor E5-2600 & 2600 V2 product families
Supports Intel® Xeon® processor E5-2600 & 2600 V2 product families
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® C602
Memory
16 x DIMM slots support Registered or ECC Unbuffered memory
Quad channel memory architecture
Up to 512GB RDIMM ECC
Up to 128GB UDIMM ECC
1066/1333/1600 MHz
Quad channel memory architecture
Up to 512GB RDIMM ECC
Up to 128GB UDIMM ECC
1066/1333/1600 MHz
LAN
Dual Gigabit Ethernet LAN ports (Intel® I350)
1 x Management LAN
Video
Integrated in Aspeed 2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
4 x 3.5" hot-swappable HDD bays
Supports:
Supports:
- SATA 3.0 6Gb/s
- SATA 2.0 3Gb/s
- SAS 2.0 6Gb/s
RAID
Intel® SW RAID 0/1/5/10
LSI® SAS2008 IR RAID 0/1/1E/10
LSI® SAS2008 IR RAID 0/1/1E/10
Expansion Slots
1 x Low profile PCIe x16 (@Gen3 x16 bus) slot
Front I/O
2 x USB 2.0 ports
Rear I/O
4 x USB 2.0 ports
1 x VGA connector
1 x COM port
3 x RJ45 port
1 x VGA connector
1 x COM port
3 x RJ45 port
Power Supply[#1]
1 x Fixed 600W PSU 80 PLUS Gold
100~220V AC
100~220V AC
System Management
Aspeed 2300
IPMI 2.0
iKVM
iKVM
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
