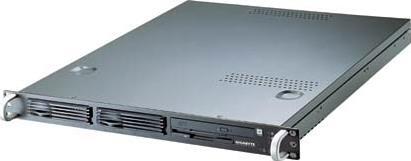

GS-SR101Legacy | Software updates supported
- Dual Intel® Socket 370 processors up to 1GHz
- IDE Hot Swap
- Dual Intel 10/100 LAN
Specifications
CPU
- Dual Intel® Pentium Ⅲ processors up to 1 GHz
Chipset
- VIA Apollo Pro Family AGP Set
- North Bridge：VT82C694x
- South Bridge：VT82C686A
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82559）Supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN（WOL）
Video
- ATI Rage XL with 8MB memory
RAID
- RAID 0,1 Supported
Expansion Slots
- One 32bit/33MHz Full Size PCI Slot
Power Supply[#1]
- 250W ; 90V~250V ; 47~63Hz
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
