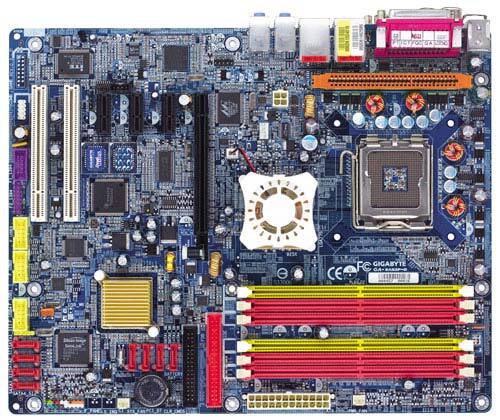

GA-8ANXP-D (rev. 1.x)
- Supports LGA775 Intel® Pentium® 4 processor FSB800 with HT technology
- Supports Dual Channel DDR2 533/400 memory up to 4GB
- Experience revolutionary graphics with the new PCI-Express x16 interface
- Features GIGABYTE patented U-Plus D.P. S.
- Features dual Gigabit Ethernet port connection
- Features PCI-Express x1, Serial-ATA, and IEEE1394b interfaces
- IEEE 802.11 b/g Wireless LAN card included
IntroductionGA-8GNXP-D the flagship motherboard for GIGABYTE 8Σ series offers a complete range of features dedicated to satisfying all computing needs. Experience next-generation processing with the latest LGA 775 Intel® Pentium® 4 Processor with Hyper-Threading Technolgy! The GA-8GNXP-D supports DDR2 main memory. Along with enhanced performance is additional system stability with the GIGABYTE Universal Plus Dual Power System (U-Plus D.P.S.). U-Plus D.P.S. is a revolutionary eight-phase power circuit designed to withstand varying electrical current levels, ensuring future processor upgrades.
The GA-8GNXP-D provides an broad range of peripheral connections by offering IEEE 1394b and USB 2.0 for high-speed data transfer, and high speed Serial ATA for connection of storage devices. The GA-8GNXP-D also offers multimedia advancements through PCI-Express for outstanding graphics output, doubling that of the current AGP8X interface. For improved networking, Dual Gigabit LAN provides simultaneous WAN and LAN connection at a blazing fast network connection speed of up to 1,000 Mbps for both network types. Along with top-notch hardware is the addition of the GIGABYTE Shieldware. Shieldware includes 8 unique software feature elements that are easy to use and focused on making computing both simple and straightforward. Finally to round off the GA-8GNXP-D is home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
Intel® 925X Express ChipsetThe new Intel® 925X Express chipset with Hyper-Threading Technology delivers significant perfomance gains with variety of new generation architectures including dual-channel DDR2 main memory, PCI-Express inteface, Serial-ATA interface for improving storage performance.
Supports LGA 775 Intel®Pentium® 4 Processor with HT TechnologyWith new 90nm technology, the world's most advanced chip-making process, it delivers significant gains in performance through the combination of lower-power transistors, strained silicon, high-speed copper interconnects and a new low-k dielectric material.
Dual Channel DDR2 533 Memory Architecture with ECC SupportThe new DDR2 main memory architecture delivers maximum bandwidth of 8.5GB/s in dual channel mode, providing highest performance for high memory resource demand applications.
PCI Express InterfaceRevolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
GIGABYTE Patented Technology Universal-Plus Dual Power System 2 (U-Plus D.P.S.)U-Plus D.P.S. is a revolutionary eight-phase power circuit designed to withstand varying electrical current levels, ensuring future processor upgrades.
Experience Wireless Connectivity Out From the BoxGet connected wireless or serve as an wireless AP station, sharing digital content seamlessly among other wireless devices. Enjoy high-speed connectivity up to 54Mbps with IEEE 802.11g standard.
Dual Gigabit LAN connectivityThe dual Gigabit LAN with Teaming function allows the 2 single network connections to act as one for twice the bandwidth, further to improve overall throughput with lower CPU utilization and also provide new generation connectivity for the broadband era. It is able to prevent network downtime by transferring the workload from a failed port to a working port.
(Note) To enable Teaming or Bonding (IEEE 802.3ad Link Aggregation) feature, it is required the connected network switch or router device supports the IEEE 802.3ad LACP standard. Please refer to your network switch or router device manual for further details.
IEEE 1394b Firewire InterfaceThis motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
Serial ATA InterfaceSerial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
GIGABYTE Patent DualBIOS™GIGABYTE patented DualBIOS™ technology protects BIOS from virus. With the innovative backup BIOS design, this platform provides a double security thus assuring the PC stability.
Intel High Definition AudioExperience home theater-quality sound with your PC using Intel® High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability.
GIGABYTE ShieldWareA solid pack of unique software features focused on performing important system essentials with speed and ease. Find out what these great features can do for your system!
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
