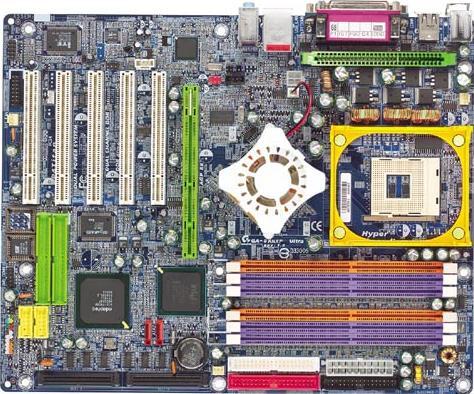

GA-8KNXP Ultra (Rev. 1.x)

Rev. 1.xRev. 2.x
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Pentium® 4 Processor
  • Front Side Bus
    1. 800 / 533 / 400 MHz FSB
  • Chipset
    1. Northbridge : Intel® 875P MCH
    2. Southbridge : Intel® ICH5R
    3. Integrated Peripherals :
      1. Adaptec Ultra320 SCSI chip
      2. Intel® CSA interface Gigabit Ethernet Controller
      3. GigaRAID controller chip
      4. Realtek ALC655 CODEC
  • Memory
    1. Type: Dual Channel DDR 400 / 333 / 266 ECC support
    2. Max capacity: 4 GB (Please read FAQ for further information)
    3. DIMM slots: 6 *
    *Note: Through GIGABYTE innovation of supporting 6 DIMMS memory on Intel chipset motherboard. However, due to chipset limitations there will be a frequency downgrade of memory modules when 6 DIMMs are fully loaded.
  • Expansion Slots
    1. 1 x AGP Pro slot
    2. 5 x PCI slots (PCI 2.3 compliant)
    3. 1 x DPS slot
  • Internal I/O Connectors
    1. 2 x Serial ATA
    2. 2 x SCSI connector
    3. 2 x USB 2.0 (Support 4 ports by cable)
    4. 1 x S/P-DIF input/output pin header
    5. 1 x FDD
    6. 2 x UltraDMA 133/100/66 Bus Master IDE (For HDDs only)
    7. 2 x UltraDMA 100/66 Bus Master IDE
    8. CD/AUX in
    9. 1 x Game port pin header
  • Back Panel Connectors
    1. 4 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT port
    4. 2 x COM ports
    5. 3 x Audio ports (Line-in / Line-out / MIC)
    6. 2 x PS/2 ports(Keyboard/Mouse)
    • H/W Monitoring
      1. ITE 8712F
      2. System health status auto-detect and report by BIOS
      3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
    • BIOS
      1. 2 x 4M bit flash ROM, Award BIOS
    • Bundled Software
      1. Norton Internet Security 2003
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Norton™ Spam Alert
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
    • Form Factor
      1. ATX
      2. 30.5cm x 24.4cm
    • Driver
      1. Intel® chipset software installation utility
      2. Adaptec Ultra320 SCSI driver
      3. GigaRAID IDE RAID driver
      4. Intel® RAID Driver
      5. Intel® PRO/1000 CT LAN driver
      6. REALTEK audio driver
      7. USB2.0 driver
    • Other Features
      1. Xpress Install
      2. Xpress Recovery
      3. Smart Fan
      4. EasyTune™ 4
      5. @BIOS
      6. Q-Flash™
      7. Multi Language BIOS
    • CPU
      1. Socket 478 for Pentium® 4 Processor
    • Front Side Bus
      1. 800 / 533 / 400 MHz FSB
    • Chipset
      1. Northbridge : Intel® 875P MCH
      2. Southbridge : Intel® ICH5R
      3. Integrated Peripherals :
        1. Adaptec Ultra320 SCSI chip
        2. Intel® CSA interface Gigabit Ethernet Controller
        3. GigaRAID controller chip
        4. Realtek ALC655 CODEC
    • Memory
      1. Type: Dual Channel DDR 400 / 333 / 266 ECC support
      2. Max capacity: 4 GB (Please read FAQ for further information)
      3. DIMM slots: 6 *
      *Note: Through GIGABYTE innovation of supporting 6 DIMMS memory on Intel chipset motherboard. However, due to chipset limitations there will be a frequency downgrade of memory modules when 6 DIMMs are fully loaded.
    • Expansion Slots
      1. 1 x AGP Pro slot
      2. 5 x PCI slots (PCI 2.3 compliant)
      3. 1 x DPS slot
    • Internal I/O Connectors
      1. 2 x Serial ATA
      2. 2 x SCSI connector
      3. 2 x USB 2.0 (Support 4 ports by cable)
      4. 1 x S/P-DIF input/output pin header
      5. 1 x FDD
      6. 2 x UltraDMA 133/100/66 Bus Master IDE (For HDDs only)
      7. 2 x UltraDMA 100/66 Bus Master IDE
      8. CD/AUX in
      9. 1 x Game port pin header
    • Back Panel Connectors
      1. 4 x USB 2.0 ports
      2. 1 x RJ45 LAN port
      3. 1 x LPT port
      4. 2 x COM ports
      5. 3 x Audio ports (Line-in / Line-out / MIC)
      6. 2 x PS/2 ports(Keyboard/Mouse)
      • H/W Monitoring
        1. ITE 8712F
        2. System health status auto-detect and report by BIOS
        3. Hardware detecting and reporting for case open, power-in voltage, CPU voltage, and fan speed.
      • BIOS
        1. 2 x 4M bit flash ROM, Award BIOS
      • Bundled Software
        1. Norton Internet Security 2003
          1. Norton Anti Virus™
          2. Norton™ Personal Firewall
          3. Norton™ Privacy Control
          4. Norton™ Parental Control
          5. Norton™ Spam Alert
        2. GIGABYTE Windows Utility Manager
        3. Adobe Acrobat Reader
      • Form Factor
        1. ATX
        2. 30.5cm x 24.4cm
      • Driver
        1. Intel® chipset software installation utility
        2. Adaptec Ultra320 SCSI driver
        3. GigaRAID IDE RAID driver
        4. Intel® RAID Driver
        5. Intel® PRO/1000 CT LAN driver
        6. REALTEK audio driver
        7. USB2.0 driver
      • Other Features
        1. Xpress Install
        2. Xpress Recovery
        3. Smart Fan
        4. EasyTune™ 4
        5. @BIOS
        6. Q-Flash™
        7. Multi Language BIOS

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
