R182-Z92

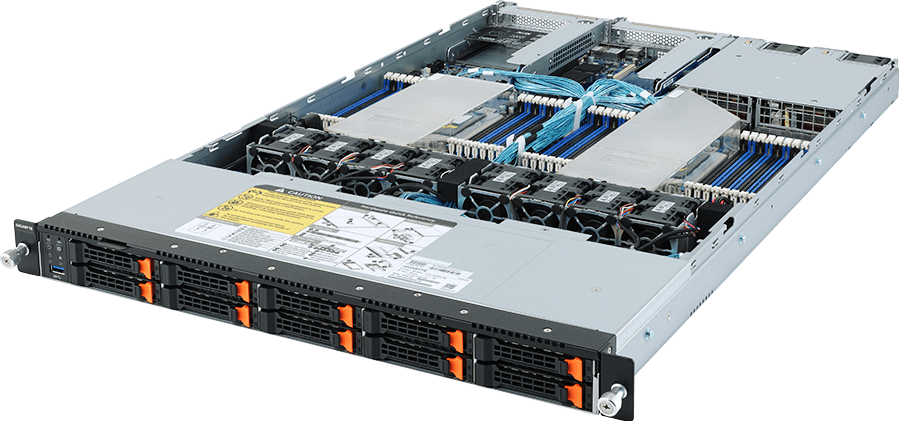

Rack Server - AMD EPYC™ 7003/7002 - 1U DP 10-Bay Gen3 NVMe
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- Dual AMD EPYC™ 7003 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 10 x 2.5" Gen3 NVMe hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 2 x FHHL PCIe Gen4 x16 slots
- 1 x OCP NIC 3.0 PCIe Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x8 mezzanine slot
- 1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
- 1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
- 1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 730
438 x 43.5 x 730
Motherboard
MZ92-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7002 Series Processors
Dual processor, cTDP up to 240W
- At 30°C ambient, cTDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s [1]
[1] Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
10 x 2.5" Gen3 NVMe
- (4 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Internal M.2:
1 x M.2 (2242/2260/2280/22110), PCIe Gen3 x4, from CPU_0 [1]
[1] CPU TDP is limited to 225W when using M.2 drives.
10 x 2.5" Gen3 NVMe
- (4 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Internal M.2:
1 x M.2 (2242/2260/2280/22110), PCIe Gen3 x4, from CPU_0 [1]
[1] CPU TDP is limited to 225W when using M.2 drives.
SAS
N/A
RAID
Require RAID add-in cards
PCIe Expansion Slots
Riser Card CRS101E x 2:
- 1 x FHHL x16 (Gen4 x16), from CPU_0
- 1 x FHHL x16 (Gen4 x16), from CPU_1
1 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Supports NCSI function
1 x OCP 2.0 mezzanine (Gen3 x8)(Type1, P1, P2), from CPU_1
- Supports NCSI function
- 1 x FHHL x16 (Gen4 x16), from CPU_0
- 1 x FHHL x16 (Gen4 x16), from CPU_1
1 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Supports NCSI function
1 x OCP 2.0 mezzanine (Gen3 x8)(Type1, P1, P2), from CPU_1
- Supports NCSI function
Front I/O
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4
PCIe Gen3 x4
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 1200W 80 PLUS Platinum redundant power supplies (-A00)
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
1+1 1300W 80 PLUS Platinum redundant power supplies (-B00)
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 6.5A
DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
1+1 1300W 80 PLUS Titanium redundant power supplies (-AT0)
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1300W/ 200-240V~ or 240Vdc Input
+12.2V/ 106A
+12.2Vsb/ 3A
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 13 kg
Gross Weight: 22 kg
Gross Weight: 22 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R182-Z92
2 x CPU heatsinks
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR182Z92MR-00-A*/B*
- Motherboard: 9MZ92FS0NR-00*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A3: 9CBP10A3NR-00*
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101E: 9CRS101ENR-00*
- NVMe HBA - CNVP141: 9CNVP141NR-00*
- Power supply (-A00): 25EP0-212008-D0S
- Power supply (-B00): 25EP0-21300B-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
- Motherboard: 9MZ92FS0NR-00*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Backplane board - CBP10A3: 9CBP10A3NR-00*
- Fan module: 25ST2-44562G-D0R
- Riser card - CRS101E: 9CRS101ENR-00*
- NVMe HBA - CNVP141: 9CNVP141NR-00*
- Power supply (-A00): 25EP0-212008-D0S
- Power supply (-B00): 25EP0-21300B-F3S
- Power supply (-AT0): 25EP0-21300C-G1S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
