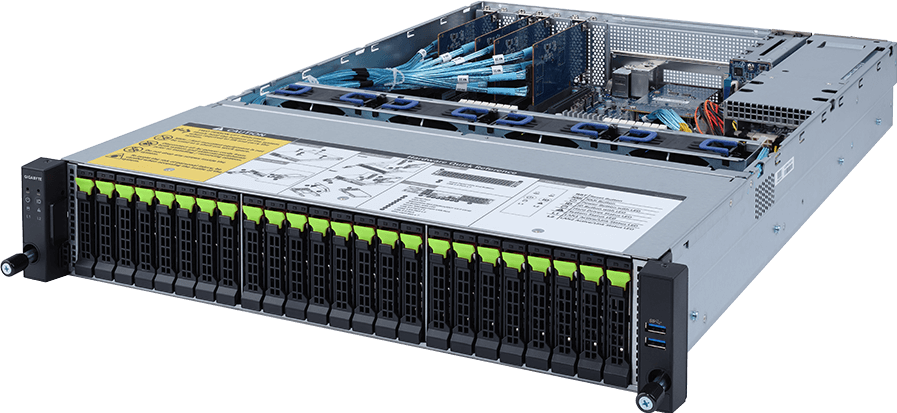

Rack Server - AMD EPYC™ 7003/7002 - 2U UP 24+2-Bay Gen4 NVMe/SATA/SAS
- Hardware-level root of trust support
- Supports GRAID SupremeRAID NVMe/NVMe-oF RAID Card
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 24 x 2.5" Gen4 NVMe hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 1 x LP PCIe Gen4 x8 slot
- 1+1 1200W 80 PLUS Platinum redundant power supplies
Specifications
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
438 x 87.5 x 660
Motherboard
MZ32-AR1 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
24 x 2.5" Gen4 NVMe hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Expansion Slots
Total 1 x PCIe Gen4 low-profile slot
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3134, 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVP143, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_3: 1 x PCIe x16 (Gen4 x16) slot, occupied by CNV3134, 4 x NVMe HBA
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot, disabled
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, occupied by CNV3134, 4 x NVMe HBA
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16, occupied by CNVP143, 4 x NVMe HBA
2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O7: PCIe Gen4 x4
Rear side - CBP2023: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O7: PCIe Gen4 x4
Rear side - CBP2023: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 1200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 17.78 kg
Gross Weight: 24.76 kg
Gross Weight: 24.76 kg
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z34
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z34MR-00-A*
- Motherboard: 9MZ32AR1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O7: 9CBP20O7NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- PCIe NVMe Card - CNV3134: 9CNV3134NR-00
- OCP NVMe Card - CNVP143: 9CNVP143NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply: 25EP0-212008-D0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z34SR-RMA-A100
- Motherboard: 9MZ32AR1NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O7: 9CBP20O7NR-00
- Backplane board - CBP2023: 9CBP2023NR-00
- PCIe NVMe Card - CNV3134: 9CNV3134NR-00
- OCP NVMe Card - CNVP143: 9CNVP143NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply: 25EP0-212008-D0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- GRAID SupremeRAID Core Software Module License
a) SupremeRAID License: 25FC1-SRBUN3-AFS (12-native NVMe RAID)
b) SupremeRAID License: 25FC1-SRBUN0-AFS (32-native NVMe RAID)
- RMA packaging: 6NR272Z34SR-RMA-A100
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
