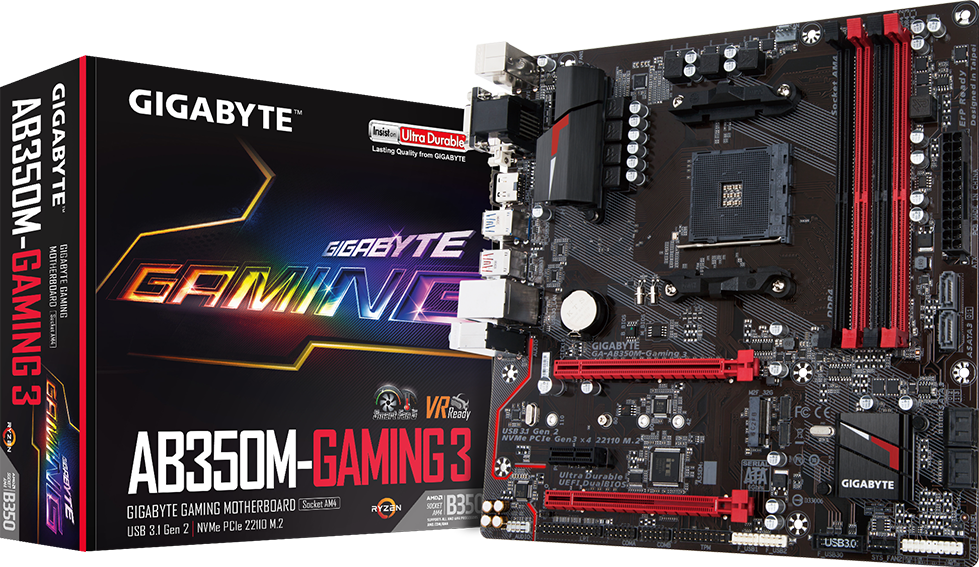

GA-AB350M-Gaming 3 (Rev. 1.x)

AMD B350 Chipset
Key FeaturesSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • Procesor
    1. AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
    (Please refer "CPU Support List" for more information.)
    Note: If the motherboard PCB is rev1.0, please must check “Support-> FAQ” for more information.
  • Čipset
    1. AMD B350
  • Memorija
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
      * Support for higher than DDR4 2667 MHz may vary by CPU.
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Integrisana grafika
  • Integrated Graphics Processor:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Support for up to 3 displays at the same time
    Maximum shared memory of 2 GB

    * Actual support may vary by CPU.
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Slotovi za proširenje
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * Actual support may vary by CPU.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Interfejs za skladištenje podataka
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
      * Actual support may vary by CPU.
    2. 6 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • USB
  • Chipset:
    1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
    3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    CPU:
    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Interni I/O konektori
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.1 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module (TPM) header
    13. 2 x serial port headers
    14. 1 x parallel port header
    15. 1 x Clear CMOS jumper
  • Zadnji panel I/O
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 4 x USB 3.1 Gen 1 ports
    6. 2 x USB 3.1 Gen 2 Type-A ports (red)
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O kontroler
    1. iTE® I/O Controller Chip
  • H/W nadgledanje
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Ostale mogućnosti
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      AutoGreen
      Ambient LED
      BIOS Setup
      Cloud Station
      Color Temperature
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Softver u paketu
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operativni sistem
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Veličina
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Napomena
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. AM4 Socket: Supports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
      (Please refer "CPU Support List" for more information.)
      Note: If the motherboard PCB is rev1.0, please must check “Support-> FAQ” for more information.
    • Čipset
      1. AMD B350
    • Memorija
      1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      2. Dual channel memory architecture
      3. Support for DDR4 3200(O.C.)/2933(O.C.)/2667*/2400/2133 MHz memory modules
        * Support for higher than DDR4 2667 MHz may vary by CPU.
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Integrisana grafika
    • Integrated Graphics Processor:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
        * Support for HDMI 1.4 version.
      Support for up to 3 displays at the same time
      Maximum shared memory of 2 GB

      * Actual support may vary by CPU.
    • Audio
      1. Realtek® ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Slotovi za proširenje
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        * Actual support may vary by CPU.
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      3. 1 x PCI Express x1 slot
        (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
    • Interfejs za skladištenje podataka
      1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4*/x2 SSD support)
        * Actual support may vary by CPU.
      2. 6 x SATA 6Gb/s connectors
      3. Support for RAID 0, RAID 1, and RAID 10
        * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    • USB
    • Chipset:
      1. 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel
      2. 2 x USB 3.1 Gen 1 ports (available through the internal USB header)
      3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      CPU:
      1. 4 x USB 3.1 Gen 1 ports on the back panel
    • Interni I/O konektori
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x M.2 Socket 3 connector
      4. 6 x SATA 6Gb/s connectors
      5. 1 x CPU fan header
      6. 2 x system fan headers
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x S/PDIF Out header
      10. 1 x USB 3.1 Gen 1 header
      11. 2 x USB 2.0/1.1 headers
      12. 1 x Trusted Platform Module (TPM) header
      13. 2 x serial port headers
      14. 1 x parallel port header
      15. 1 x Clear CMOS jumper
    • Zadnji panel I/O
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 4 x USB 3.1 Gen 1 ports
      6. 2 x USB 3.1 Gen 2 Type-A ports (red)
      7. 2 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks (Line In, Line Out, Mic In)
    • I/O kontroler
      1. iTE® I/O Controller Chip
    • H/W nadgledanje
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Overheating warning
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the fan you install.
    • BIOS
      1. 2 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Ostale mogućnosti
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        3D OSD
        AutoGreen
        Ambient LED
        BIOS Setup
        Cloud Station
        Color Temperature
        EasyTune
        Fast Boot
        Game Boost
        ON/OFF Charge
        Smart Backup
        Smart Keyboard
        Smart TimeLock
        System Information Viewer
        USB Blocker
        V-Tuner
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Softver u paketu
      1. Norton® Internet Security (OEM version)
      2. cFosSpeed
    • Operativni sistem
      1. Support for Windows 10 64-bit
      2. Support for Windows 7 64-bit
        * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
        * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
    • Veličina
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Napomena
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
