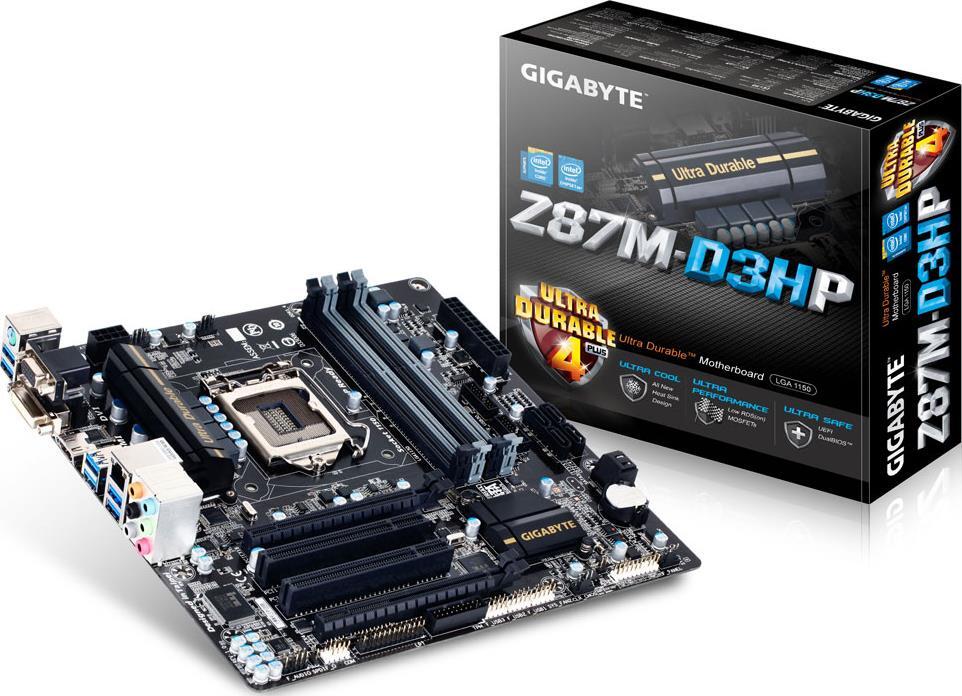

GA-Z87M-D3HP (Rev. 1.x)

Intel® Z87 Chipset
OverviewSpecificationsSupportNews & AwardsLearn MoreWhere to Buy

Specifications

  • Procesor
    1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Čipset
    1. Intel® Z87 Express Chipset
  • Memorija
    1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
    4. Support for non-ECC memory modules
    5. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Integrisana grafika
  • Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
      * Support for HDMI 1.4a version.
    4. Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Slotovi za proširenje
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      (The PCIEX4 slot conforms to PCI Express 2.0 standard.)

    3. 2 x PCI slots
  • Tehnologije za rad sa više grafičkih karti
    1. Support for AMD CrossFire™ technology
  • Interfejs za skladištenje podataka
  • Chipset:
    1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
    2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • USB
  • Chipset:
    1. Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
    2. Up to 6 USB 2.0/1.1 ports (available through the internal USB headers)
    Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
    1. Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
  • Interni I/O konektori
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 6 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 2 x USB 3.0/2.0 headers
    10. 3 x USB 2.0/1.1 headers
    11. 1 x serial port header
    12. 1 x parallel port header
    13. 1 x Trusted Platform Module (TPM) header
    14. 1 x Clear CMOS jumper
  • Zadnji panel I/O
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 6 x USB 3.0/2.0 ports
    6. 1 x RJ-45 port
    7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
  • I/O kontroler
    1. iTE® I/O Controller Chip
  • H/W nadgledanje
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI EFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Ostale mogućnosti
    1. Support for Q-Flash
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      EasyTune
      @BIOS
      EZ Setup
      USB Blocker
      Smart TimeLock
    4. Support for ON/OFF Charge
  • Softver u paketu
    1. Norton Internet Security (OEM version)
    2. Intel® Rapid Start Technology
    3. Intel® Smart Connect Technology
    4. Intel® Smart Response Technology
  • Operativni sistem
    1. Support for Windows 10/8.1/8/7
  • Veličina
    1. Micro ATX Form Factor; 24.4cm x 24.4cm
  • Napomena
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesor
      1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
      2. L3 cache varies with CPU
      (Please refer "CPU Support List" for more information.)
    • Čipset
      1. Intel® Z87 Express Chipset
    • Memorija
      1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory
        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      2. Dual channel memory architecture
      3. Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
      4. Support for non-ECC memory modules
      5. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Integrisana grafika
    • Integrated Graphics Processor - Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
        * Support for HDMI 1.4a version.
      4. Maximum shared memory of 1 GB
    • Audio
      1. Realtek® ALC892 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
      4. Support for S/PDIF Out
    • LAN
      1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    • Slotovi za proširenje
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

      2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
        (The PCIEX4 slot conforms to PCI Express 2.0 standard.)

      3. 2 x PCI slots
    • Tehnologije za rad sa više grafičkih karti
      1. Support for AMD CrossFire™ technology
    • Interfejs za skladištenje podataka
    • Chipset:
      1. 6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
      2. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    • USB
    • Chipset:
      1. Up to 2 USB 3.0/2.0 ports (available through the internal USB header)
      2. Up to 6 USB 2.0/1.1 ports (available through the internal USB headers)
      Chipset + 2 Renesas® uPD720210 USB 3.0 Hubs:
      1. Up to 8 USB 3.0/2.0 ports (6 ports on the back panel, 2 ports available through the internal USB header)
    • Interni I/O konektori
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 6 x SATA 6Gb/s connectors
      4. 1 x CPU fan header
      5. 3 x system fan headers
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x S/PDIF Out header
      9. 2 x USB 3.0/2.0 headers
      10. 3 x USB 2.0/1.1 headers
      11. 1 x serial port header
      12. 1 x parallel port header
      13. 1 x Trusted Platform Module (TPM) header
      14. 1 x Clear CMOS jumper
    • Zadnji panel I/O
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 6 x USB 3.0/2.0 ports
      6. 1 x RJ-45 port
      7. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
    • I/O kontroler
      1. iTE® I/O Controller Chip
    • H/W nadgledanje
      1. System voltage detection
      2. CPU/System temperature detection
      3. CPU/System fan speed detection
      4. CPU/System overheating warning
      5. CPU/System fan fail warning
      6. CPU/System fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Ostale mogućnosti
      1. Support for Q-Flash
      2. Support for Xpress Install
      3. Support for APP Center
        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
        EasyTune
        @BIOS
        EZ Setup
        USB Blocker
        Smart TimeLock
      4. Support for ON/OFF Charge
    • Softver u paketu
      1. Norton Internet Security (OEM version)
      2. Intel® Rapid Start Technology
      3. Intel® Smart Connect Technology
      4. Intel® Smart Response Technology
    • Operativni sistem
      1. Support for Windows 10/8.1/8/7
    • Veličina
      1. Micro ATX Form Factor; 24.4cm x 24.4cm
    • Napomena
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
