GS-R22PDCLegacy | Software updates supported

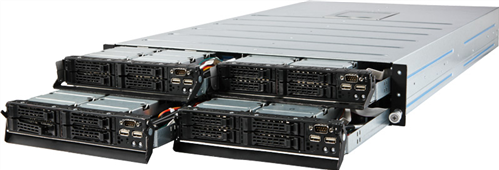

2U 4 Nodes High Density Rack Server
- 2U - 4 nodes high density rack with front access to the node trays
- Intel® Xeon® processor E5-2400 product family
- 8 x LGA 1356 sockets
- Intel® C602 chipset
- 48 x DDR3 ECC slots
- 4 x Dual GbE LAN + management LAN
- 16 x 2.5” HDD bays (hot-swappable)
- Overview
- Specifications
- Support
- Related Resources
Specifications
Motherboard
GA-7PTSV
Mounted in front-access drawers
Mounted in front-access drawers
CPU
Per node:
2 x LGA1356 sockets
Supports Intel® Xeon® processor E5-2400 product family
2 x LGA1356 sockets
Supports Intel® Xeon® processor E5-2400 product family
Chipset
Per node:
Intel® C602
Intel® C602
Memory
Per node:
12 x DIMM slots support Registered or ECC Unbuffered memory
Up to 384GB RDIMM ECC
Up to 96GB UDIMM ECC
Total:
48 x DIMM slots support Registered or ECC Unbuffered memory
Up to 1536GB RDIMM ECC
Up to 384GB UDIMM ECC
1066/1333/1600 MHz
12 x DIMM slots support Registered or ECC Unbuffered memory
Up to 384GB RDIMM ECC
Up to 96GB UDIMM ECC
Total:
48 x DIMM slots support Registered or ECC Unbuffered memory
Up to 1536GB RDIMM ECC
Up to 384GB UDIMM ECC
1066/1333/1600 MHz
LAN
Per node:
Dual Gigabit Ethernet LAN ports (Broadcom® BCM5720)
1 x Management LAN
Dual Gigabit Ethernet LAN ports (Broadcom® BCM5720)
1 x Management LAN
Video
Per node:
Integrated in Aspeed 2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Integrated in Aspeed 2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Per node:
4 x 2.5" hot-swappable HDD bays
Total:
16 x 2.5" hot-swappable HDD bays
Supports:
4 x 2.5" hot-swappable HDD bays
Total:
16 x 2.5" hot-swappable HDD bays
Supports:
- SATA 3Gb/s and 6Gb/s connections
- SAS 3Gb/s and 6Gb/s connections via upgrade ROM
RAID
Intel® RAID 0/1/5/10
Expansion Slots
Per node:
1 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slot
1 x Low profile PCIe x16 (@Gen3 x16 bus) slot
Total:
4 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slots
4 x Low profile PCIe x16 (@Gen3 x16 bus) slots
1 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slot
1 x Low profile PCIe x16 (@Gen3 x16 bus) slot
Total:
4 x Mezzanine I/F PCIe x8 (@Gen3 x8 bus) slots
4 x Low profile PCIe x16 (@Gen3 x16 bus) slots
Front I/O
Per node:
1 x COM port
2 x USB 2.0 ports
1 x Power Button with LED
1 x ID Switch with LED
Total:
4 x COM port
8 x USB 2.0 ports
4 x Power Button with LED
4 x ID Switch with LED
1 x COM port
2 x USB 2.0 ports
1 x Power Button with LED
1 x ID Switch with LED
Total:
4 x COM port
8 x USB 2.0 ports
4 x Power Button with LED
4 x ID Switch with LED
Rear I/O
Per node:
1 x COM port
1 x D-Sub port
3 x RJ45
2 x USB 2.0 ports
Total:
4 x COM port
4 x D-Sub port
12 x RJ45
8 x USB 2.0 ports
1 x COM port
1 x D-Sub port
3 x RJ45
2 x USB 2.0 ports
Total:
4 x COM port
4 x D-Sub port
12 x RJ45
8 x USB 2.0 ports
Power Supply[#1]
2 x 750W 1+1 redundant PSU
80 PLUS Gold
Supports PMBus 1.1
80 PLUS Gold
Supports PMBus 1.1
System Management
Aspeed 2300
IPMI 2.0
iKVM
iKVM
OS Compatibility
VMware vSphere 5.1
VMware ESXi 5.0
VMware ESXi 5.0 U1
VMware ESXi 5.1
Windows Server 2008 SP2 (32bit)
Windows Server 2008 SP2 (64bit)
Windows Server 2008 R2 SP1 (64bit)
Red Hat ELES 6 Update1 x86 (32bit)
Red Hat ELES 6 Update1 x64 (64bit)
SuSE ES 11.1 x86 (32bit)
SuSE ES 11.1 x64 (64bit)
VMware ESXi 5.0
VMware ESXi 5.0 U1
VMware ESXi 5.1
Windows Server 2008 SP2 (32bit)
Windows Server 2008 SP2 (64bit)
Windows Server 2008 R2 SP1 (64bit)
Red Hat ELES 6 Update1 x86 (32bit)
Red Hat ELES 6 Update1 x64 (64bit)
SuSE ES 11.1 x86 (32bit)
SuSE ES 11.1 x64 (64bit)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
