CRAO338

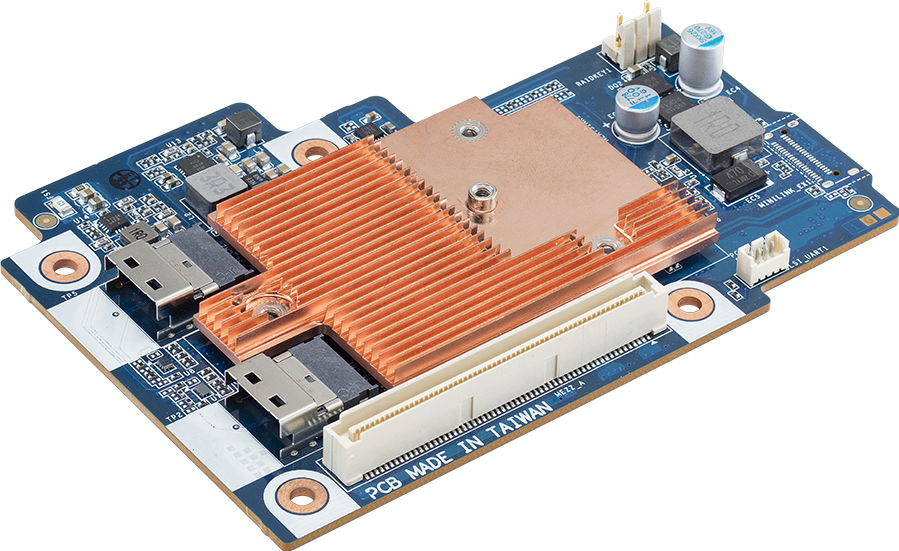

Broadcom SAS3008 RAID Card
Broadcom SAS3008 OCP type software RAID Card
- 2 x SlimSAS ports up to 8 x SAS 12Gb/s ports
- Up to 14 x physical devices supported via SAS expander
- Broadcom® SAS3008 controller
- RAID 0/1/1E/10
- PCIe 3.0 x8 bus
- OCP Form Factor (Type1)
Specifications
Ports
2 x SlimSAS ports up to 8 x SAS 12Gb/s ports
Up to 14 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Up to 14 x physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3008
RAID
RAID 0/1/1E/10
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
Up to 512 physical devices supported if non-used Integrated RAID function
Integrated RAID (IR)
- 14 spread across 2 volumes
RAID 0 10 per volume
RAID 1 2 per volume
RAID 1E 10 per volume
RAID 10 10 per volume
Up to 512 physical devices supported if non-used Integrated RAID function
Interface
PCIe 3.0 x8 bus
Dimensions
110.85 x 78 mm
Format
OCP mezzanine (Type1)
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CRAO338NR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
