R270-T65Legacy | Software updates supported

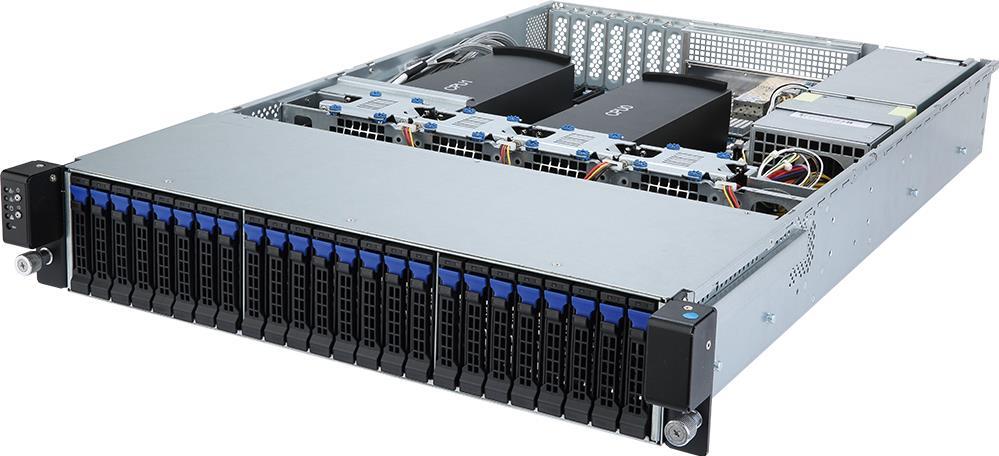

2U ARM Rackmount Server
- Supports blockchain infrastructure
- 2 x Marvell® ThunderX® 48-core ARM processors
- 16 x DDR4 DIMM slots
- 3 x 40GbE QSFP+ LAN ports
- 4 x 10GbE SFP+ LAN ports
- 24 x 2.5” hot-swappable HDD/SSD bays
- 750W 80 PLUS Gold redundant PSU
Specifications
Dimensions (WxHxD, mm)
2U
430 x 87 x 710 mm
Motherboard
MT60-SC5
CPU
Marvell® ThunderX® family
2 x ThunderX_ST™ processors
64bit ARMv8 architecture
48 cores per processor, 2.0GHz
BGA 2601, 28nm technology
2 x ThunderX_ST™ processors
64bit ARMv8 architecture
48 cores per processor, 2.0GHz
BGA 2601, 28nm technology
Chipset
-
Memory
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
LAN
3 x 40GbE QSFP+ LAN ports
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
4 x 10Gb/s SFP+ LAN ports
1 x 10/100/1000 management LAN port
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
24 x 2.5" hot-swappable HDD bays
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS
-
RAID
Depends on OS RAID
Peripheral Drives
-
Expansion Slots
1 x PCIe x8 slot (Gen3 x8 bus) from CPU1
1 x PCIe x16 slot (Gen3 x4 bus) from CPU0
2 x PCIe x8 slots are without funciton
All PCIe slots support low profile HBAs
1 x PCIe x16 slot (Gen3 x4 bus) from CPU0
2 x PCIe x8 slots are without funciton
All PCIe slots support low profile HBAs
Internal I/O
1 x 24-pin main power connector
2 x 8-pin power connectors
2 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector
2 x 8-pin power connectors
2 x CPU fan header
5 x System fan headers
1 x USB 3.0 header
1 x COM2 header
1 x SATA SGPIO header
1 x Front panel headers
1 x back plane board header
1 x PMBUS header
1 x BMC JTAG header
1 x JTAG PLD header
1 x BMC reset header
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x IPMB connector
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs(Dedicated for 10Gb/s SFP+ LAN ports)
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs(Dedicated for 10Gb/s SFP+ LAN ports)
Rear I/O
1 x ID button with LED
2 x USB 3.0
1 x VGA
1 x COM1
3 x QSFP+
4 x SFP+
1 x RJ45
2 x USB 3.0
1 x VGA
1 x COM1
3 x QSFP+
4 x SFP+
1 x RJ45
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
-
Power Supply[#1]
2 x 750W redundant PSUs
80 PLUS GOLD
AC input:
- 100-240V, 50-60Hz, 9.50/5.00A
DC output:
- 750W
80 PLUS GOLD
AC input:
- 100-240V, 50-60Hz, 9.50/5.00A
DC output:
- 750W
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
System Fans
4 x 80x80x38mm (14900rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
21 kg (barebone)
Packaging Dimensions
982 x 588 x 268 (mm)
Packaging Content
1 x R270-T65 system
1 x Quick Installation Guide
1 x Rail kit
1 x Quick Installation Guide
1 x Rail kit
Part Numbers
Rackmount: 6NR270T65MR-00
Motherboard: 9MT60SC5NR-00
Power supply: 25EP0-207506-L0S
Power Supply PDB: 25EP0-207508-L0S
Rail Kit: 25HB2-3A6803-I0R
Motherboard: 9MT60SC5NR-00
Power supply: 25EP0-207506-L0S
Power Supply PDB: 25EP0-207508-L0S
Rail Kit: 25HB2-3A6803-I0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
