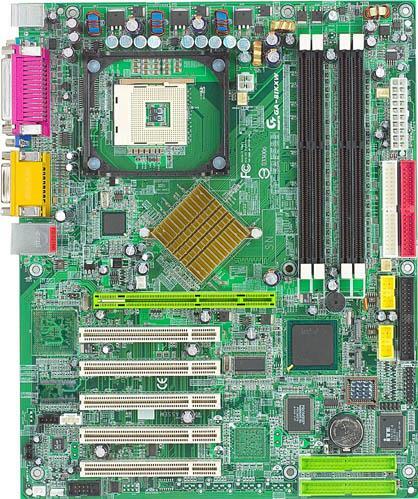

GA-8IKXW-ELegacy | Firmware updates supported
- Intel® 875P, 82801ER I/O Controller Hub 5R, ATI® Rage XL 8MB
- Intel®P4 Northwood and Prescott Processor (Socket 478, 533/800MHz FSB/3.6GHz)
- Max. 4GB Un-Buffered (ECC) DDR-333/400 Memory in 4 DIMM Slots
- SATA x 2(built in ICH5), PATA 100x2 (built in ICH5)
- AGP 8X, AC97 6CH Audio+ Game
- Promise® PDC20276 Dual ATA-133 Channels with RAID 0,1
- Intel® 82547GI Gigabit Ethernet
- ITE® IT8712F-A Super I/O
- ATX 12”Wx9.6”D, ATX + 12V Auxiliary Power, VRD 10.0
- OptionalGN-WBZB-M wireless module
- Specifications
- Support
- Related Resources
Specifications
CPU
- Single Intel® P4 processor with 512K L2 cache
- Supports 3.6GHz
- Supports 533/800MHz/Socket 478
Chipset
- Intel®875P
- Intel®82801ER I/O Controller Hub 5R+Zydas
LAN
- Build in single Intel® 82547GI Gigabit Ethernet
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (GEC)
Audio
- Built-In AC'97 ALC650
IDE / SCSI
- Intel®82801ER I/O Controller Hub 5R
- Promise®PDC 20276
RAID
- Intel®82801ER I/O Controller Hub 5R supports 2* SATA with RAID0,1
- Promise®PDC 20276 supports 2* ATA-133 with RAID 0,1
Expansion Slots
- 5 x PCI 32-Bit/33MHz Slots
Rear I/O
- 2 x PS/2
- 2 x USB 2.0
- 1 x COM
- 2 x LAN RJ45
