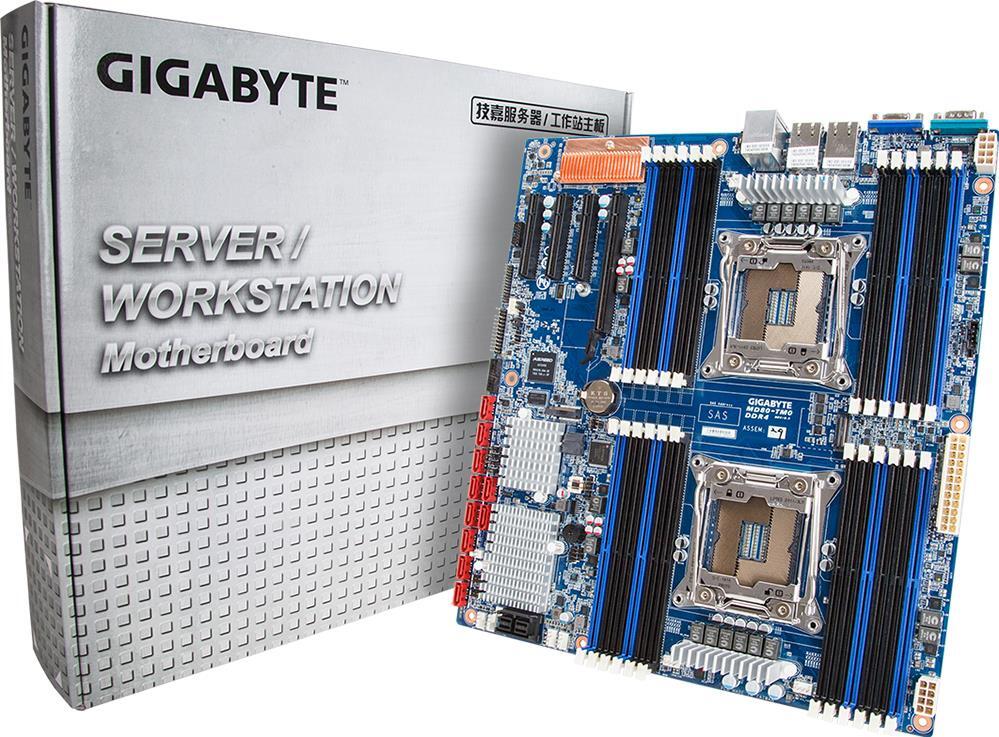

MD80-TM0Legacy | Software updates supported

E-ATX / SSI EEB
305W x 330D (mm)

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

2 x 10GBASE-T LAN ports (Intel^® X540)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

2 x Mini-SAS HD connectors(for 8 x SAS 12Gb/s)
LSI SAS 3008 controller

10 x SATA III 6Gb/s ports

Intel^® SATA RAID 0/1/10/5
LSI^® SAS RAID 0/1/1E/10

1 x PCIe x16 (Gen3 x16 bus) slot
3 x PCIe x8 (Gen3 x8 bus) slots
1 x M.2 (Gen2 x4 bus) slot:
- Socket 3
- M key
- Max. width: 22mm
- Max. length: 80mm

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
5 x System fan headers
2 x Mini-SAS HD 12Gb/s connectors
10 x SATA III 6Gb/s ports
1 x USB 3.0 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x IMR key header
2 x SGPIO headers
1 x Software RAID header
1 x Chassis intrusion header
1 x LSI UART header
1 x JTAG PLD header
1 x BMC JTAG header
1 x Clear CMOS jumper
1 x ME update jumper
1 x ME recovery jumper
1 x BIOS recovery jumper
1 x BIOS password recovery jumper
1 x S3 mask jumper
1 x BMC FRB jumper
1 x PMBus connector
1 x IPMB connector

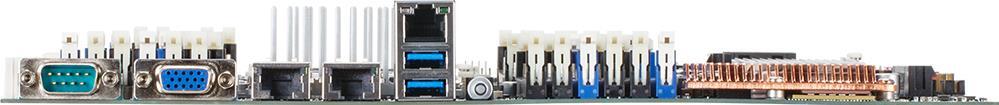

2 x USB 3.0
1 x Serial
1 x VGA
3 x RJ45
1 x ID button with LED

1 x TPM header

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

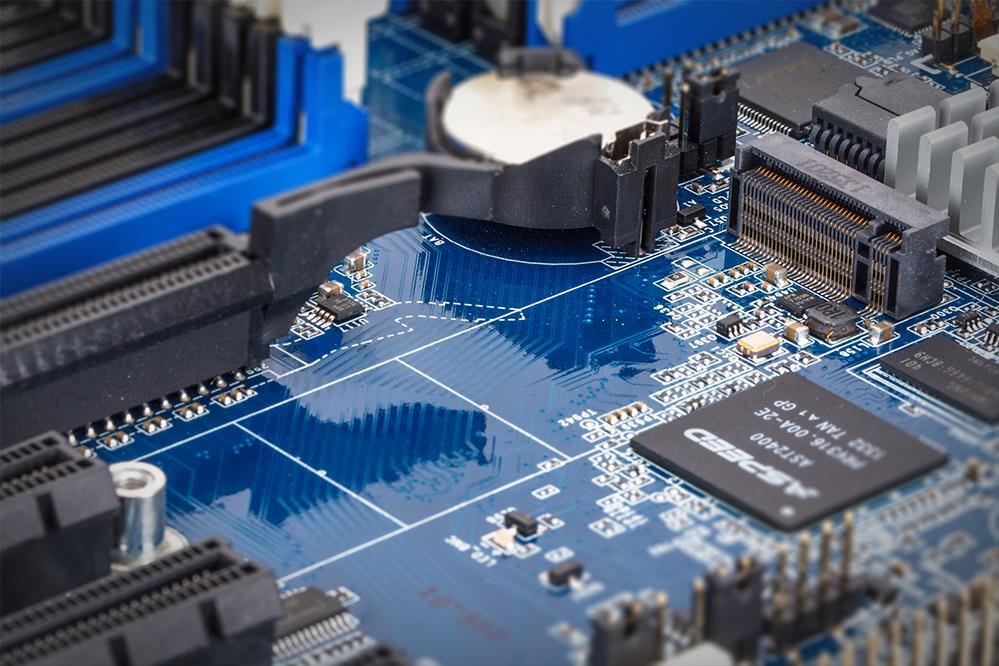

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x MD80-TM0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm

10 x MD80-TM0
10 x I/O shields
Carton dimensions: 473 x 600 x 495 mm

Retail: 9MD80TM0MR-00
Bulk: 9MD80TM0NR-00
