• Supports New Intel® Core™ i7 processor Extreme Edition
  • 4 Channel Memory Architecture
  • PCI Express Gen. 3 Support
  • All New Digital Power Control for the CPU and Memory
  • UEFI DualBIOS™ Technology
  • GIGABYTE Bluetooth 4.0 and WiFi Card for faster data transfers
  • OC-VRM delivers optimum 16 phase overclockable VRM design featuring POScap and PowerPAK MOSFET design.
  • OC-Touch provides onboard buttons for fine tuning CPU frequency
  • OC-PEG provides 2 onboard SATA power connectors for stable graphics overclocking
  • OC-DualBIOS™ provides flexible BIOS selection for efficient OC setting
  • 333 Onboard Acceleration features USB 3.0, SATA 3.0 and an unprecedented 3x USB power boost
  • Unique On/Off charge technology
  • GIGABYTE Ultra Durable™ 3 technology
  • Dolby Home Theater® support
  • High quality 110dB SNR HD audio
  • Introduction
    GIGABYTE X79 series motherboards are designed to unite unrivalled desktop PC performance with a new level of flexibility and hardware control. Based on the latest Intel® X79 Express Chipset, supporting the new LGA 2011 Intel® Core™ i7 processors, GIGABYTE X79 series motherboards bring DIY builders to a new area of performance-oriented computing.
  • GIGABYTE 3D Power (patent pending)

    GIGABYTE X79 series motherboards are the first to take advantage of the exclusive GIGABYTE 3D Power, an all new hardware and software-based Digital Power Engine for both the PWM and Memory that delivers unprecedented power delivery control.

    All New Digital Power Control for the CPU and Memory
    Utilizing a brand new Digital PWM controller, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the CPU and memory no matter the loading. This all new, all digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE X79 motherboard.
    GIGABYTE is the first in the industry to utilize digital memory controllers for not only the Memory, but VTT and VSA, for real-time monitoring and adjusting. Digital memory control allows users to monitor and record DDR power and current in real-time while gaming, overclocking or at idle. Users can also set OVP (Over Voltage Protection) to safeguard your memory, adjust memory Load-line Calibration to fix memory vdrooping for a quicker response time and adjust memory PWM frequency on-the-fly.
  • GIGABYTE 3D Power(patent pending) Utility

      Users can now enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.
      3D Power: Voltage Control
    Voltage parameters can be modified within 3D Power, including load line calibration the of CPU. By adjusting load line calibration, Vdrooping can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, memory controller, VTT and system memory.
      3D Power: Phase Control
    Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.
      3D Power: Frequency Control
    GIGABYTE's digital PWM allows for adjustable frequency control via the International Rectifier (IR3567) PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.
  • 4 Channel Memory Architecture

    The latest Intel® 2nd Gen Core™ i7 processors feature a new integrated memory controller that supports four channel DDR3 memory for the first time. Offering unrivalled memory performance with incredible potential data bandwidth, GIGABYTE X79 series motherboards give you the ultimate performance for today's memory-intensive applications.
  • Designed for PCI Express Gen.3 Support


    The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
    * PCIe Gen. 3 is dependent on CPU and expansion card compatibility.
  • 4 Way Graphics Support

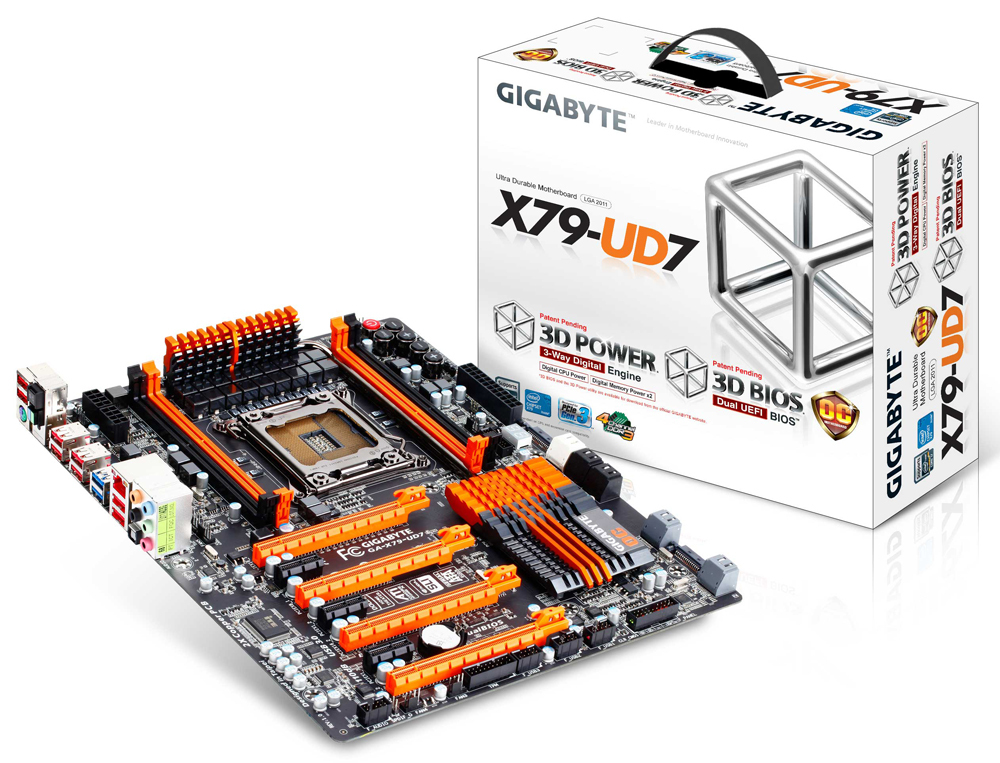

    The GIGABYTE X79-UD7 delivers the industry's most scalable graphics platform, with support for both 4-way ATI CrossfireX™ and Nvidia SLI™. Providing 4 PCI Express 3.0 x16 connectivity, X79-UD7 delivers ultra smooth 3D rendering, blazing-fast frame rates and enhanced graphics capabilities for users wanting to get the highest level of graphics performance from their system.
  • OC-VRM
    The GIGABYTE X79 OC-VRM allows you to overclock the CPU PWM in real-time. The GIGABYTE X79-UD7 is powered by a 16-phase power VRM via two 8-pin molex power connectors. Up to 1,500 Watts of power can be delivered to the CPU if needed for extreme overclocking and ultimate performance levels. The GIGABYTE X79-UD7 also features a unique POScap and PowerPAK MOSFET design that makes VRM insulation for extreme overclocking much easier than on traditional designs, while delivering faster power transfers and low temperatures. The GIGABYTE OC VRM is designed specifically for pursing the ultimate CPU performance, with low temperatures, great power stability and instant power feedback – ideal for breaking world records on Intel® Core™ i7 processors.
  • OC-Touch
    OC-Touch enables Overclockers to quickly and easily get the best performance from their system. Onboard OC-Touch buttons allow Overclockers to manually adjust the CPU ratio, BCLK settings as well as adjustments to the BCLK stepping ratio, to either 1MHz or 0.1MHz increments. These changes can be made in real-time, whether in BIOS, DOS, or Windows® without the need for rebooting, so that users can quickly fine-tune their system and find their CPU’s maximum frequency. A unique back-panel OC button allows novice Overclockers to automatically load a predetermined overclock configuration before continuing with OC-Touch to quickly find their CPU's best margin. Onboard voltage measurement modules are also included to help users to conveniently monitor individual component voltages.
  • OC-DualBIOS™
    OC-Dual BIOS features a unique back-panel BIOS switcher and LED indicator, allowing users to select one BIOS for normal use, and another for specifically designated for overclocking. This means that if your overclocking configuration suffers from instability, you can easily revert to your stable settings if needed. With OC-Dual BIOS, users can also easily compare two different BIOS versions, a very useful feature when users want to update to a new BIOS, but don't want to lose their original settings.
  • OC-PEG
    OC-PEG provides two onboard SATA power connectors that provide more stable PCIe power when using 3-way and 4-way graphics configurations. Each connector uses power from a different phase of the power supply, helping to provide a better, more stable graphics overclock. The independent power inputs for the PCIe slots helps to improve even single graphics card overclocking. For 4-way CrossFireX™, users must install OC-PEG to avoid over current in the 24pin ATX connector.

  • Most PCI Express Lanes Ever on the Desktop
    GIGABYTE X79 motherboards take advantage of the most comprehensive PCI Express data bus ever seen on a desktop PC platform. The Intel® X79 platform integrates all PCI Express lanes in to the CPU, resulting in lower latency and even faster performance for the latest discrete GPU and multi-GPU configurations.
  • GIGABYTE Bluetooth 4.0 and WiFi Card
    With 2 kinds data transfer mode, GIGABYTE Bluetooth 4.0 and WiFi Card providing spec 150 Mbps transfer rates, 802.11n supports the latest WiFi specifications for better signal coverage, and featuring the newest Bluetooth 4.0, you will not suffer from signal loss like before.
  • GIGABYTE 333 Onboard Acceleration

    GIGABYTE X79 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.
  • 3x USB Power Boost
    GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
  • SuperSpeed USB 3.0
    GIGABYTE motherboards boast SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
  • SATA 6 Gbps
    GIGABYTE motherboards are High-Speed SATA Revision 3.0 compatible, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, they offer even faster data transfer rates of up to a theoretical 4x the speed of current SATA interfaces.
  • GIGABYTE On/Off Charge
    GIGABYTE X79 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.

    * Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
    Charging results may vary by model.
  • GIGABYTE Ultra Durable™ 3
    GIGABYTE X79 motherboards are equipped with the highest quality components that guarantee lower system temperatures, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable™ 3 design features 2 ounces of copper for both the power and ground layers which dramatically lower system temperature. GIGABYTE's Ultra Durable™ 3 also features Japanese made solid capacitors, PowerPAK MOSFETs and Ferrite Chokes which combine to offer lower motherboard temperatures, less wasted power and extended product longevity.
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Dolby Home Theater® places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
    • Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
    • Designed to automatically deliver the best possible listening experience
