Graphics Card Comparison

Show Differences
Quick Navigate

Graphics Processing
Graphics Processing

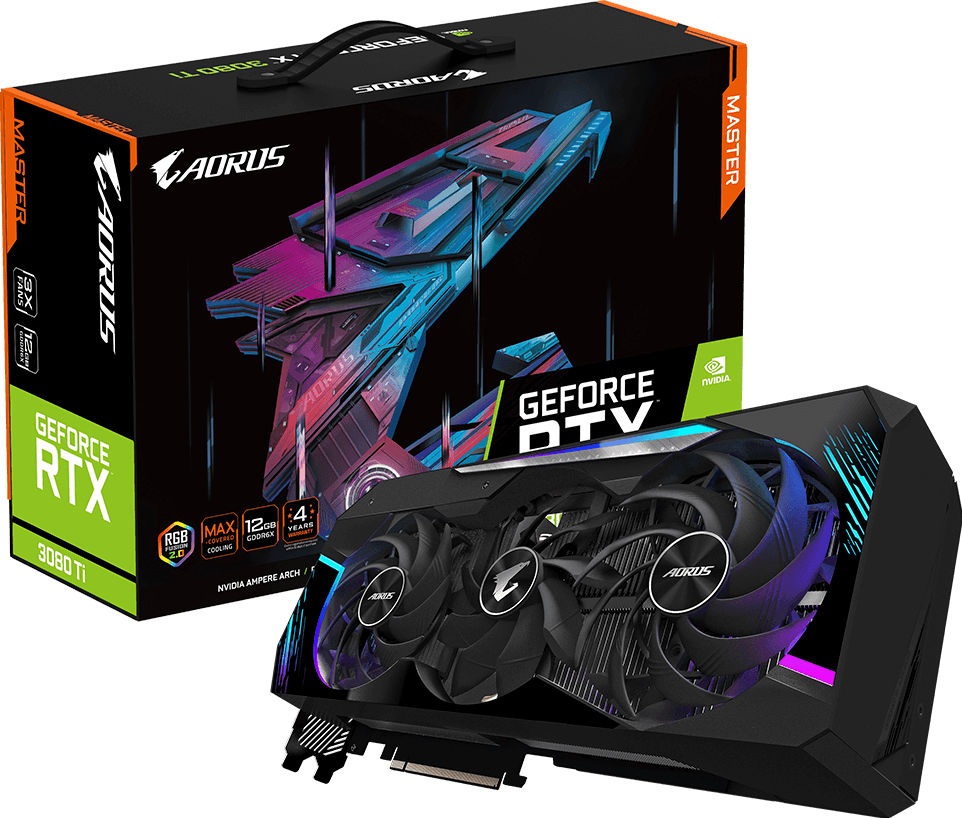

GeForce RTX™ 3080 Ti
GeForce RTX™ 3080 Ti
Radeon™ RX 6900 XT
GeForce RTX™ 3060
Core Clock
Core Clock
1710 MHz (Reference Card: 1665 MHz)
1770 MHz (Reference Card: 1665 MHz)
Boost Clock* : up to 2335 MHz
Game Clock* : up to 2135 MHz
1837 MHz (Reference Card: 1777 MHz)
Stream Processors
Stream Processors
5120
CUDA® Cores
CUDA® Cores
10240
10240
3584
Process Technology
Process Technology
7 nm
Memory Clock
Memory Clock
19000 MHz
19000 MHz
16000 MHz
15000 MHz
Memory Size
Memory Size
12 GB
12 GB
16 GB
12 GB
Memory Type
Memory Type
GDDR6X
GDDR6X
GDDR6
GDDR6
Memory Bus
Memory Bus
384 bit
384 bit
256 bit
192 bit
Memory Bandwidth (GB/sec)
Memory Bandwidth
(GB/sec)
912 GB/s
912 GB/s
512 GB/s
360 GB/s
Card Bus
Card Bus
PCI-E 4.0 x 16
PCI-E 4.0 x 16
PCI-E 4.0 x 16
PCI-E 4.0 x 16
Digital max resolution
Digital max resolution
7680x4320
7680x4320
7680x4320
7680x4320
Multi-view
Multi-view
4
4
4
4
Card size
Card size
L=320 W=129 H=55 mm (2.7 slot)
L=319 W=140 H=70 mm (3.5 slot)
L=322 W=140 H=60 mm
L=282 W=117 H=41 mm
PCB Form
PCB Form
ATX
ATX
ATX
ATX
DirectX
DirectX
12 Ultimate
12 Ultimate
12 Ultimate
12 Ultimate
OpenGL
OpenGL
4.6
4.6
4.6
4.6
Recommended PSU
Recommended PSU
750W
850W
850W
550W
Power Connectors
Power Connectors
8 pin*2
8 pin*3
8 pin*3
8 pin*1
Output
Output
DisplayPort 1.4a *3
HDMI 2.1 *2
DisplayPort 1.4a *3
HDMI 2.1*2
HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
DisplayPort 1.4a *2
HDMI 2.1 *2
DisplayPort 1.4a *2
HDMI 2.1 *2
SLI Support
SLI Support
N/A
N/A
N/A
Accessories
Accessories
1. Quick guide
2. Warranty registration
1. Quick guide
2. 4-year warranty registration
3. Metal sticker
1. Quick guide
2. 4-year warranty registration
3. Metal sticker
Quick guide
Note
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
