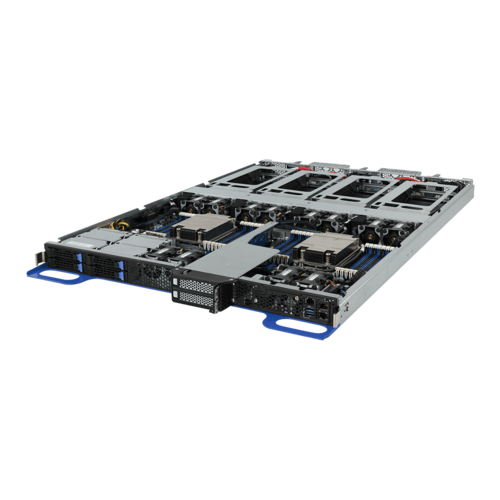

T181-Z70
(rev. B00)
Discontinued
(rev.A00)

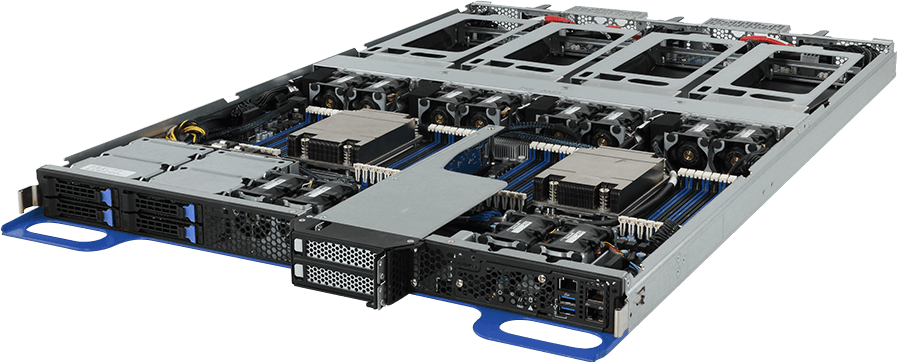

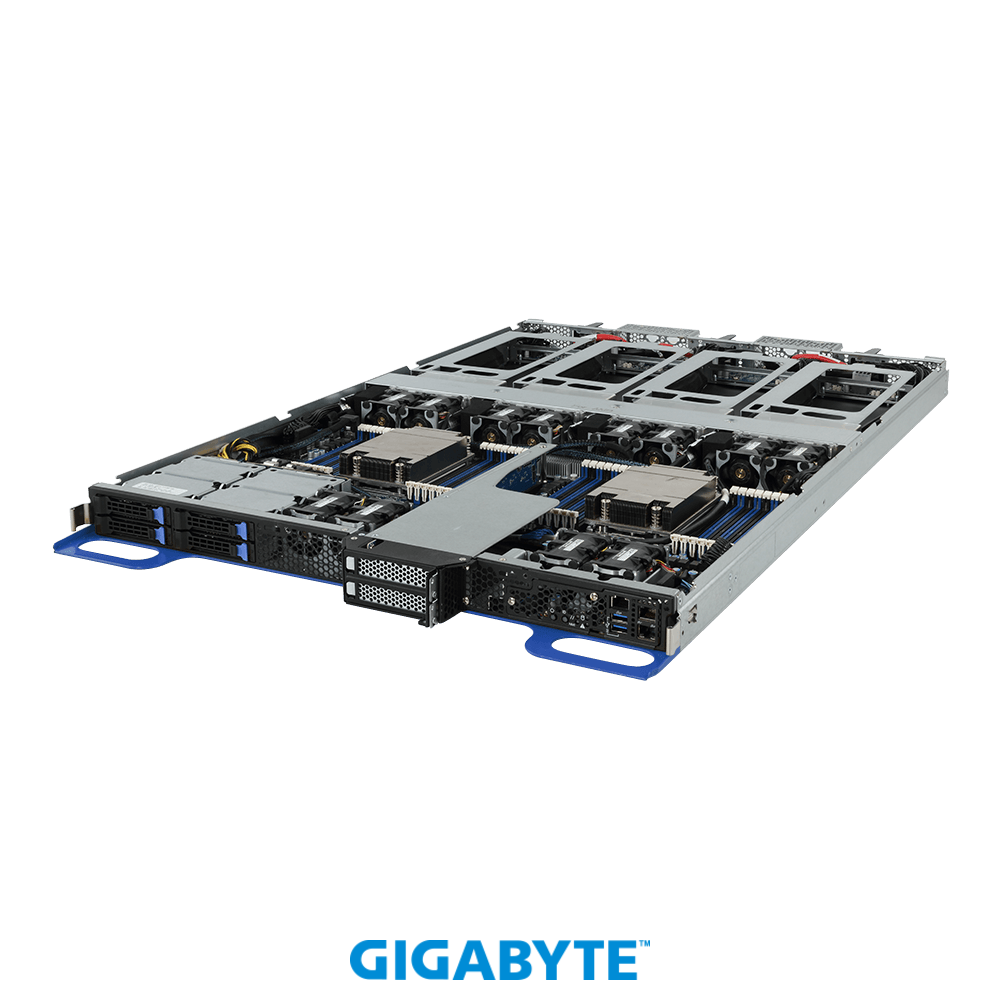

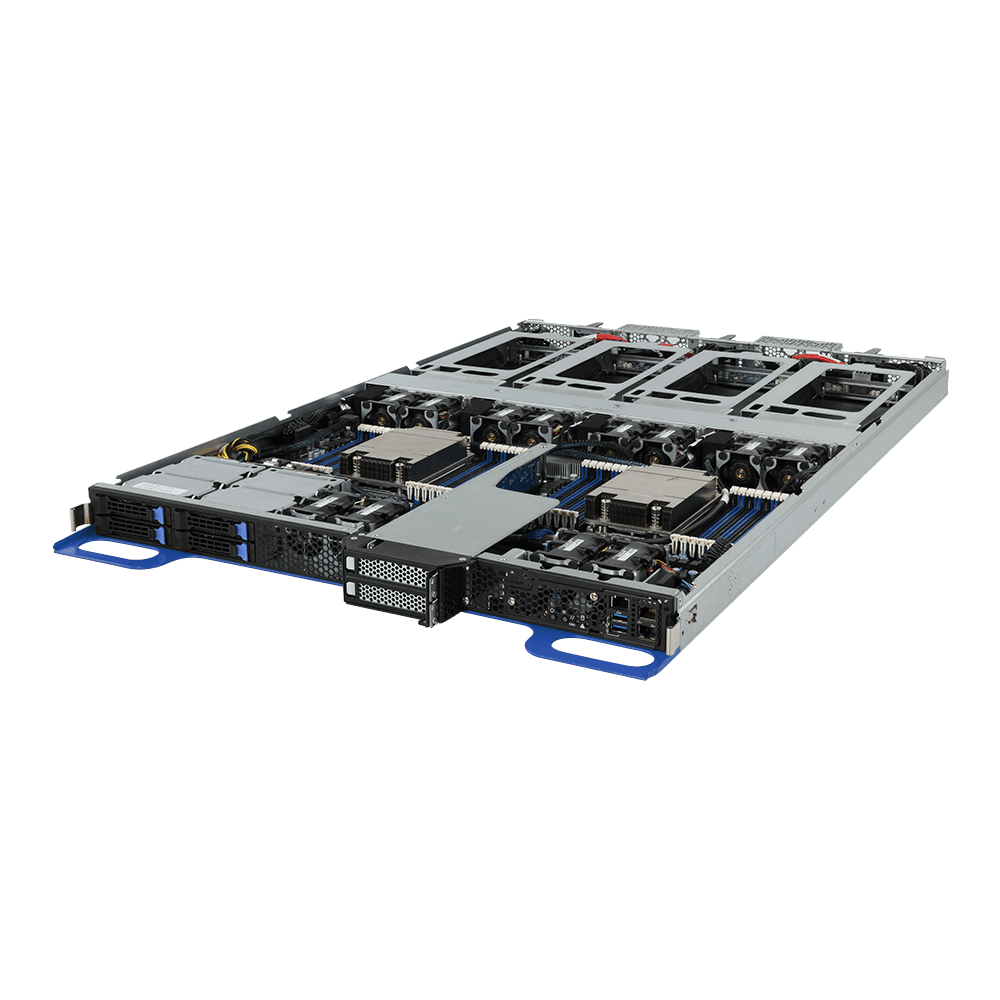

AMD EPYC™ 7003 server rack - 1U 4 x GPU Card Slots
- Supports up to 4 x PCIe double slot GPU cards
- AMD EPYC™ 7003 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
- 2 x 1Gb/s BASE-T LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 4 x 2.5" hot-swappable HDD/SSD bays
- 2 x low profile PCIe Gen3 expansion slots
- Aspeed® AST2500 remote management controller
1/4
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1OU
537 x 46.5 x 799.2
537 x 46.5 x 799.2

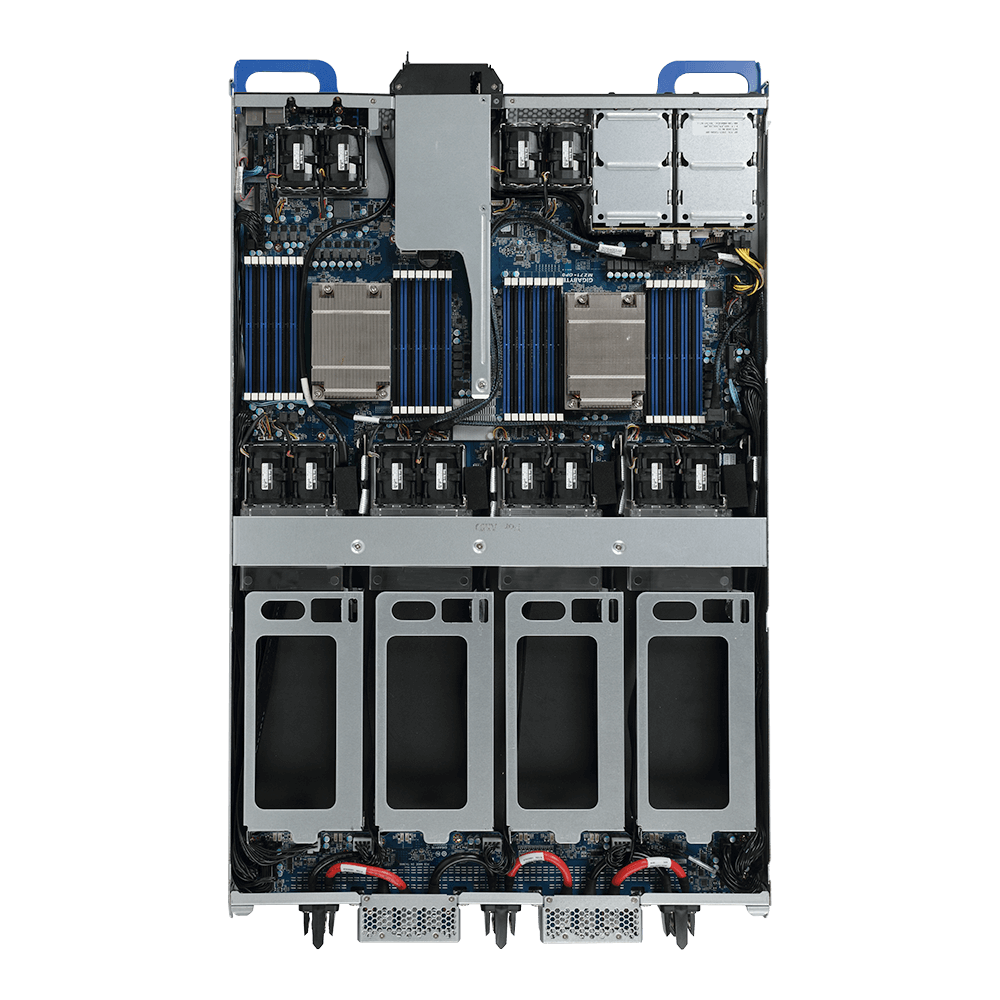

Motherboard
MZ71-OP0 Rev. 3.0
CPU
AMD EPYC™ 7003 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Ambient temperature limited to 25°C if using 280W CPU
Compatible with AMD EPYC™ 7002 series processor family
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Conditional support 280W
Ambient temperature limited to 25°C if using 280W CPU
Compatible with AMD EPYC™ 7002 series processor family
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Storage
Front side: 4 x 2.5" hot-swap HDD/SSD bays
Supports SATA or NVMe hybrid mode
Supports SATA or NVMe hybrid mode
SAS
Depends on RAID card
RAID
Depends on RAID card
Expansion Slots
4 x PCIe x16 slots (Gen3 x16 bus) for GPUs
Riser Card CRS1026:
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots ( Front side)
NOTE: Support is not provided for mixed GPU populations
Riser Card CRS1026:
2 x PCIe x16 (Gen3 x16 bus) Half-length low-profile slots ( Front side)
NOTE: Support is not provided for mixed GPU populations
Front I/O
1 x VGA
2 x RJ45
1 x MLAN
2 x USB3.0
1 x Power Switch
1 x ID Switch
1 x NMI Switch
1 x Status LED
1 x Reset Switch
1 x HDD access LED
2 x RJ45
1 x MLAN
2 x USB3.0
1 x Power Switch
1 x ID Switch
1 x NMI Switch
1 x Status LED
1 x Reset Switch
1 x HDD access LED
Rear I/O
N/A
Power Supply

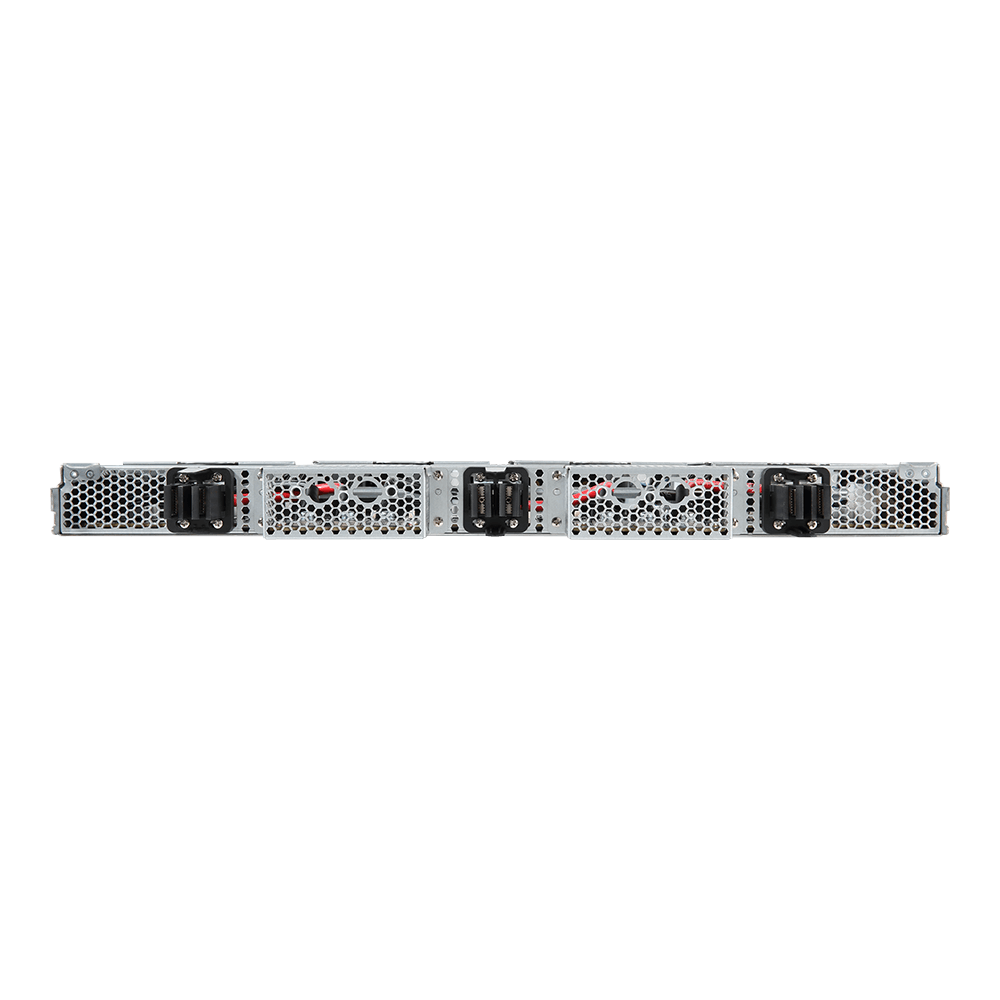

From bus-bar, supports OCP Version 1.0 power cable
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
System Fans
12 x 40x40x56mm (25000rpm) fan modules
Packaging Dimensions
1095 x 709 x 235 mm
Packaging Content
1 x T181-Z70
2 x CPU heatsinks
2 x CPU heatsinks
Part Numbers
Barebone package: 6NT181Z70MR-00 Rev. B00
Part Numbers:
- Motherboard: 9MZ71OP0NR-00 Rev. 3.0
- CPU heatsink: 25ST1-44320G-A0R
- Front Back plane board_4-port: 9COBPU40NR-00
- Front panel board: 9COFP420NR-00
- Riser card - CRS1026: 9CRS1026NR-00
Part Numbers:
- Motherboard: 9MZ71OP0NR-00 Rev. 3.0
- CPU heatsink: 25ST1-44320G-A0R
- Front Back plane board_4-port: 9COBPU40NR-00
- Front panel board: 9COFP420NR-00
- Riser card - CRS1026: 9CRS1026NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 24.0
542.58 MB
Aug 06, 2019
OS: Windows Server 2016 64bit,Windows Server 2019
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 1.06
1.78 MB
Aug 06, 2019
OS: Windows Server 2016 64bit,Windows Server 2019
BIOS
Description
Version
Size
Date
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.64
111.38 MB
Sep 05, 2023
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Description
Version
Size
Date
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.01
103.98 MB
Jul 27, 2023
