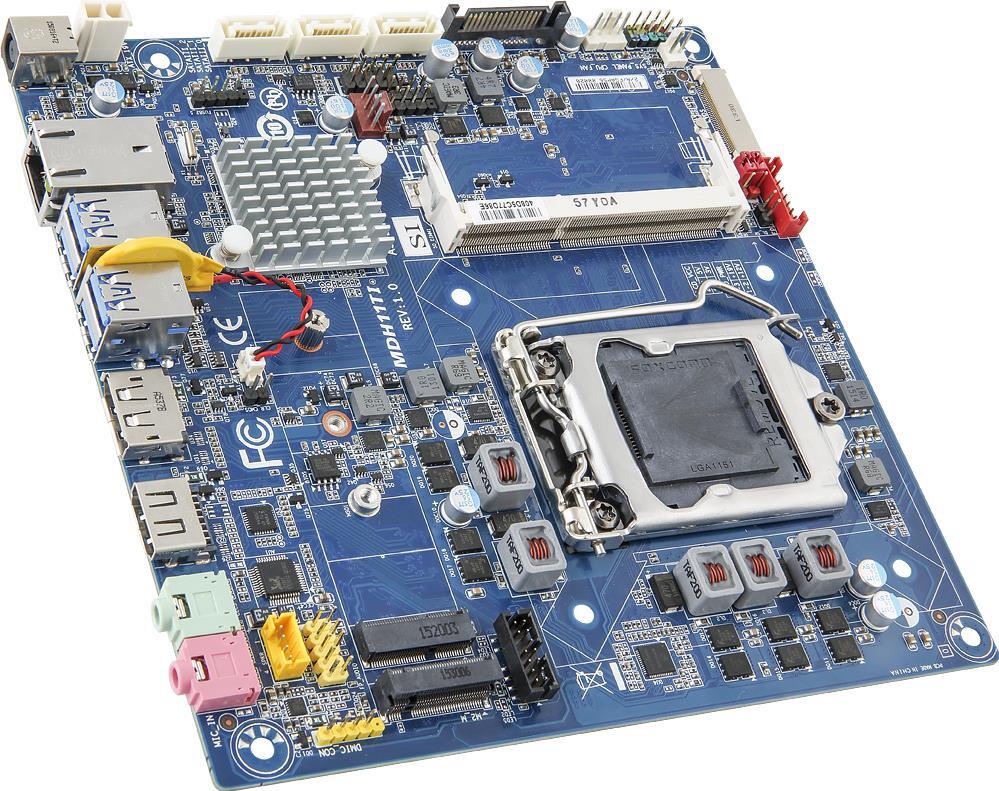

MDH11TILegacy | Software updates supported
Intel® H110 Chipset
- Thin Mini-ITX form factor
- Supports 7th / 6th Generation Intel® Core™ Processors
- Intel® H110
- 1 x DDR3L SO-DIMM slot, up to 16GB 1600MHz
- 1 x GbE LAN port (Realtek RTL8111)
- Triple display ports: HDMI, DisplayPort, LVDS
- 1 x M.2 slot
- 3 x SATA III 6Gb/s ports
Specifications
Form Factor
Thin Mini-ITX
170W x 170D (mm)
Operating Properties
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports for Intel® Core™ i7 processors
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
1 x SO-DIMM slots
1.35V DDR3L memory only
Up to 16GB
1600MHz
1.35V DDR3L memory only
Up to 16GB
1600MHz
LAN
1 x GbE LAN port (Realtek RTL8111HS-CG)
Video
Intel HD Graphics
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
Max. resolution via DP: 4096 x 2304 @ 60Hz
Max. resolution via HDMI: 4096 x 2160 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz
Audio
Realtek ALC887
SATA
3 x SATA 6Gb/s ports
1 x M.2 slot: - M-key - SATA 6Gb/s signal - Supports NGFF-2260/2280 cards
1 x M.2 slot: - M-key - SATA 6Gb/s signal - Supports NGFF-2260/2280 cards
RAID
-
Expansion Slots
1 x M.2 slot:
- E-key
- PCIe 2.0 x1 signal
- Supports NGFF-2230 cards
Internal I/O
1 x 12V power connector
3 x SATA 6Gb/s ports
1 x SATA power connector
1 x LVDS 18/24bit connector
1 x CPU fan header
1 x System fan header
3 x USB 2.0 headers (up to 5 x USB 2.0 ports)
1 x Front panel header
1 x Front audio header
1 x Speaker header
1 x Digital microphone header
1 x Backlight switch header
1 x FPD header
1 x FPD power jumper
1 x LCD selection jumper
1 x Clear CMOS jumper
1 x TPM header
1 x TPM header
Rear I/O
1 x DC-in
1 x RJ45
4 x USB 3.0
1 x DisplayPort v1.2
1 x HDMI v1.4
1 x Line-out
1 x MIC-in
TPM
TPM header
OS Compatibility
Windows 10 (x64)
Windows 8.1 (x64)
Windows 7 (x32/x64)
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
- Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7
PSU Connectors
1 x 12-19V DC-in or
1 x 12V power connector
1 x 12V power connector
Packaging Content
1 x SATA power cable (710mm)
1 x 25.54mm I/O shield
1 x 44.45mm I/O shield
Ordering Information
9MDH11TINR-SI
20 units per carton
Packaging dimensions: 550 x 451 x 330 mm
