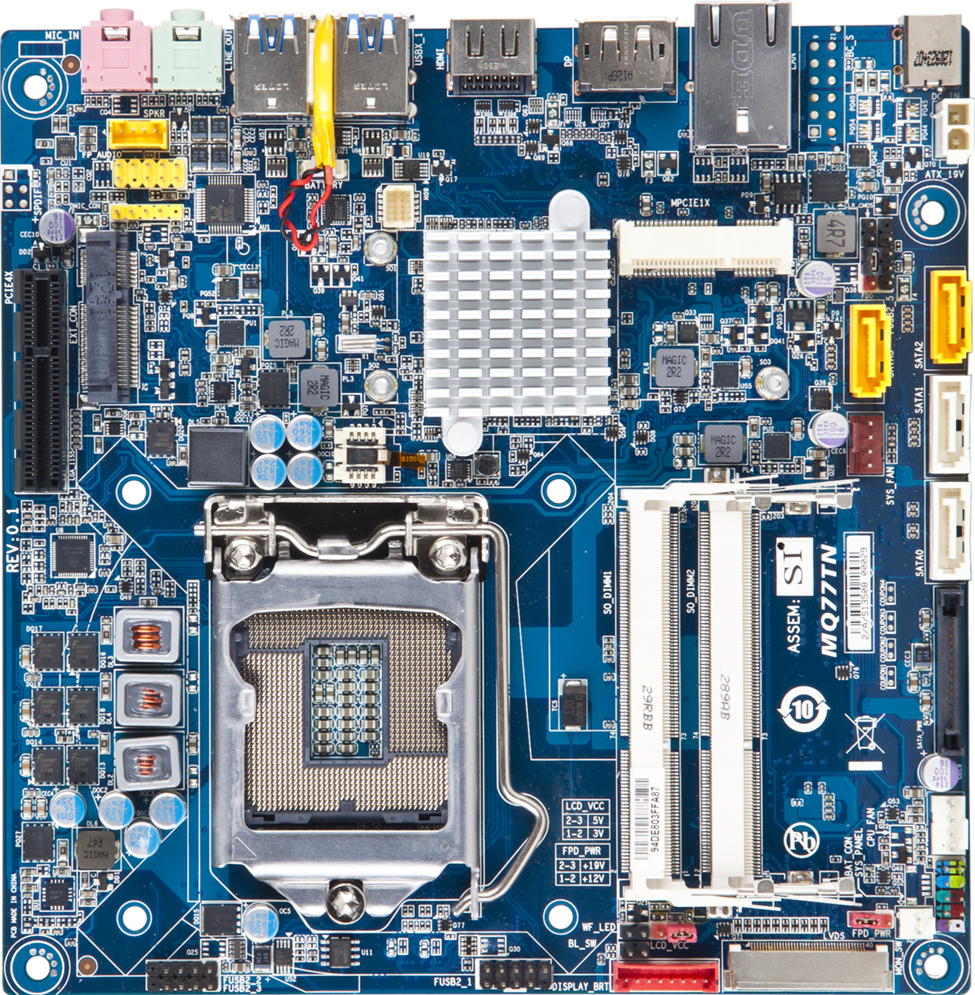

MQ77TN

Discontinued

Rev. 1.0

Intel^® Q77 chipset

Thin Mini-ITX form factor
Intel^® 2^nd/3^th Gen. Core™ processors
2 x SO-DIMM, up to 16GB 1600/1333MHz
1 x GbE LAN port (Intel^® 82579LM)
2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports

GIGABYTE Thin Mini-ITX Standards

GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs.
Onboard mSATA Support

This motherboard features an onboard mSATA slot allowing users to easily take advantage of advanced SSD-based technologies like Intel^® Smart Response and Intel^® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC's performance with better overall desktop responsiveness, faster boot times and faster system resume from 'Suspend to Disk' and 'Standby' modes.
SuperSpeed USB 3.0

With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
DisplayPort Support

Featuring DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
Trusted Platform Module Data Security

Onboard TPM offers a protected and encapsulated micro-controller security chip for safeguarding internal data structures against real world threats. This ensures that information like keys, passwords, and digital certificates remains safe from external attacks, physical theft, and other types of intrusion.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor

Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield

Operating Properties

Operating temperature: -10°C to 60°C Operating humidity: 0-85% (non-condensing) Non-operating temperature: -40°C to 70°C Non-operating humidity: 0%-85% (non-condensing)

CPU

Supports Intel^® 2^nd & 3^rd Gen processors
Up to 95W TDP

Socket

1 x LGA 1155

Chipset

Intel^® Q77

Memory

2 x SO-DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333/1600 MHz

LAN

1 x GbE LAN port (Intel^® 82579LM)

Video

Integrated graphics processor

Audio

Realtek^® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

SATA

2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s

RAID

Intel^® SATA RAID 0/1/10/5

Expansion Slots

1 x PCIe x4 (Gen3 x4 bus) slot (25W only)
1 x mSATA slot
1 x Half-size Mini-PCIe slot

Internal I/O

1 x 2-pin ATX 19V power connector
1 x CPU fan header
1 x System fan header
2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
1 x mSATA connector
1 x SATA power connector
3 x USB 2.0 headers
1 x Front panel header
1 x Front audio header
1 x Digital microphone header
1 x AIO speaker header
1 x LVDS connector
1 x LVDS drive voltage header
1 x Flat panel display power header (both panel and backlight inverter)
1 x Flat panel display power connector
1 x Backlight switch header
1 x Flat panel display switch header
1 x WiFi activity indicator LED header
1 x Clear CMOS jumper

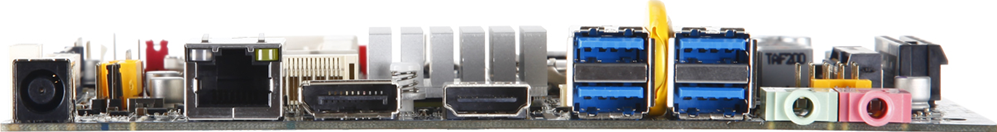

Rear I/O

4 x USB 3.0
1 x HDMI
1 x DisplayPort
1 x RJ45
1 x Line-Out
1 x Mic-In
1 x DC-In

TPM

TPM module onboard
Infineon^® SLB9635TT1.2 controller

OS Compatibility

Windows 7 (32/64bit)
Windows 8 (32/64bit)

PSU Connectors

1 x DC-In 12V/19V
1 x 2-pin ATX 19V power connector

Power Supply

GIGABYTE recommends 180W power adapters for processors above 84W TDP. Processors with a TDP lower than 84W, may use 150W power adapters.
Adapters available in option:
