• The Power of GPU Virtualization
    Developed in partnership with Carri Systems, a French specialist of GPU computing & HPC solutions, this product is a 2U rackmount housing 4 blades capable of receiving one NVIDIA GRID or AMD FirePro card each.

    With the amount of possibilities offered by the GPU virtualization exploding in all directions, the G210-H4G is a simple solution designed with simplicity and flexibility in mind to let organizations, big and small, enjoy the benefits of this growing computing trend.

    Compatible with all the models from NVIDIA's GRID and AMD FirePro product families, this product is a standard 2U rackmount built with 4 blades. Each blade is built with a GA-6LISL motherboard that can receive an Intel Xeon E3-1200 V3 processor, with 4 hot-swappable bays for 2.5" HDDs or SSDs, and with a special PCIe x16 (Gen3 x16 bus) slot large enough to receive a computing card up to 267mm length and 300W TDP.

    With such specifications, the G210-H4G is an ideal product to unlock the enormous potential offered by NVIDIA and AMD professional cards in many types of scenarios, notably for virtual desktops running graphics intensive applications and cloud gaming as well.
  • The Multi-Node Design Advantages

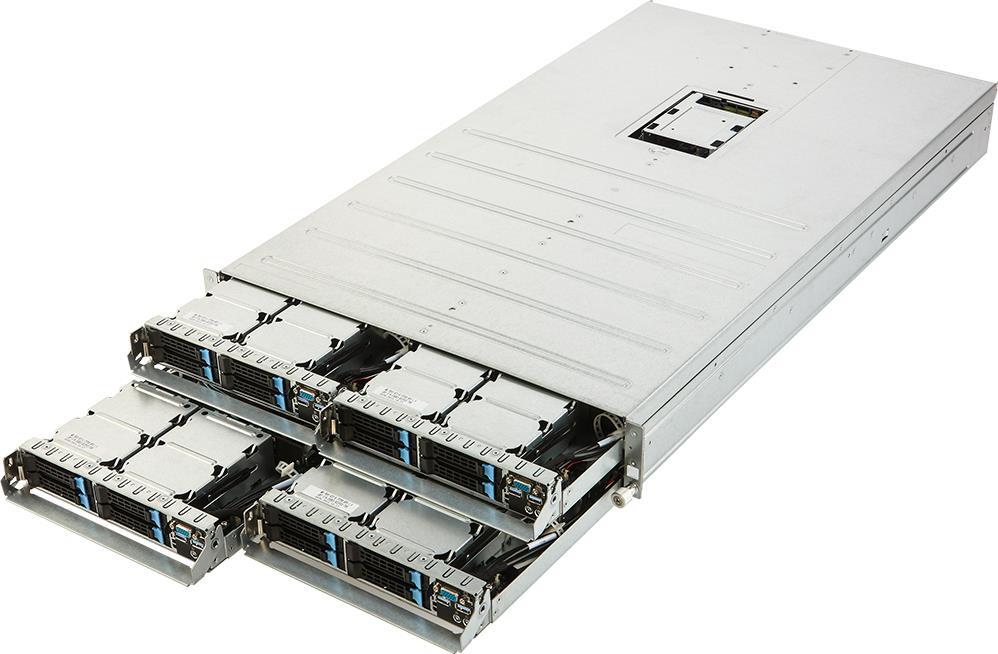

    The 2U multi-nodes rackmount design regroups all the critical features required to satisfy datacenter environment criteria:

    Space:

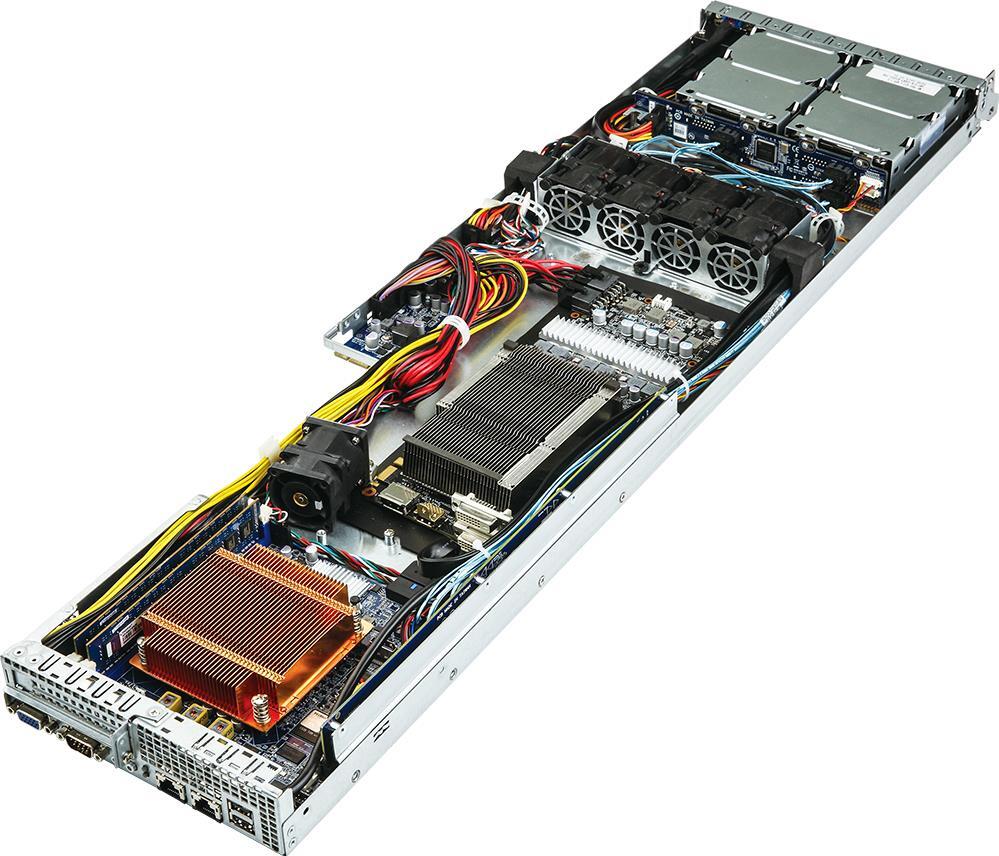

    The chassis is equipped with four motherboards (computing nodes), when traditional 2U racks have only one. Here in 2U you get in total 4 processors from the Intel Xeon E3-1200 V3 family, 8 memory DIMMs, and 16 HDD bays, while keeping optimal airflow and thermal properties.
    The computing density is multiplied by 4, which means the space utilization of the chassis is improved by 3.

    Power:
    Within the chassis, the power supply blocks are removed from each blade to be shared and managed at the rack level. This implies less components obstruction, enhanced thermal performance, and reduced power consumption.

    Serviceability:
    With rear access to the computing nodes and hot-swappable HDD bays, this rack can be serviced easily and can fit in most of existing datacenter infrastructure.
    For routine monitoring, this rack comes with a management controller that allows it to be remotely controlled.
    Also, it perfectly matches hot aisle/cold aisle designs.

    Cost:
    Being able to fit 4 motherboards within 1 chassis instead of 4, you save on the chassis cost.
  • Energy Saving Architecture
    With an optimal airflow throughout each blade specially designed around the GPU card slots, and a redundant power delivery system shared across the entire rack, the G210-H4G is highly power efficient and will help your infrastructure achieve significant power savings compared to traditional rack systems in a short amount of time.
  • Intel® Xeon® Processor E5-2600 V2 Product Family
    Deployable through a simple BIOS update, the support of the Intel Xeon processors E5-2600 V2 product family delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
    Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key.
  • Dual GbE LAN
    Dual GbE LAN
  • Support of PCIe Generation 3.0
  • Server Management
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
447 x 87.2 x 780
Motherboard
4 x GA-6LISL
CPU
Supports Intel® Xeon® processor E3-1200 V3 & V4 product families
Supports 4th gen Intel® Core™ i3, Pentium® and Celeron® processors*

*If used with non-ECC memory, supported on client OS only. If used with ECC memory, supported on both client and server OS.
Socket
Per node:
1 x LGA 1150

Total:
4 x LGA 1150

4 x CPU heatsinks included
Chipset
Per node:
Intel® C226
Memory
Per node:
2 x DIMM slots

Total:
8 x DIMM slots
Supports unbuffered ECC or non-ECC UDIMM modules
Supports single rank and dual rank UDIMM modules
Up to 16GB
1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
Per node:
2 x GbE LAN ports (Intel® I210-AT)
Video
Per node:
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
Per node:
4 x 2.5" hot-swappable HDD/SSD bays

Total:
16 x 2.5" hot-swappable HDD/SSD bays
SATA
Per node:
5 x SATA III 6Gb/s ports

Total:
20 x SATA III 6Gb/s ports
SAS
-
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
-
Expansion Slots
Per node:
1 x PCIe x16 (Gen3 x16 bus) slot

Total:
4 x PCIe x16 (Gen3 x16 bus) slots

Supports:
  • NVIDIA GRID K340
  • AMD FirePro S9150
Internal I/O
Per node:
1 x Front panel VGA header
1 x 24-pin ATX main power connector
1 x 4-pin 12V auxiliary power connector
1 x PCIe x16 and x8 bandwidth switch jumper
1 x CPU fan header
1 x Front panel header
3 x System fan headers
1 x PMBus connector
1 x USB 3.0 header
1 x USB 2.0 header
1 x SATA port 4 DOM support jumper
1 x Case open intrusion header
1 x Battery power cable connector
5 x SATA III 6Gb/s ports
1 x SATA SGPIO header
1 x Clear CMOS jumper
1 x ME update jumper
1 x BIOS recovery jumper
1 x BMC readiness LED
1 x IPMB connector
1 x TPM header

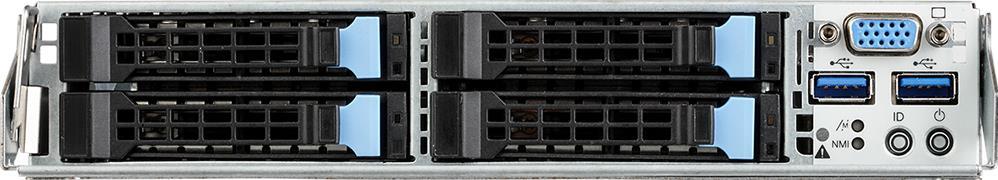

Front I/O
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
1 x NMI LED
1 x BMC reset LED
1 x System status LED

Total:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI LEDs
4 x BMC reset LEDs
4 x System status LEDs

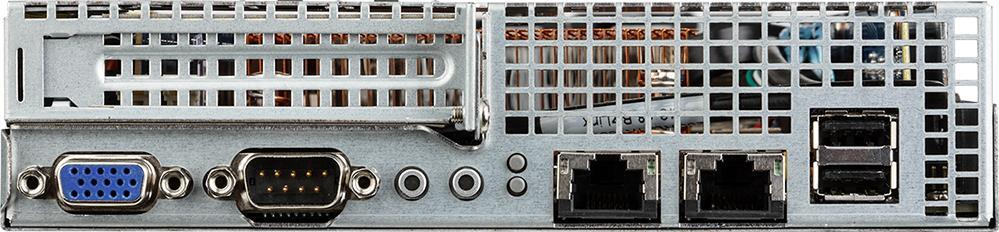

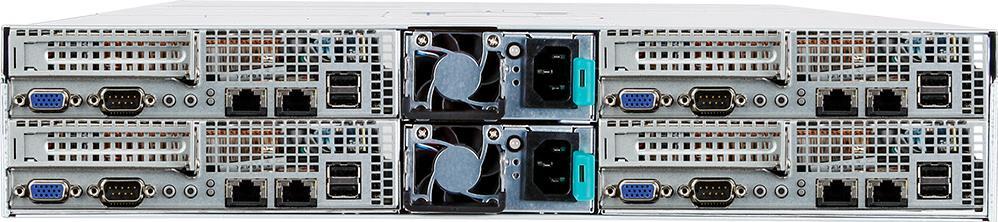

Rear I/O
Per node:
2 x USB 2.0
1 x VGA
1 x Serial
2 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button

Total:
8 x USB 2.0
4 x VGA
4 x Serial
8 x RJ45
4 x Power buttons with LED
4 x ID buttons with LED
4 x NMI buttons
4 x Reset buttons
Backplane I/O
4 x SATA III 6Gb/s ports
TPM
1 x TPM header
Power Supply
2 x 1600W PSU
80 PLUS Platinum

AC input:
- 100-127V/ 12A, 47-63Hz
- 200-240V/ 9.48A, 47-63Hz

DC output:
- 1000W@100-127V
- 1600W@200-240V
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2012 R2 (x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Weight
32.6kg
System Fans
Per node:
4 x 40x40x56mm
1 x 38x38x48mm

Total:
16 x 40x40x56mm
4 x 38x38x48mm
Operating Properties
Operating temperature: 5°C to 30°C
ŠNon-operating temperature: 0°C to 40°C
Š10-80% operating humidity at 30°C
Packaging Dimensions
1050x591x218 mm
Packaging Content
1 x Rackmount
1 x Rail kit
1 x Driver CD
1 x Manual
4 x Heatsinks
Part Numbers
Rackmount: 6NR21FDNR-00
Rail kit: 25HB2-A86100-K0R
Heatsink: 12SP2-040091-00R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
