H230-R4G
Discontinued

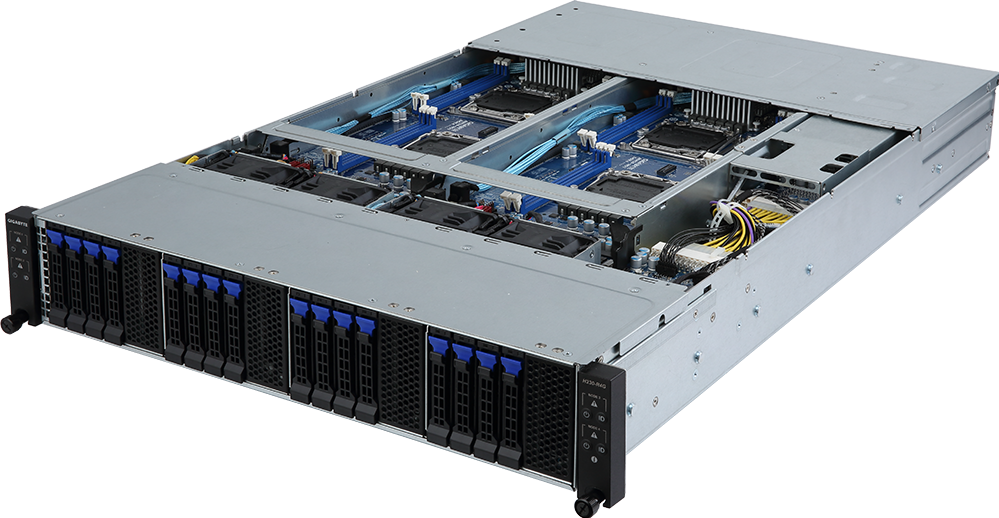

2U 4 Nodes High Density Rack Server

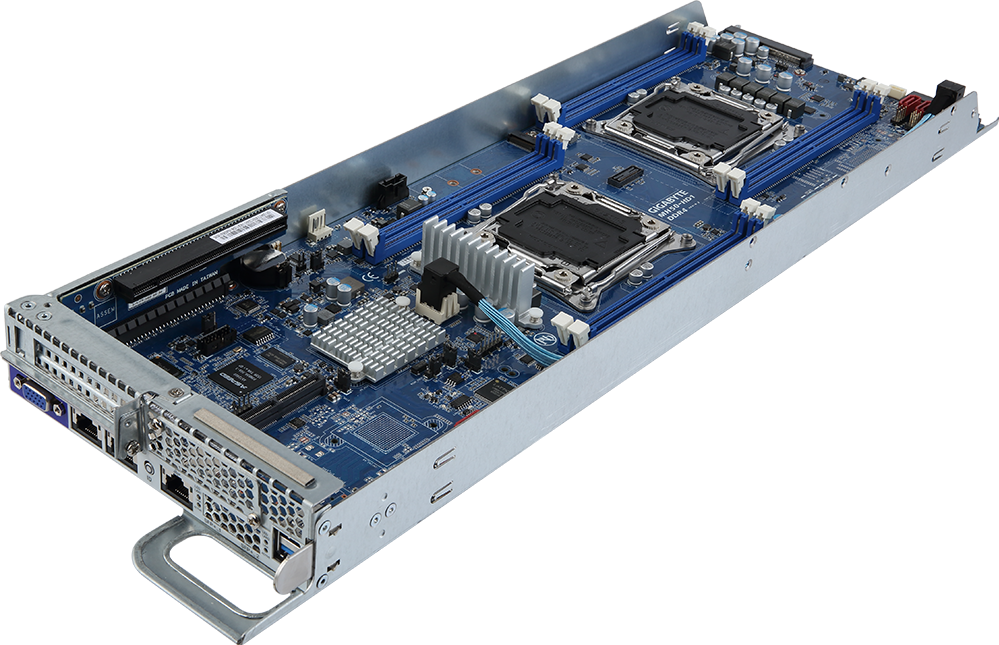

- 2U - 4 nodes with rear access to the node trays
- Intel® Xeon® processor E5-2600 V3 / V4 product family
- 8 x LGA 2011-3 sockets
- Intel® C612 chipset
- 32 x DDR4 slots
- 8 x GbE LAN ports (Intel® I350)
- 16 x 2.5” hot-swappable HDD/SSD bays
- 1600W 80 PLUS Platinum redundant PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 87 x 760
448 x 87 x 760
Motherboard
MH50-HD1
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, I/O functions might be unavailable.
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, I/O functions might be unavailable.
Socket
Per node:
2 x LGA 2011-3
Total:
8 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
2 x LGA 2011-3
Total:
8 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
Per node:
8 x DIMM slots
Total:
32 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
8 x DIMM slots
Total:
32 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
Per node:
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Total:
8 x GbE LAN ports (Intel® I350-AM2)
4 x 10/100/1000 management LAN
1 x 10/100/1000 *CMC LAN
*CMC: Chassis Management Controller, to monitor all status of computing nodes.
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN
Total:
8 x GbE LAN ports (Intel® I350-AM2)
4 x 10/100/1000 management LAN
1 x 10/100/1000 *CMC LAN
*CMC: Chassis Management Controller, to monitor all status of computing nodes.
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip in CMC board:
Integrated in Aspeed® AST1050
Support IPMI only, if iKVM is required, please use dedicated management LAN port (from AST2400) of each node
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Management chip in CMC board:
Integrated in Aspeed® AST1050
Support IPMI only, if iKVM is required, please use dedicated management LAN port (from AST2400) of each node
Audio
-
Storage
Per node:
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
RAID
Intel® SATA RAID 0/1/5/10
Peripheral Drives
-
Expansion Slots
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connector
1 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key
Total:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors
4 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key
1 x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connector
1 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key
Total:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors
4 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key
Internal I/O
Per node:
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x PMBUS header
1 x PMBUS selection jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x Power on selection jumper
1 x ACK selection jumper
1 x IPMB connector
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x PMBUS header
1 x PMBUS selection jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x Power on selection jumper
1 x ACK selection jumper
1 x IPMB connector

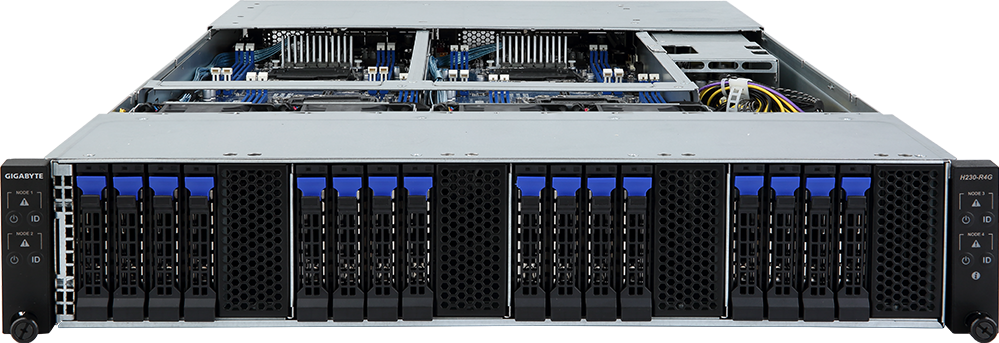

Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
*1 x CMC status LED
*Only one CMC status LED per system
1 x Power button with LED
1 x ID button with LED
1 x Status LED
Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
*1 x CMC status LED
*Only one CMC status LED per system

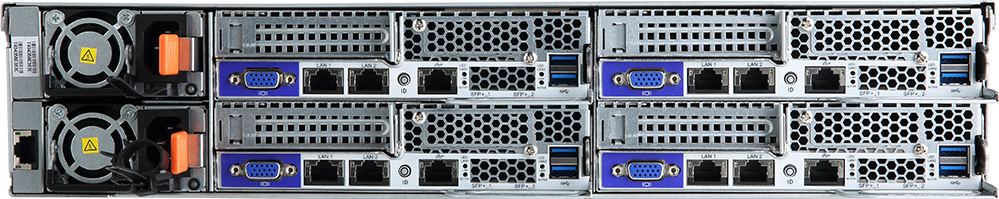

Rear I/O
Per node:
2 x USB 3.0
1 x VGA
2 x RJ45
1 x RJ45 MLAN
1 x ID button with LED
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x RJ45 MLAN 4 x ID button with LED
*1 x CMC MLAN
*Only one CMC MLAN per system
2 x USB 3.0
1 x VGA
2 x RJ45
1 x RJ45 MLAN
1 x ID button with LED
Total:
8 x USB 3.0
4 x VGA
8 x RJ45
4 x RJ45 MLAN 4 x ID button with LED
*1 x CMC MLAN
*Only one CMC MLAN per system
Backplane Board
16 x SAS/SATA ports
12Gb/s & 6Gb/s compatible
12Gb/s & 6Gb/s compatible
TPM
1 x TPM header
Power Supply
2 x 1600W redundant PSU
80 PLUS Platinum AC Input: 100-127V~/ 12.9A, 50-60Hz 200-240V~/9.5A, 50-60Hz DC Output: Max 1000W@100-127V +12V/ 83A +12Vsb/ 2.1A Max 1600W@200-240V +12V/ 133A +12Vsb/ 2.1A
80 PLUS Platinum AC Input: 100-127V~/ 12.9A, 50-60Hz 200-240V~/9.5A, 50-60Hz DC Output: Max 1000W@100-127V +12V/ 83A +12Vsb/ 2.1A Max 1600W@200-240V +12V/ 133A +12Vsb/ 2.1A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Cold Redundancy
- Intelligent Power Management (IPM)
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
4 x 80x80x38mm (16’300rpm)
Operating Properties
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Weight
35 kg (full packaging)
Packaging Dimensions
981 X 585 X 314 mm
Packaging Content
1 x H230-R4G
8 x CPU heatsinks
1 x Quick start guide
1 x Rail Kit
8 x CPU heatsinks
1 x Quick start guide
1 x Rail Kit
Part Numbers
- Barebone: 6NH230R4GMR-00
- Power Supply: 25EP0-216005-C1S
- Tool-less rail kit: 25HB2-AN6103-K0R
- CMC daisy chain kit: 6NH23NR48SR-00-100
- Power Supply: 25EP0-216005-C1S
- Tool-less rail kit: 25HB2-AN6103-K0R
- CMC daisy chain kit: 6NH23NR48SR-00-100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu 14.04 LTS x86
- Ubuntu 14.04 LTS x64
- Ubuntu 12.04 LTS x86
- Ubuntu 12.04 LTS x64
- SLES 12 x64
- SLES 11.4 x86
- SLES 11.4 x64
- RHEL 7.2 x64
- RHEL 6.7 x86
- RHEL 6.7 x64
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 10.1.2.10
2.76 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Management Engine Driver
Version : 9.1.0.1120
102.8 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 20.7
242.15 MB
Mar 30, 2016
OS: Ubuntu 14.04 LTS x86,Ubuntu 14.04 LTS x64,RHEL 6.7 x86,RHEL 6.7 x64,RHEL 7.2 x64,Ubuntu 12.04 LTS x86,Ubuntu 12.04 LTS x64,SLES 11.4 x86,SLES 11.4 x64,SLES 12 x64
Intel® LAN Driver and Utility
Version : 22.1
303.94 MB
Mar 24, 2017
OS: Windows Server 2012 64bit
Intel® LAN Driver and Utility
Version : 22.1
303.94 MB
Mar 24, 2017
OS: Windows Server 2016 64bit
SAS
SAS
Version
Size
Date
LSI SAS3008/SAS2308/SAS2208 Utility
Version : 13.04.03.01
73.01 MB
Dec 03, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
GIGABYTE GC-MSLZ1 optional Card
LSI® SAS2208 Hardware RAID SAS Card
LSI® SAS2208 Hardware RAID SAS Card
Version : 6.701.04.00
242.81 MB
Jul 02, 2014
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.5.0.1333
3.59 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.5.0.1333
18.62 MB
Mar 31, 2016
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 4.6.0.1085
7.41 MB
Mar 24, 2017
OS: Windows Server 2016 64bit
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 4.6.0.1085
19.4 MB
Mar 24, 2017
OS: Windows Server 2016 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.33
5.17 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.118
11.41 MB
Dec 01, 2014
OS: Windows Server 2008 R2 64bit
Etron USB 3.0 Driver
Version : 0.119
11.42 MB
Dec 02, 2014
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit
BIOS
Description
Version
Size
Date
Security update for 2019.2 Intel Platform Update (IPU)
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
[1] Update Microcode:Hasswell-EP M6F306F2_00000043,Broadwell-EP MEF406F1_0B000038
[2] Update ACM :SINIT 3.1.3
[3] Update Update SPS 03.01.03.72.0
Version : R13
13.21 MB
Dec 06, 2019
1. SPEED VBIOS update to 1.09.0 for CVE-2019-6260
2. Fixed INTEL-SA-00233
2. Fixed INTEL-SA-00233
Version : R12
12.97 MB
Jun 17, 2019
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM CLI
Version : 1.00
125.66 MB
Aug 01, 2017
OS: Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Ubuntu,Windows Server 2016 64bit
Manual
Description
Version
Size
Date
Description
Version
Size
Date
RESOURCES
Success Case
Articles
Success Case | May 30, 2023
Spain’s IFISC Tackles COVID-19, Climate Change with GIGABYTE Servers
By using GIGABYTE, Spain’s Institute for Cross-Disciplinary Physics and Complex Systems is pitting the world’s foremost server solutions against some of the world’s most pressing issues, including the effects of climate change, pollution, and COVID-19. GIGABYTE servers are up to the diverse and daunting tasks, because they are designed for high performance computing, intensive numerical simulations, AI development, and big data management.
Tech Guide | July 18, 2023
How to Pick a Cooling Solution for Your Servers? A Tech Guide by GIGABYTE
As CPUs and GPUs continue to advance, they consume more power and generate more heat. It is vital to keep temperature control in mind when purchasing servers. A good cooling solution keeps things running smoothly without hiking up the energy bill or requiring persistent maintenance. GIGABYTE Technology, an industry leader in high-performance servers, presents this Tech Guide to help you choose a suitable cooling solution. We analyze three popular options—air, liquid, immersion—and demonstrate what GIGABYTE can do for you.
Tech Guide | October 27, 2022
Data Center Cooling: The Key to Green Computing and a Low-Carbon Transition
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
Tech Guide | January 11, 2022
Cluster Computing: An Advanced Form of Distributed Computing
Cluster computing is a form of distributed computing that is similar to parallel or grid computing, but categorized in a class of its own because of its many advantages, such as high availability, load balancing, and HPC. GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you learn about cluster computing. We also recommend GIGABYTE servers that can help you benefit from cluster computing.
Tech Guide | January 10, 2022
Setting the Record Straight: What is HPC? A Tech Guide by GIGABYTE
The term HPC, which stands for high performance computing, gets thrown around a lot nowadays, as server solutions become more and more ubiquitous. It is running the risk of becoming a catchall phrase: anything that is “HPC” must be the right choice for your computing needs. You may be wondering: what exactly are the benefits of HPC, and is HPC right for you? GIGABYTE Technology, an industry leader in high-performance servers, presents this tech guide to help you understand what HPC means on both a theoretical and a practical level. In doing so, we hope to help you evaluate if HPC is right for you, while demonstrating what GIGABYTE has to offer in the field of HPC.
Video
Video | July 28, 2021
Heroes Ascension
Over the past year or so, due to global warming and climate changes, all parts of the world have witnessed extreme weather events that are more severe than ...
Video | March 25, 2021
What is it? Data Center in 60 Seconds
What is a data center? A data center is a facility that an organization uses for housing their IT equipment, including servers, storage, ...
Security & Technical Advisory
Others
Back to H230-R4G
