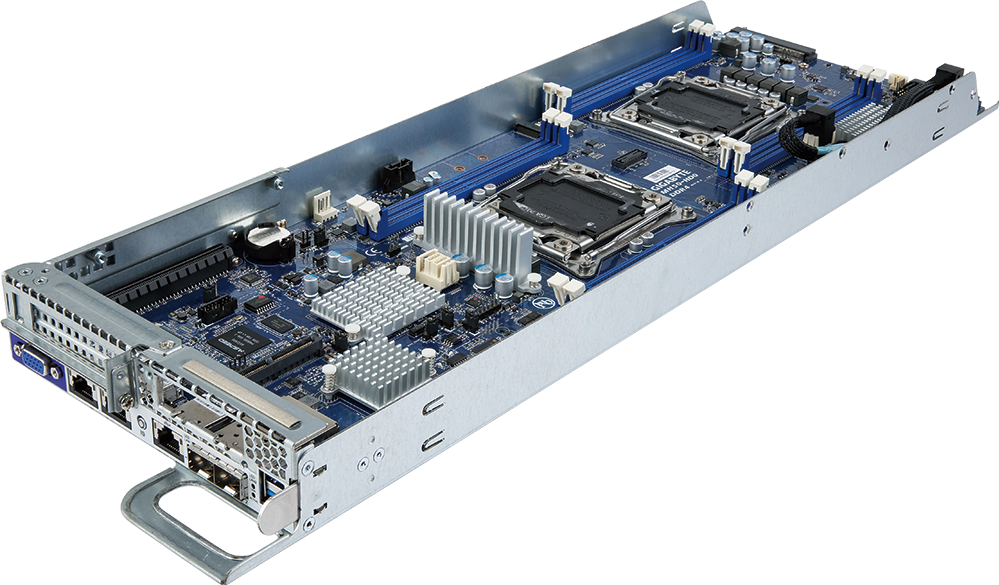

H23N-R4O

Discontinued

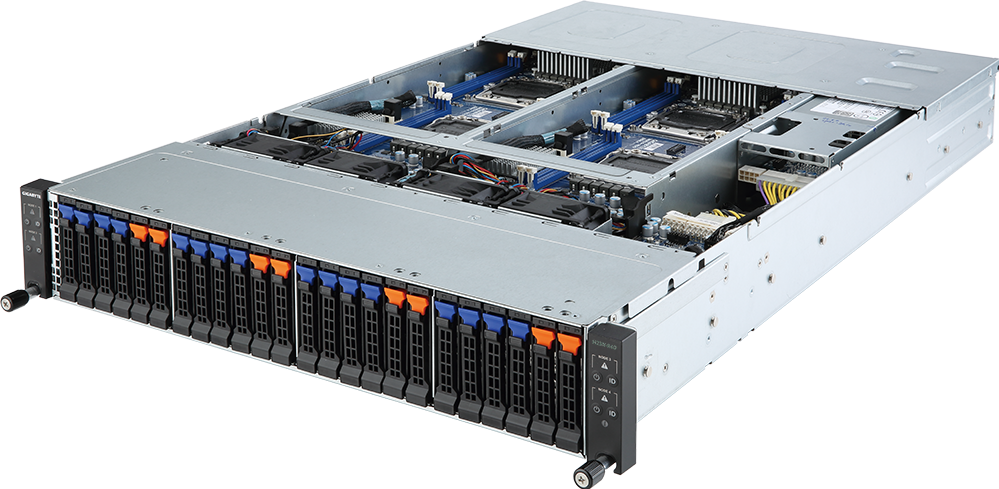

2U 4 Nodes High Density NVMe Rack Server
  • Supports 5G network infrastructure
  • 2U - 4 nodes with rear access to the node trays
  • Intel® Xeon® processor E5-2600 V3 / V4 product family
  • 8 x LGA 2011-3 sockets
  • Intel® C612 chipset
  • 32 x DDR4 slots
  • 8 x 10Gb/s SFP+ ports (Mellanox® ConnectX-3)
  • 8 x GbE LAN ports (Intel® I350)
  • 24 x 2.5” hot-swappable HDD/SSD bays
  • LSI SAS3008 controller for SAS devices supported
  • 2000W 80 PLUS Titanium redundant PSU
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
448 x 87 x 755
Motherboard
MH50-HD0
CPU
Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, I/O functions might be unavailable.
Socket
Per node:
2 x LGA 2011-3
Total:
8 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C612
Memory
Per node:
8 x DIMM slots

Total:
32 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN
Per node:
2 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-3)
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN

Total:
8 x 10Gb/s SFP+ LAN ports (Mellanox® ConnectX-3)
8 x GbE LAN ports (Intel® I350-AM2)
4 x 10/100/1000 management LAN
1 x 10/100/1000 *CMC LAN

*CMC: Chassis Management Controller, to monitor all status of computing nodes.
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Management chip in CMC board:
Integrated in Aspeed® AST1050
Support IPMI only, if iKVM is required, please use dedicated management LAN port (from AST2400) of each node
Audio
-
Storage
Per node:
4 x 2.5" SAS/SATA hot-swappable HDD/SSD bays ( from LSI SAS3008 controller)
2 x 2.5" NVMe HDD/SSD bays

Total:
24 x 2.5" hot-swappable HDD/SSD bays
- 16 x SAS/SATA hot-swappable HDD/SSD bays ( from 4 x LSI SAS3008 controllers)
- 8 x NVMe HDD/SSD bays
RAID
Intel® SATA RAID 0/1/5/10
LSI SAS RAID 0/ 1/ 10/ 1E
Peripheral Drives
-
Expansion Slots
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x16 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connector
1 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key

Total:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x16 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors
4 x M.2 slot ( Gen3 x4) - NGFF-2242/2260/2280, M-Key
Internal I/O
Per node:
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x PMBUS header
1 x PMBUS selection jumper
1 x BMC FRB jumper
1 x Clear CMOS jumper
1 x Power on selection jumper
1 x ACK selection jumper
1 x IPMB connector

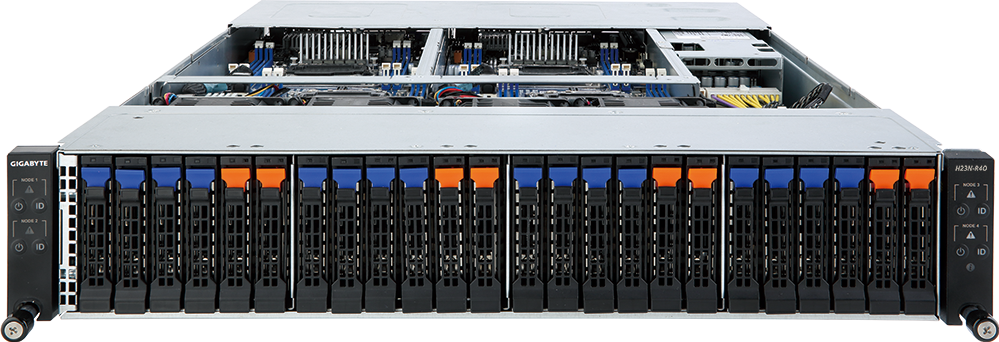

Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED

Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
*1 x CMC status LED

*Only one CMC status LED per system

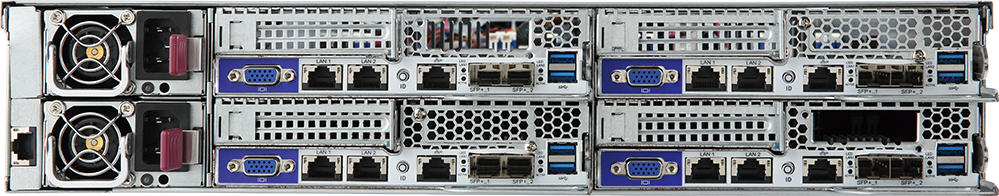

Rear I/O
Per node:
2 x USB 3.0
1 x VGA
2 x SFP+
2 x RJ45
1 x RJ45 MLAN
1 x ID button with LED

Total:
8 x USB 3.0
4 x VGA
8 x SFP+
8 x RJ45
4 x RJ45 MLAN 4 x ID button with LED
*1 x CMC MLAN

*Only one CMC MLAN per system
Backplane Board
- 16 x SAS/SATA ports
12Gb/s & 6Gb/s compatible
- 8 x NVMe ports for NVMe devices only
TPM
1 x TPM header
Power Supply
2 x 2000W redundant PSU
80 PLUS Titanium

AC input:
- 1000W: 100-127V/ 12-9.5A, 50-60Hz
- 1800W: 200-220V/ 10-9.5A, 50-60Hz
- 1980W: 220-230V/ 10-9.8A, 50-60Hz
- 2000W: 230-240V/ 10-9.8A, 50-60Hz

DC output:
Max 1000W@100-127V:
+12V/ 83.3A
+12Vsb/ 2.1A
1800W@200-220V
+12V/ 150.0A
+12Vsb/ 2.1A
1980W@220-230V
+12V/ 165.0A
+12Vsb/ 2.1A
2000W@200-240V
+12V/ 166.7A
+12Vsb/ 2.1A
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Cold Redundancy
  • Intelligent Power Management (IPM)
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1
System Fans
4 x 80x80x38mm (16’300rpm)
Operating Properties
Operating temperature: 5°C to 35°C
Non-operating temperature: 0°C to 40°C
10-80% operating humidity at 30°C
Weight
35 kg (full packaging)
Packaging Dimensions
981 X 585 X 314 mm
Packaging Content
1 x H23N-R4O
8 x CPU heatsinks
1 x Quick start guide
1 x Rail Kit
Part Numbers
- Barebone: 6NH23NR4OMR-00
- Power Supply: 25EP0-220003-C2S
- Tool-less rail kit: 25HB2-AN6103-K0R
- CMC daisy chain kit: 6NH23NR48SR-00-100
