H282-ZC0 (rev. A00)

HCI Server – AMD DP 2U 4 Nodes Front Access Server | Application: HCI & Hybrid/Private Cloud Server

Application:

HCI Hybrid/Private Cloud Server

Hardware-level root of trust support

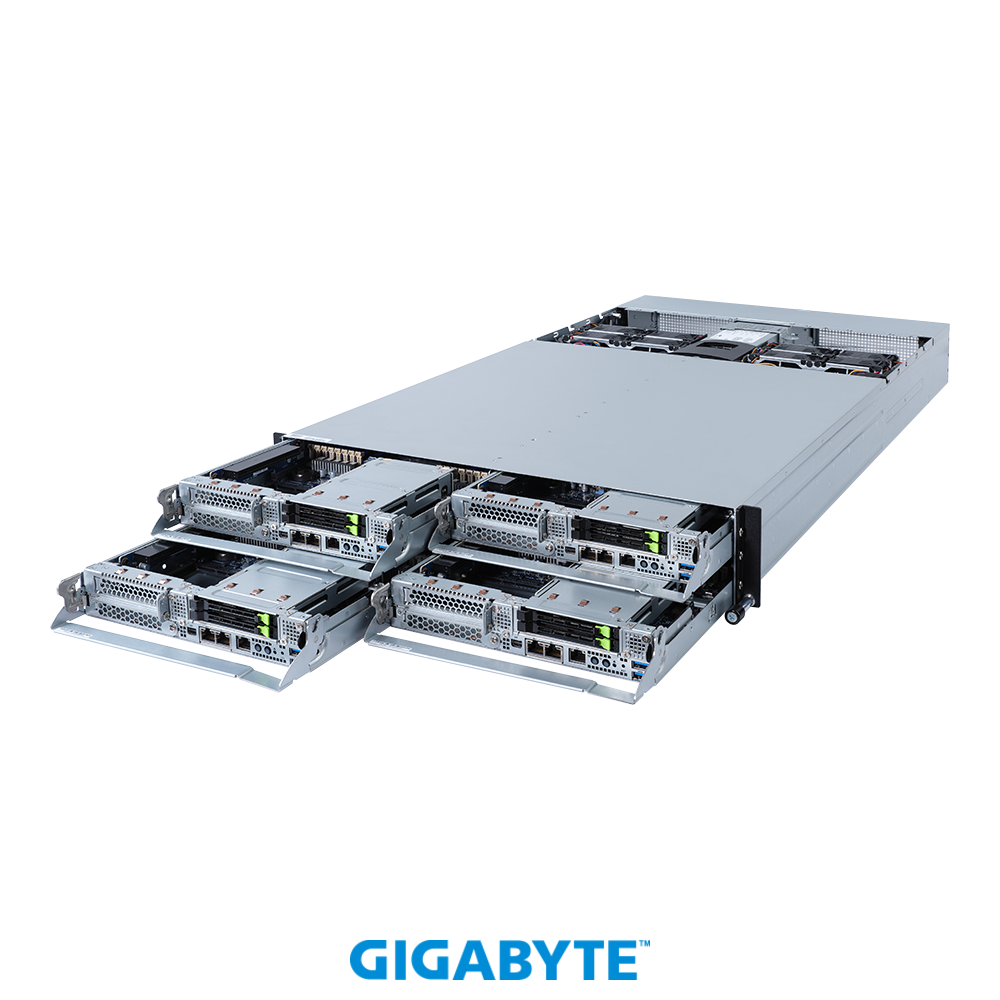

2U - 4 nodes front access server system
Dual AMD EPYC™ 7003 series processor family
8 x LGA 4094 sockets
8-Channel RDIMM/LRDIMM DDR4 per processor, 128 x DIMMs
8 x 1Gb/s LAN ports (Intel^® I350-AM2)
4 x Dedicated management ports
2 x CMC global management port
8 x 2.5" Gen4 NVMe hot-swappable SSD bays
8 x M.2 with PCIe Gen4 x4 interface
12 x Low profile PCIe Gen4 x16 expansion slots
4 x OCP 3.0 Gen4 x16 mezzanine slots
Dual 3200W (240V) 80 PLUS Platinum redundant PSU

Request a Quote

COMPARE

1/5

Select All

Cancel All Download

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U 4 Nodes - Front access
447 x 87.5 x 902

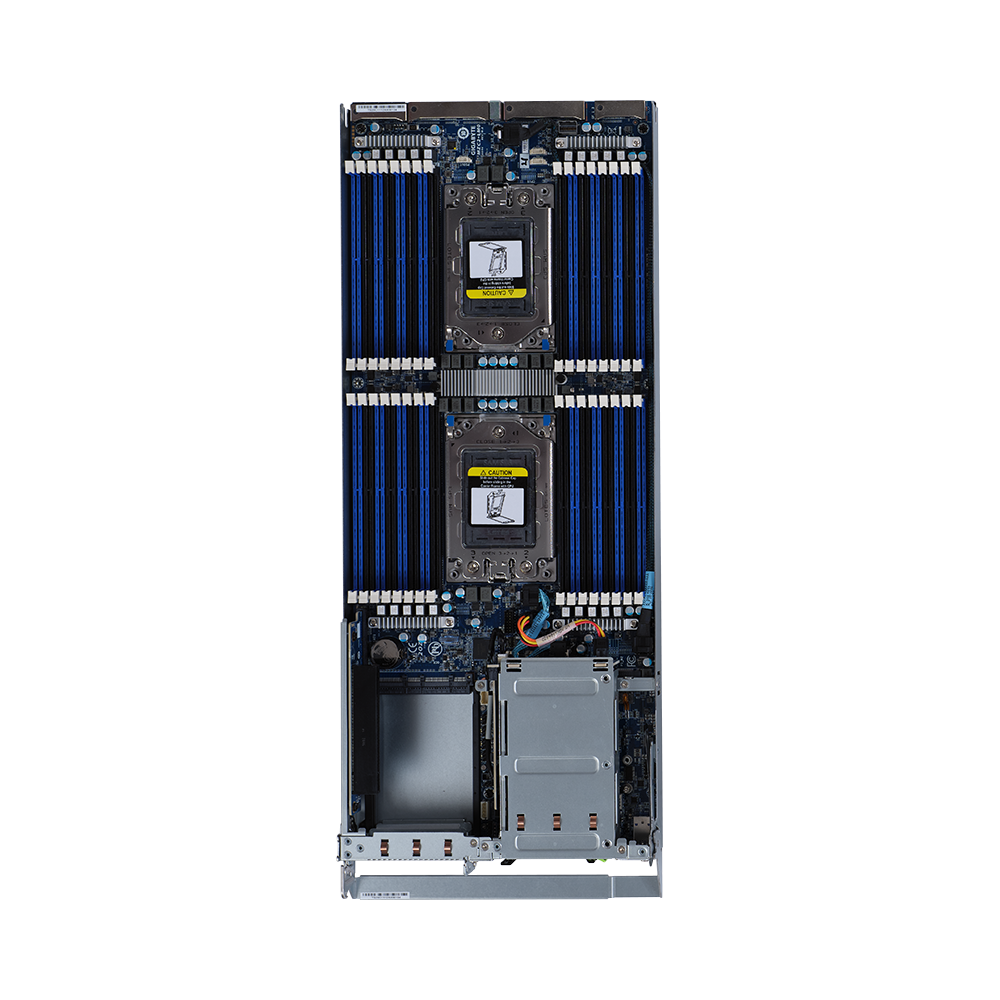

Motherboard

MZC2-LM0 Rev. 1.0

CPU

AMD EPYC™ 7003 series processor family
Dual processors, 7nm technology
Up to 64-core, 128 threads per processor
CPU 200W, fully support, ambient 35°C
CPU 240W, conditional support, ambient 35°C, PCIe card only x1pcs per Node
CPU 280W, conditional support, ambient 25°C, PCIe card only x1pcs per Node

NOTE:
If only one CPU is installed, some PCIe or memory functions might be unavailable

Compatible with AMD EPYC™ 7002 series processor family

Socket

Socket SP3

Chipset

System on Chip

Memory

Per node:
32 x DIMM slots

Total:
128 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC

LAN

Per node:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
1 x Dedicated management port

Total:
8 x 1GbE LAN ports (1 x Intel^® I350-AM2)
4 x Dedicated management ports

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Management chip on CMC board:
Integrated in Aspeed^® AST2520A2-GP

Audio

N/A

Storage

Per node:
2 x 2.5" 7mm slim type NVMe/SATA hot-swappable HDD/SSD bays

Total:
8 x 2.5" 7mm slim type NVMe/SATA hot-swappable HDD/SSD bays

SAS

N/A

RAID

N/A

Peripheral Drives

N/A

Expansion Slots

Per node:
1 x Low profile half-length slot with PCIe x16 (Gen4 x16 bus) in front side (CPU_0)
2 x Full height half-length slots with PCIe x16 (Gen4 x16 bus) in rear side (CPU_1)
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0

2 x M.2 slots from CPU_0 and CPU_1:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2260/2280 cards
- CPU TDP is limited to 240W if using M.2 device

Total:
4 x Low profile half-length slots with PCIe x16 (Gen4 x16 bus) in front side (CPU_0)
8 x Full height half-length slots with PCIe x16 (Gen4 x16 bus) in rear side (CPU_1)
4 x OCP 3.0 mezzanine slots with PCIe Gen4 x16 bandwidth from CPU_0

8 x M.2 slots from CPU_0 and CPU_1:
- M-key
- PCIe Gen4 x4
- Supports NGFF-2260/2280 cards
- CPU TDP is limited to 240W if using M.2 device

Internal I/O

Per node:
2 x M.2 slots
1 x COM header
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector

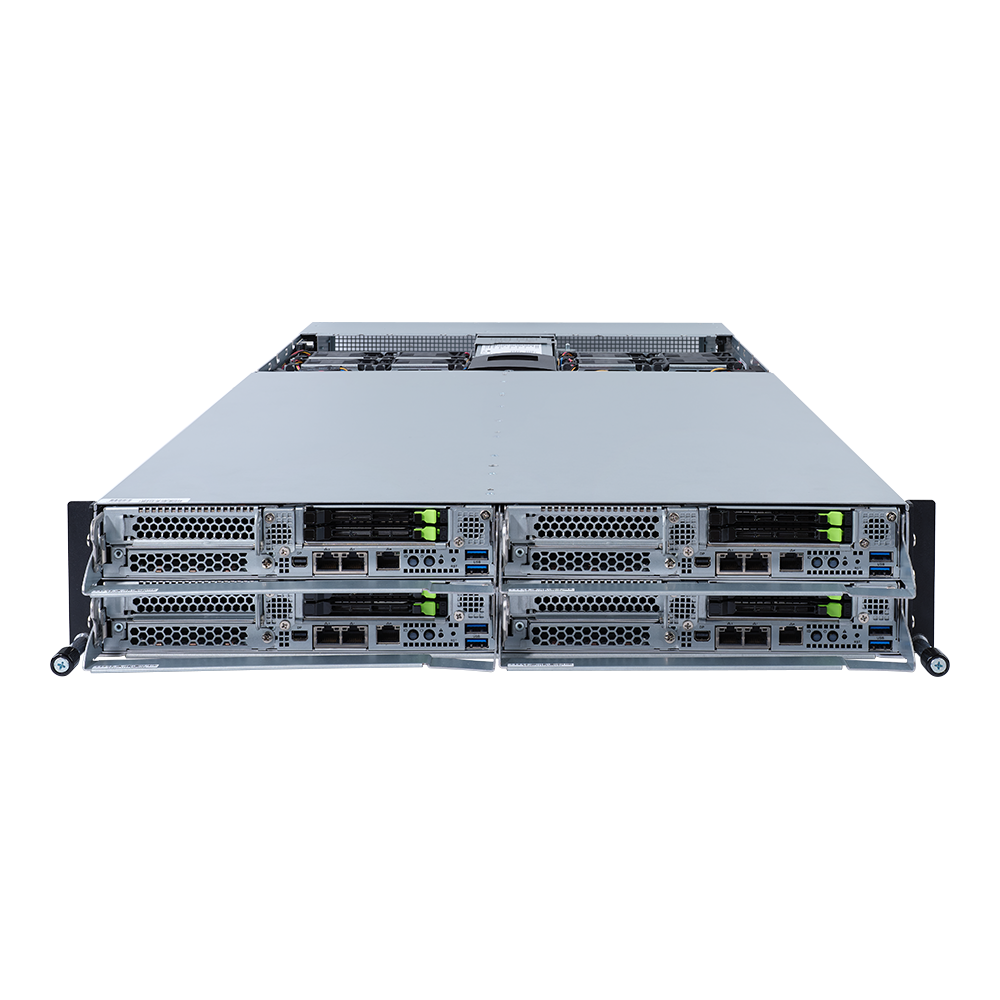

Front I/O

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
2 x USB 3.0
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN

Total:
4 x Power button with LED
4 x ID button with LED
4 x Status LED
4 x System reset button
8 x USB 3.0
4 x Mini-DP
8 x RJ45
4 x RJ45 MLAN

Rear I/O

2 x CMC global management ports

1 x gloabl OCP 3.0 slot
- Dedicated support for optional NVIDIA MCX565M-CDAB multi-host adapter from system BOM version A02

Backplane I/O

2 x ports per node
Speed and bandwidth: SATA 6Gb/s or PCIe Gen4 x4 per port

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply

2 x 3200W PSUs
80 PLUS Platinum

Input:
100-127V~/ 14A
220-240V~/ 16A
Output:
1106W@100-127V
2434.5W@200-208V
2828.1W@214-234V
3234W@240V

NOTE: The system power supply requires C19 type power cord

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 8.3 ( x64) or later

SUSE Linux Enterprise Server 12 SP5 ( x64) or later
SUSE Linux Enterprise Server 15 SP2 ( x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later

Citrix Hypervisor 8.2.0 or later

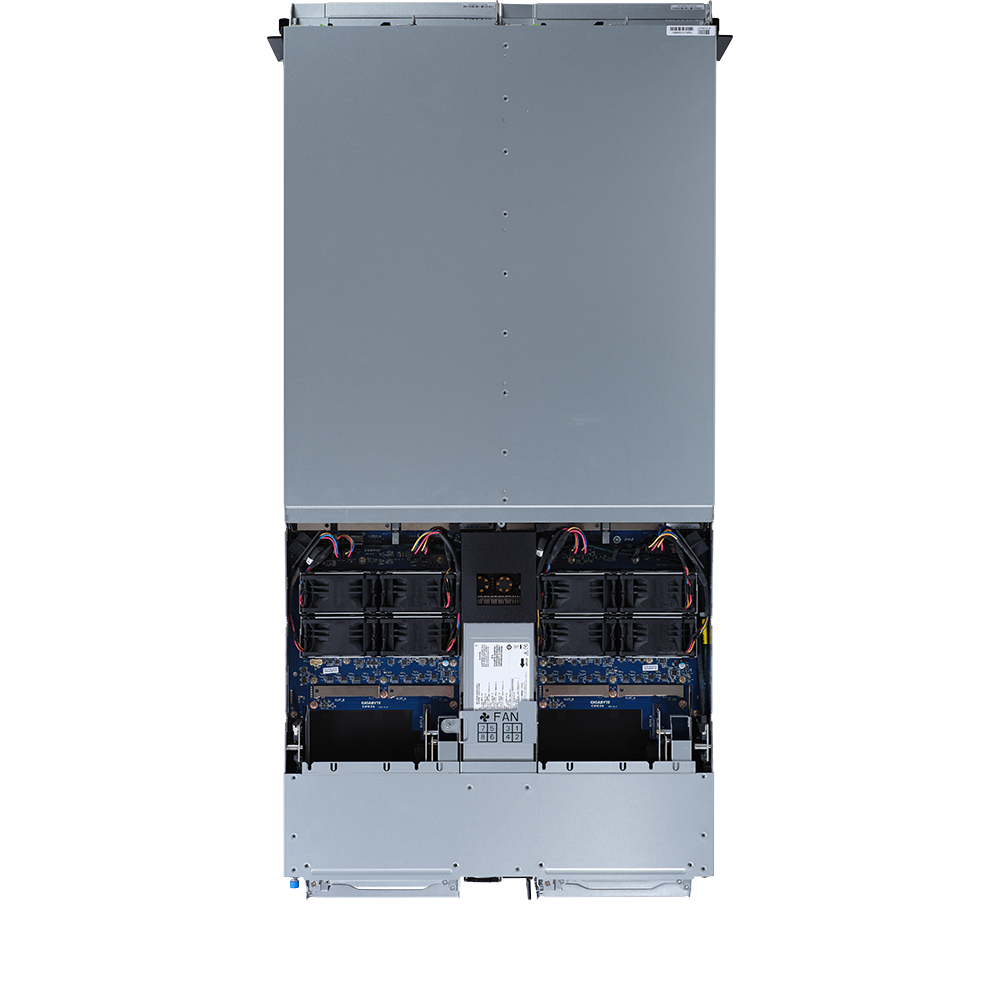

System Fans

8 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1180 x 779 x 300 mm

Packaging Content

1 x H282-ZC0
8 x CPU heatsinks
1 x Rail Kit

Part Numbers

Barebone package: 6NH282ZC0MR-00 Rev. A00
Spare parts:
- Motherboard: 9MZC2LM0NR-00
- Rail kit: 25HB2-A86104-K0R
- CPU heatsink: 25ST1-423203-A0R/ 25ST1-44320J-A0R
- Back plane board: 9CBPH022NR-00
- NVMe PCIe Card: 9CNV3152NR-00
- Power Supply: 25EP0-232001-D0S
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R (optional)
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R (optional)
