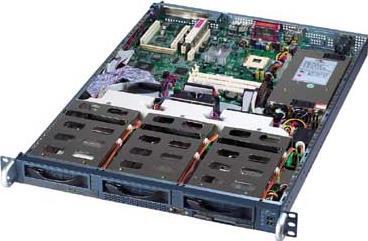

GS-SR112

Legacy | Software updates supported

Rev. 1.0

Dimensions: 19"W x 1.73"H x 23"D (1U)
Three Hot-Swap Ultra 160 SCA/80-Pin 3.5" SCSI Drive Bays
Intel^® 845, ICH2, ATI^® Rage XL 8MB
Intel^® P4 Processor (Socket 478/400MHz FSB/2.2GHZ+)
Max. 3GB Un-Buffered (ECC) PC-133 Memory in 3 Angle DIMM Slots
Adaptec^® 7899G Dual Ultra 160 SCSI Channels
Dual Intel^® 82550PM 10/100Mbps Fast Ethernet with Advanced Software Functions
1 PCI 32-Bit/33MHz Full-Height Slot
Optional Adaptec Zero Channel RAID Card (SCSI 2005S /Raptor) with RAID 0, 1, 5, 0+1
Winbond^® W83910F BMC Chip with IPMI 1.0/Partial 1.5 Support

SPECIFICATIONS

CPU

Supports Intel^® Pentium 4 (400MHz FSB) up to 2.2 GHz above

Chipset

Intel^®Brookdale 845 MCH and ICH2

LAN

Dual Intel^® 82550 10/100Mbps Ethernet LAN
Adapter Fault Tolerance（AFT）
Adaptive Load Balancing（ALB）
Fast EtherChannel*（FEC）
Wake On LAN (WOL) supported

Video

Integrated ATI Rage XL video chip with 8MB memory

RAID

Three Hot Swap SCSI support RAID function (Optional Adaptec Raptor ZCR)

Expansion Slots

1 * 32bit / 33Mhz * 4

Power Supply^[#1]

300W
100V~240V (Plus or minus 10 percent)
50~60Hz(Plus or minus 6 percent)

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.

SUPPORT

Downloads

Driver
BIOS

Manual
Support List

Online Support

Driver

BIOS

QVL

All
All
Windows XP 32bit
Windows NT
Windows 2000

Chipset Update Patch

Version

Size

Date

Intel INF Update Utility

Version : 3.10.1011

2.51 MB

Apr 18, 2002

Download

OS: Windows 2000

Intel Ultra ATA Storage Driver

Version : 6.20

5.62 MB

Apr 18, 2002

Download

OS: Windows NT,Windows 2000,Windows XP 32bit

Latest Intel 845 chipset driver
Supports up to 152GB
Supports 48bit HDD with installing Windows 2000

Version : 1.1

1.81 MB

Jun 26, 2002

Download

OS: Windows 2000

Latest Intel 845 chipset driver
Supports up to 152GB
Supports 48bit HDD with installing Windows 2000

Version : 3.11

1.5 MB

Jun 26, 2002

Download

OS: Windows 2000

LAN

Version

Size

Date

LAN driver and utility

Version : 6.1

60.04 MB

Apr 19, 2002

Download

OS: Windows NT,Windows 2000

SCSI

Version

Size

Date

Driver for Adaptec AIC-7899G

Version : 3.10 a

1.31 MB

Apr 18, 2002

Download

OS: Windows NT,Windows 2000

VGA

Version

Size

Date

Driver fro ATI-Range XL

Version : J5.23.0_T02

5.64 MB

Apr 18, 2002

Download

OS: Windows NT

Driver for AI-Range XL

Version : J5.23.0_T02

5.9 MB

Apr 18, 2002

Download

OS: Windows 2000

BIOS

Description

Version

Size

Date

Fix ACPI system test (Win 2K) fail
AMI flash utility support
Fix CPU temperature uncorrect in BIOS setup
Fix WOL S4 fail
Backplane 2nd hardware monitor (w83791d) support

Version : F4

0.37 MB

May 16, 2002

Download

Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.

Manual

Description

Version

Size

Date

Release version

Version : 1.0

0.42 MB

Jul 31, 2002

Download

English
