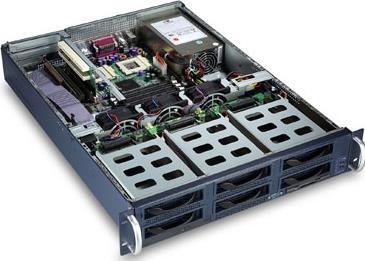

GS-SR202Legacy | Firmware updates supported
- Dual Intel® Socket 370 processors up to 1 GHz
- Six SCSI HDD Trays
- Dual Intel 10/100 LAN
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual Intel® Pentium Ⅲ processors up to 1 GHz
Chipset
- ServerSet ⅢLE chipset
- North Bridge：CNB30LE
- South Bridge：OSB4
LAN
- Two Intel® Pro/100+ Server Ethernet Controllers（Intel 82559）supports 100BASE-T and 10BASE-T, RJ45 output
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- Wake On LAN（WOL）
Video
- ATI Rage XL with 8MB memory
Storage
- 6 SCA II HDD Trays
Expansion Slots
- Two full- size PCI slots（64bit/66MHz）
- One low-profile slot（32bit/33MHz）
Power Supply[#1]
- 300W ; 90V~250V ; 47~63Hz
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
