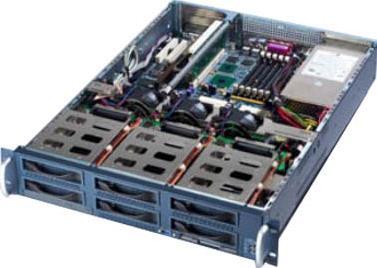

GS-SR222Legacy | Software updates supported

  • Dimensions: 19"W x 3.46"H x 26.15"D (2U)
  • Six Hot-Swap Ultra 160 SCA/80-Pin 3.5" SCSI Drives
  • Intel® E7500, ICH3-S, Dual P64H2, ATI® Rage XL 8MB
  • Dual Intel® Xeon Processors with 512K L2 Cache
  • Max. 12 GB Registered (ECC) DDR-266 (Dual channels, 3.2GB/s Bandwidth)
  • Adaptec® 7899W Dual Ultra 160 SCSI Channels
  • Dual Intel® 82544GC PCI-X Gigabit Ports to Ensure GbE Fault Tolerance
  • 2 PCI-X/133,100MHz Full-Height Slots and 1 PCI-X/100MHz Low-Profile Slot (3.3V)
Save
This model has been saved to favorite!
  • Specifications
  • Support
  • Related Resources

Specifications

CPU
  • Dual Intel® Xeon® Prestonia CPUs (400 Mhz FSB)
Chipset
  • Intel® Plumas E7500 Chipset (MCH+ICH3)
  • Intel P64H2
LAN
  • Intel®82544GC Gigabit Controller
  • Wake On LAN (WOL)
  • Adapter Fault Tolerance (AFT)
  • Adaptive Load Balancing (ALB)
  • EtherChannel* (FEC/GEC)
Video
  • Built-In ATI Rage XL video chip with 8MB memory
Storage
  • 6 front-accessible hot-swap SCSI HDD
Expansion Slots
  • 2 PCI-X/133,100MHz Full-Height Slots
  • 1 PCI-X/100MHz Low-Profile Slot (3.3V)
Power Supply[#1]
  • 460W
  • 100V~240V (Plus or minus 10 percent)
  • 50~60Hz (Plus or minus 6 percent)

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#4] All trademarks and logos are the property of their respective owners.
