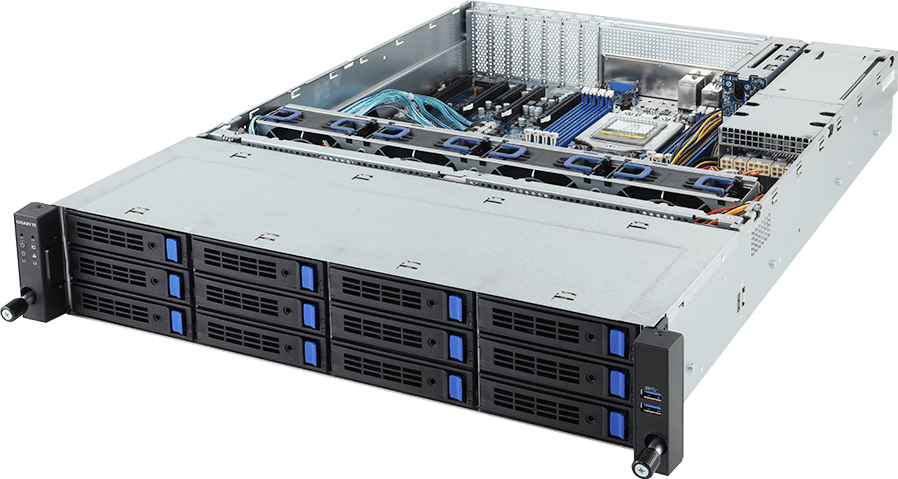

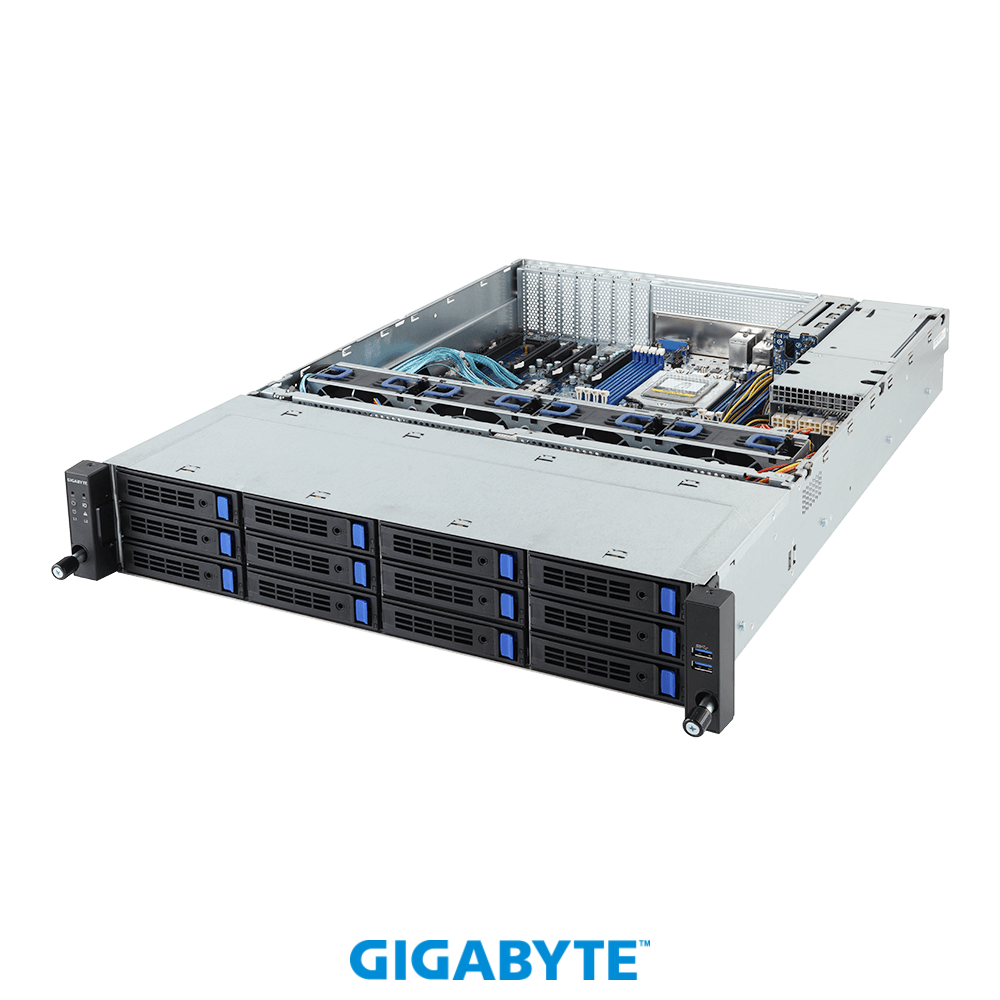

Rack Server - AMD EPYC™ 7003/7002 - 2U UP 12+2-Bay SATA/SAS
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 5 x LP PCIe Gen3 x16 and x8 slots
- Dual 800W 80 PLUS Platinum redundant power supply
Specifications
Dimensions (WxHxD, mm)
2U
430 x 87 x 710
430 x 87 x 710
Motherboard
MZ01-CE1 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s.
LAN
Rear side:
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives
SAS card is required for SAS devices support
12 x 3.5"/2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Slot_7: PCIe x16 (Gen3 x16) low-profile slot
Slot_5: PCIe x16 (Gen3 x16) low-profile slot
Slot_4: PCIe x8 (Gen3 x8) low-profile slot
Slot_3: PCIe x16 (Gen3 x16) low-profile slot
Slot_1: PCIe x16 (Gen3 x16) low-profile slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards
Slot_5: PCIe x16 (Gen3 x16) low-profile slot
Slot_4: PCIe x8 (Gen3 x8) low-profile slot
Slot_3: PCIe x16 (Gen3 x16) low-profile slot
Slot_1: PCIe x16 (Gen3 x16) low-profile slot
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
2 x COM headers
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
2 x COM headers
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

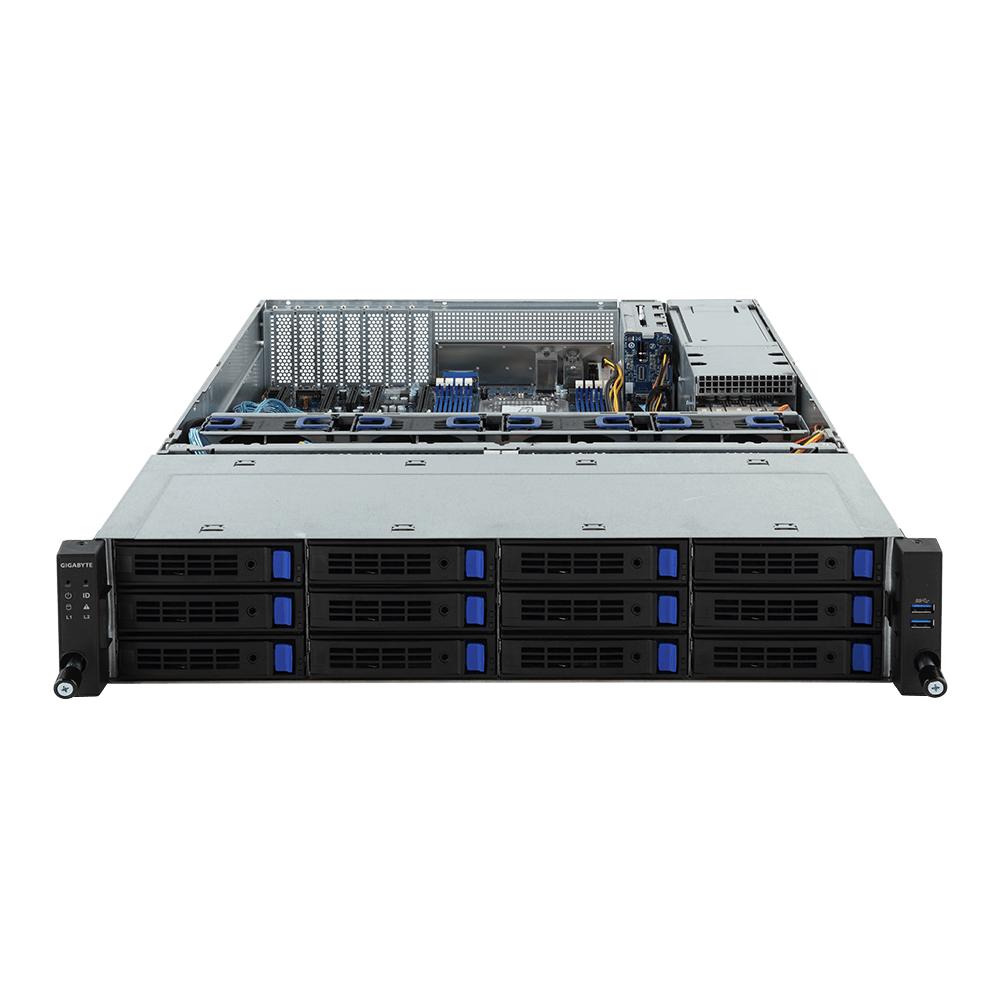

Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

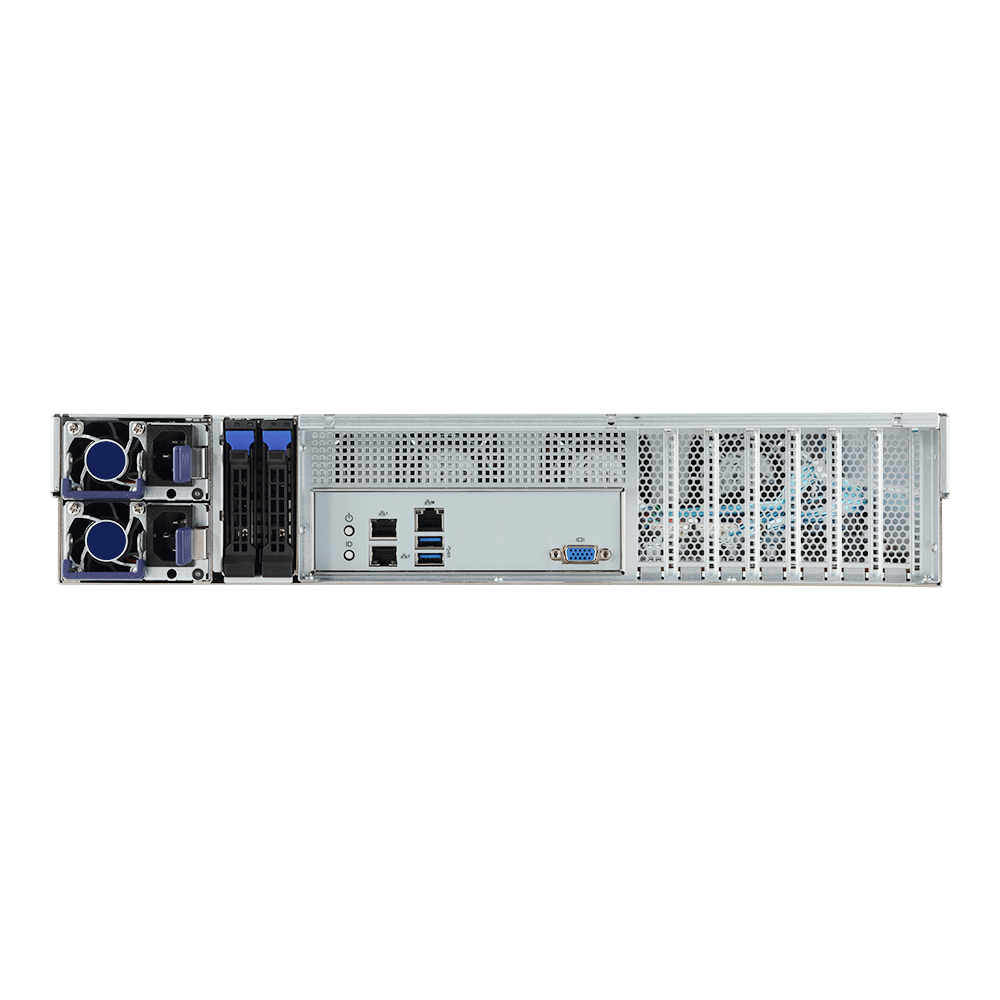

Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s
SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply[#1]
Dual 800W 80 PLUS Platinum redundant power supply
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R271-Z00
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
- Barebone package: 6NR271Z00MR-00-B*
- Motherboard: 9MZ01CE1MR-00-3*
- Rail Kit: 25HB2-3A0202-K0R
- Backplane board - CBP20C3: 9CBP20C3NR-00
- CPU heatsink: 25ST1-15320E-J1R
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
- Motherboard: 9MZ01CE1MR-00-3*
- Rail Kit: 25HB2-3A0202-K0R
- Backplane board - CBP20C3: 9CBP20C3NR-00
- CPU heatsink: 25ST1-15320E-J1R
- Fan module: 25ST2-883829-D0R
- Power supply: 25EP0-208004-L0S
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
