• Intel® Xeon® Processor E5-2600 V2 Product Family
    Deployable through a simple BIOS update, the support of Intel Xeon processors E5-1600 V2 & 2600 V2 product families delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
    Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key.
  • 10GbE LAN
  • Dual GbE LAN
  • PCIe Gen.3
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

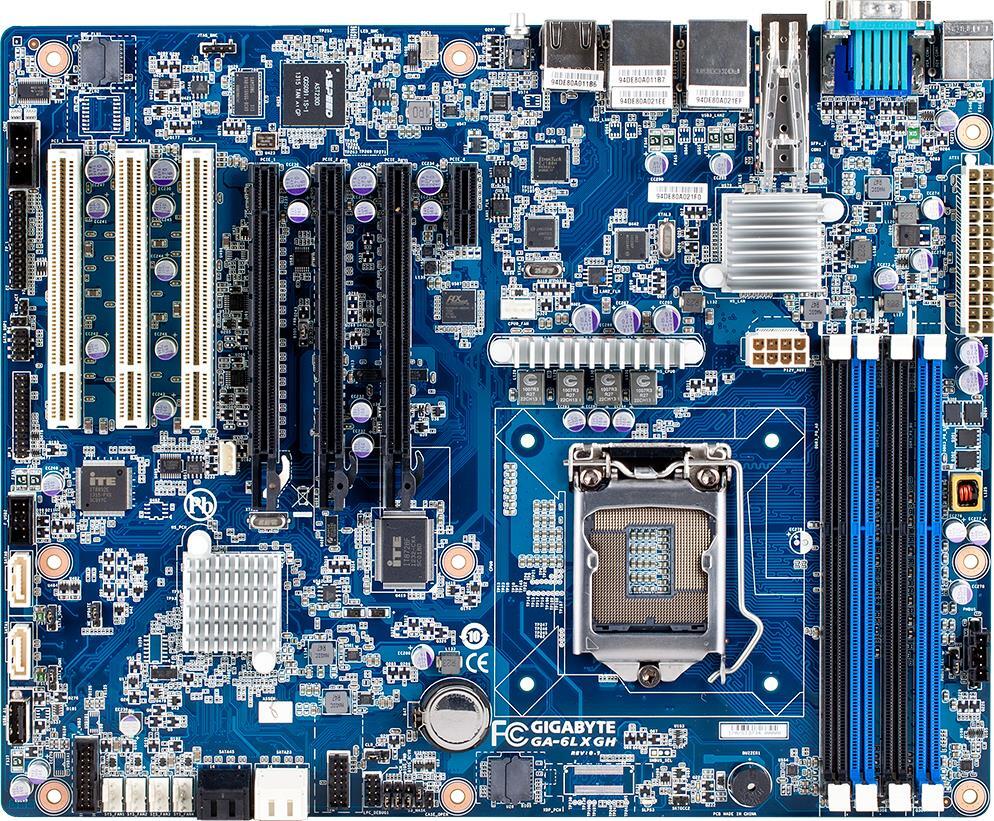

SPECIFICATIONS

Form Factor
ATX
305W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ i3 processors
Socket
1 x LGA 1150
Chipset
Intel® C224
Memory
4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600 MHz
LAN
2 x GbE LAN ports (Intel® I210)
1 x 10GbE SFP+ LAN port (Intel® 82599)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots

or (via PCIe switch):

2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots

or (via PCIe switch):

1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x16 (Gen3 x4 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x BIOS upgrade ROM
1 x Battery socket
1 x Case open intrusion header
1 x S3 Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x TPM header
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 vertical Type A port
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x ME recovery jumper
1 x IPMB connector
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x BMC upgrade ROM
1 x CPU fan header
1 x BMC readiness LED

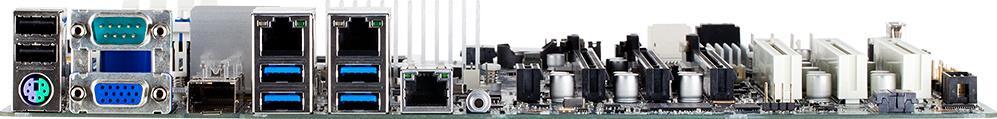

Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
3 x RJ45
1 x SFP+
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2008 SP1 (x32)
Windows Server 2012 (x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SUSE Linux Enterprise Server 11.3 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cable (500mm)
Reference Numbers
Retail: 9M6LXGHMR-00
Bulk: 9M6LXGHNR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • All
  • All
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows 7 64bit
  • Windows 7 32bit
  • SuSE Linux Enterprise 11.3 64bit
  • SuSE Linux Enterprise 11.3 32bit
  • Red Hat Enterprise Linux Server 6.4 64bit
  • Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
2014/05/15
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Etron USB 3.0 Driver
Version : 0.118
22.85 MB
2013/11/26
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® USB 3.0 Driver
Version : 3.0.0.16
5.2 MB
2014/05/20
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
