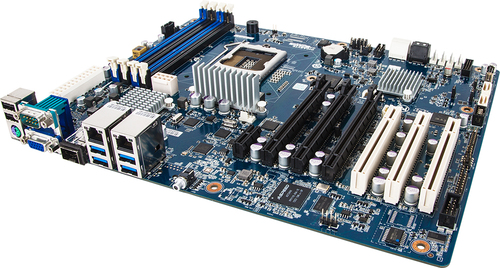

- GA-6LXGL

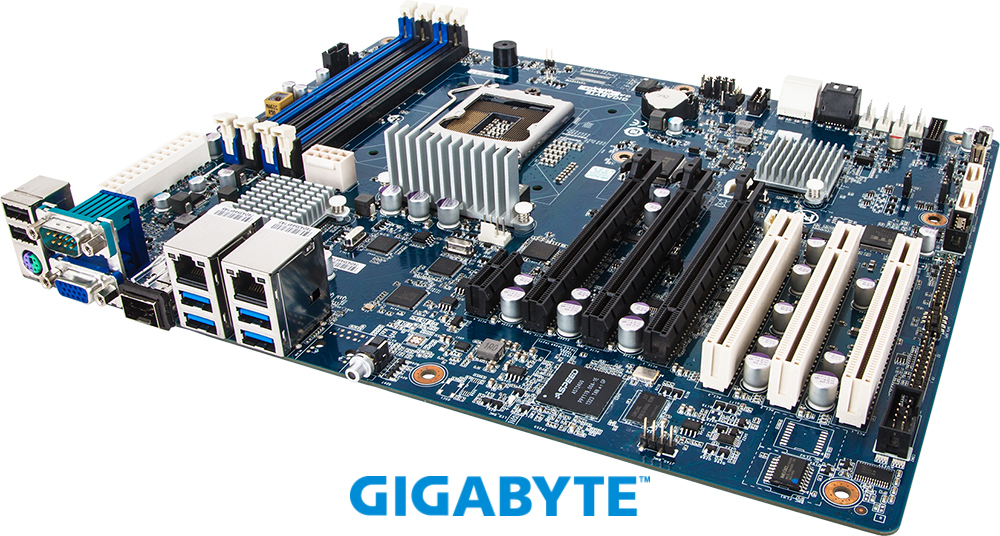

GA-6LXGL
Discontinued

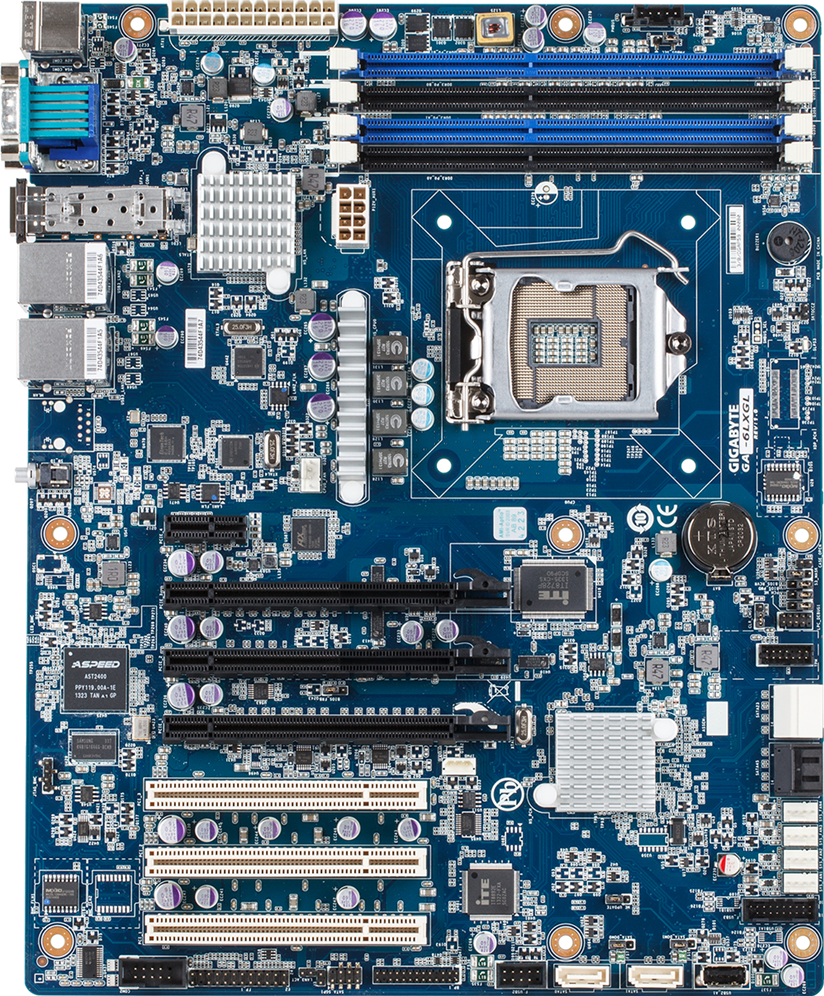

Intel® C224 chipset
- ATX form factor
- Intel® C224 chipset
- Intel® Xeon® processor E3-1200 V3 product families
- 2 x GbE LAN ports (Intel® I210)
- 1 x 10GbE SFP+ LAN port (Intel® 82599)
- 4 x DIMM slots, up to 32GB UDIMM ECC
- 4 x SATA III 6Gb/s, 2 x SATA II 3Gb/s
- Aspeed® AST2400 controller (VGA Only)
- Buy online
-
Intel® Xeon® Processor E5-2600 V2 Product FamilyDeployable through a simple BIOS update, the support of Intel Xeon processors E5-1600 V2 & 2600 V2 product families delivers the benefits of the 22nm tri-gate process technology to the high end server industry. Those benefits include, among others, higher frequencies, higher core counts (up to 12 cores / 24 threads) and larger last-level caches, but especially a much more varied mix of core/frequencies with notably the introduction of a new dual socket workstation segment. This new die shrink also allows for overall energy efficiency increase, with up to 30% average decrease in idle power consumption.
Finally, virtualization applications will benefit from increased performance thanks to the Advanced Programmable Interrupt Controller (APIC) technology, and more security features are included in the mix as well, such as the Intel® Platform Protection Technology with OS Guard, and Intel® Data Protection Technology with Secure Key. -
10GbE LAN
-
Dual GbE LAN
-
PCIe Gen.3
-
VMware ReadyThe VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere. The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ i3 processors
Supports 4th gen Intel® Core™ i3 processors
Socket
1 x LGA 1150
Chipset
Intel® C224
Memory
4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600 MHz
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600 MHz
LAN
2 x GbE LAN ports (Intel® I210)
1 x 10GbE SFP+ LAN ports (Intel® 82599)
1 x 10GbE SFP+ LAN ports (Intel® 82599)
Video
Integrated in Aspeed® AST2400-VB
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
2 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x16 (Gen3 x4 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
2 x PCIe x16 (Gen3 x8 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
or (via PCIe switch):
1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x16 (Gen3 x4 bus) slots
1 x PCIe x1 (Gen2 x1 bus) slot
3 x PCI slots
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x BIOS upgrade ROM
1 x Battery socket
1 x Case open intrusion header
1 x S3 Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x TPM header
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 vertical Type A port
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x ME recovery jumper
1 x IPMB connector
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x BMC upgrade ROM
1 x CPU fan header
1 x BMC readiness LED
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x BIOS upgrade ROM
1 x Battery socket
1 x Case open intrusion header
1 x S3 Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x TPM header
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 vertical Type A port
1 x SATA port 1 DOM support jumper
1 x SATA port 0 DOM support jumper
1 x ME recovery jumper
1 x IPMB connector
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x BMC upgrade ROM
1 x CPU fan header
1 x BMC readiness LED

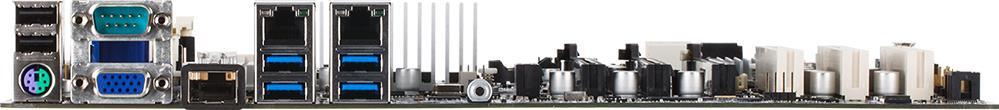

Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
2 x RJ45
1 x SPF+
1 x ID button with LED
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
2 x RJ45
1 x SPF+
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 (x64)
Windows Server 2008 SP1 (x32)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP1 (x32)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6LXGLMR-00
Bulk: 9M6LXGLNR-00
Bulk: 9M6LXGLNR-00
