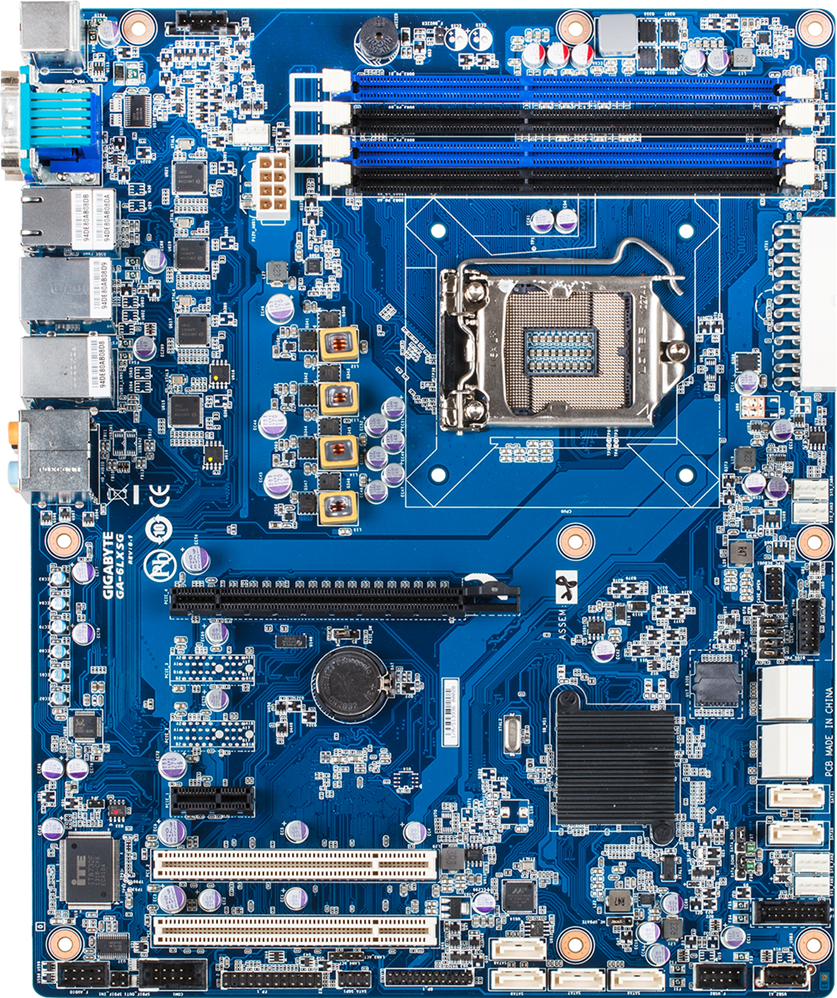

GA-6LXSG
Legacy | Software updates supported
Intel® H87 chipset
- ATX form factor
- Intel® H87 Express chipset
- Intel® Xeon® processor E3-1200 V3 product families
- 4 x GbE LAN ports (Intel® I210)
- 4 x DIMM slots, up to 32GB UDIMM
- 10 x SATA III 6Gb/s
- 7.1 HD audio
-
Value Champion for Storage and Hosting ApplicationsWith 10 high speed SATA ports, this model is an affordable solution to build entry-level systems relying mainly on high storage capacity. SMB storage, NAS, file server, web hosting, the possibilities are large for this high feature, high value motherboard.
-
Xeon E3V3E5V2
![]()
-
Quad GbE LAN
![]()
-
PCIe Gen.3
![]()
-
Red Hat Certified Hardware
![]()
GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
SPECIFICATIONS
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ processor family
Supports 4th gen Intel® Core™ processor family
Socket
1 x LGA 1150
Chipset
Intel® H87
Memory
4 x DIMM slots
Supports non-ECC, un-buffered UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
Supports non-ECC, un-buffered UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
4 x GbE LAN ports (Intel® I210)
Video
Integrated graphics processor
1 x VGA port, supporting a maximum resolution of 1920x1200
1 x VGA port, supporting a maximum resolution of 1920x1200
Audio
Realtek® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations
Supports 2/4/5.1/7.1 channel configurations
SAS
-
SATA
6 x SATA III 6Gb/s ports via Intel® H87 chipset
4 x SATA III 6Gb/s ports via Marvell® 88SE9230 chipset
4 x SATA III 6Gb/s ports via Marvell® 88SE9230 chipset
RAID
Intel® SATA RAID 0/1/10/5
Marvell® SATA RAID 0/1/10
Marvell® SATA RAID 0/1/10
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x1 (Gen2 x1 bus) slot
2 x PCI slots
1 x PCIe x1 (Gen2 x1 bus) slot
2 x PCI slots
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
10 x SATA III 6Gb/s ports
1 x TPM header
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 Type A connector
1 x Front panel header
1 x Back plane board header
1 x Front panel audio header
4 x System fan headers
1 x CPU fan header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Serial port header
1 x SATA SGPIO header
1 x Case open intrusion header
1 x Clear CMOS jumper
1 x SATA port 0 DOM Support jumper
1 x SATA port 1 DOM Support jumper
1 x Clear password jumper
1 x BIOS Recovery jumper
1 x ME Recovery jumper
1 x 8-pin ATX 12V power connector
10 x SATA III 6Gb/s ports
1 x TPM header
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 Type A connector
1 x Front panel header
1 x Back plane board header
1 x Front panel audio header
4 x System fan headers
1 x CPU fan header
1 x S/PDIF-In header
1 x S/PDIF-Out header
1 x Serial port header
1 x SATA SGPIO header
1 x Case open intrusion header
1 x Clear CMOS jumper
1 x SATA port 0 DOM Support jumper
1 x SATA port 1 DOM Support jumper
1 x Clear password jumper
1 x BIOS Recovery jumper
1 x ME Recovery jumper

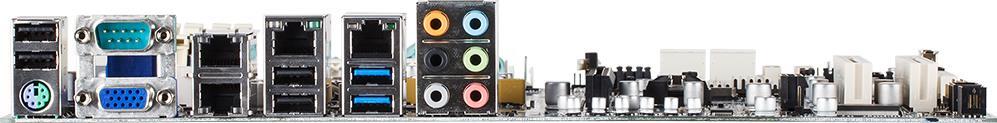

Rear I/O
2 x USB 3.0
4 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
4 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
4 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
4 x RJ45
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows 7 SP1 Ultimate (x86/x64)
Windows 8 Enterprise (x86/x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
Windows Server 2012 (x64)
Windows 7 SP1 Ultimate (x86/x64)
Windows 8 Enterprise (x86/x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
Board Management
-
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6LXSGMR-00
Bulk: 9M6LXSGNR-00
Bulk: 9M6LXSGNR-00
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
