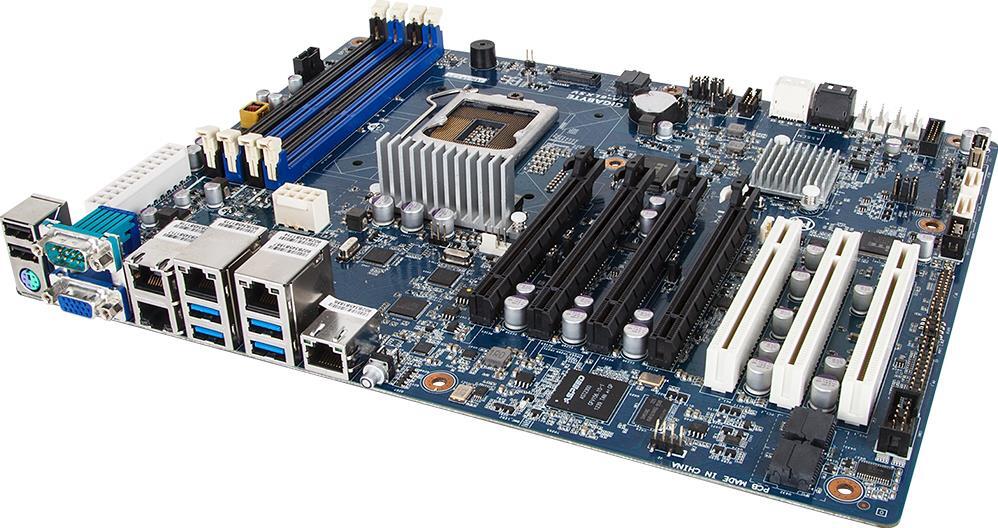

GA-6LXSV
(rev. 1.2)
Discontinued
Intel® C224 chipset
- ATX form factor
- Intel® C224 chipset
- Intel® Xeon® processor E3-1200 V3 product families
- 4 x GbE LAN ports (Intel® I210)
- 4 x DIMM slots, up to 32GB UDIMM ECC
- 4 x SATA III 6Gb/s, 2 x SATA II 3Gb/s
- Aspeed® AST2300 controller
- Buy online
-
The Multipurpose Board for ProfessionalsDesigned as an ultra-flexible ATX solution, this model is suitable for both tower and rack integration and fits in most of the professional applications scenarios thanks to its versatile connectivity and expansion platform. Server, workstation, industrial PC, high performance embedded system, this motherboard will be up to the task and deliver both performance and durability through its DIMM placement optimized for better thermal properties and robust build with the selection of high reliability components.
-
Xeon E3V3E5V2
![]()
-
Quad GbE LAN
![]()
-
PCIe Gen.3
![]()
-
VMware Ready
![]()
The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere. The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations. -
Red Hat Certified Hardware
![]()
GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
ATX
305W x 244D (mm)
305W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 V3 product family
Supports 4th gen Intel® Core™ i3 processors
Supports 4th gen Intel® Core™ i3 processors
Socket
1 x LGA 1150
Chipset
Intel® C224
Memory
4 x DIMM slots
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E3-1200 V4 processors only
LAN
4 x GbE LAN ports (Intel® I210)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
-
SATA
4 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports
2 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x16 (Gen3 x4 bus) slot
1 x PCIe x16 (Gen2 x1 bus) slot
3 x PCI slots
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x16 (Gen3 x4 bus) slot
1 x PCIe x16 (Gen2 x1 bus) slot
3 x PCI slots
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x Case open intrusion header
1 x Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
2 x ME recovery jumpers
1 x Clear CMOS jumper
1 x TPM header
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 Type A connector
2 x SATA DOM support jumpers
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x IPMB connector
1 x 8-pin ATX 12V power connector
1 x PMBus Select jumper
1 x PMBus connector
1 x Case open intrusion header
1 x Power On Select jumper
1 x BIOS recovery jumper
1 x Skip supervisor password jumper
2 x ME recovery jumpers
1 x Clear CMOS jumper
1 x TPM header
1 x CPU fan header
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x USB 2.0 Type A connector
2 x SATA DOM support jumpers
1 x Back plane board header
1 x SGPIO header
1 x Front panel header
1 x Serial header
1 x IPMB connector
Rear I/O
4 x USB 3.0
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED
2 x USB 2.0
1 x PS/2
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2008 R2 SP1 (x64)
Windows Server 2008 SP2 (x86)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP2 (x86)
Windows Server 2012 (x64)
Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)
SUSE Linux Enterprise Server 11.3 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
1 x Dual USB 3.0 ports bracket
1 x Dual USB 2.0 ports bracket
1 x Serial port bracket
4 x SATA III 6Gb/s cables (600mm)
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
1 x Dual USB 3.0 ports bracket
1 x Dual USB 2.0 ports bracket
1 x Serial port bracket
4 x SATA III 6Gb/s cables (600mm)
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M6LXSVMS-00
Bulk: 9M6LXSVNS-00
Bulk: 9M6LXSVNS-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
QVL
- All
- All
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows Server 2008 R2 64bit
- Windows Server 2008 R2
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows 7 64bit
- Windows 7 32bit
- SuSE Linux Enterprise 11.3 64bit
- SuSE Linux Enterprise 11.3 32bit
- Red Hat Enterprise Linux Server 6.4 64bit
- Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
May 15, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
May 16, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Etron USB 3.0 Driver
Version : 0.118
22.85 MB
Nov 26, 2013
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
Feb 10, 2014
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
BIOS
Description
Version
Size
Date
1. Support New 4th Generation Intel Core Processors
2. Update ME FW to SPS_EN_03.00.05.128.0_PV-D_R_LPT
3. Fine-tune GPIO configuration
4. Fixed the issue "RAID OpRom cannot be used"
2. Update ME FW to SPS_EN_03.00.05.128.0_PV-D_R_LPT
3. Fine-tune GPIO configuration
4. Fixed the issue "RAID OpRom cannot be used"
Version : R01
10.1 MB
May 12, 2014
