• The Ideal Base for SMB Server Infrastructure

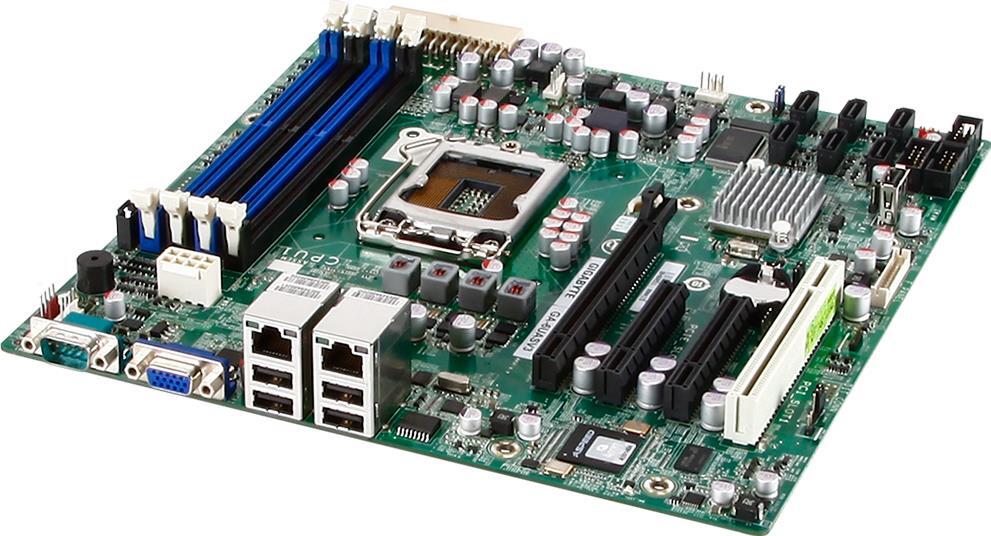

    The GA-6UASV3 is a single socket motherboard addressed to small and medium businesses wishing to benefit from all the main features expected from an entry-level server or workstation of today's technological standards, but at an efficient cost and without compromising high performances.
    It answers the main needs of small and medium businesses applications in terms of memory intensity, expansion possibilities and server management capabilities, and is therefore the perfect candidate to gear your server base for the future.
  • Intel Xeon Inside
    Intel Xeon Inside
  • PCIe Gen.3
  • Server Management
    The GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
    • iKVM
    • Native PCIe
    • 2D Video Graphic Adapter with PCIe bus interface
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
microATX
244W x 244D (mm)
CPU
Supports Intel® Xeon® processor E3-1200 & E3-1200 V2 product families
Socket
1 x LGA 1155
Chipset
Intel® C202
Memory
4 x DIMM DDR3 slots
Dual channel memory architecture
Supports ECC UDIMM modules only
Supports single rank and dual rank UDIMM modules
Up to 32GB
1.5V modules: 1600/1333/1066 MHz
LAN
2 x GbE LAN ports (Intel® 82574L & Intel® 82579LM)
Video
Integrated in Aspeed® AST2150
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp
Audio
-
SAS
-
SATA
6 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus)slot
1 x PCIe x8 (Gen2 x4 bus)slot
1 x PCI slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA II 3Gb/s connectors
1 x PSMI header
1 x CPU fan header
3 x System fan headers
1 x Front panel header
4 x USB 2.0 headers
1 x Type A USB connector
1 x Serial header
1 x SPGIO header
1 x HDD LED header
Rear I/O
4 x USB 2.0
1 x Serial
1 x VGA
2 x RJ45
1 x ID button with LED
TPM
-
OS Compatibility
Windows Server 2003 R2 + SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)
Windows Server 2008 R2 SP1 (x64)

Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)
Board Management
Aspeed® AST2150 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x Signal cable (200mm)
Reference Numbers
Retail: 9M6UASV3MR-00
Bulk: 9M6UASV3NR-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SUPPORT

  • Choose your OS
  • Choose your OS
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows Server 2008 R2 64bit
  • Windows Server 2008 R2
  • Windows Server 2008 64bit
  • Windows Server 2008 32bit
  • Windows 7 64bit
  • Windows 7 32bit
  • SuSE Linux Enterprise 11.3 64bit
  • SuSE Linux Enterprise 11.3 32bit
  • Red Hat Enterprise Linux Server 6.4 64bit
  • Red Hat Enterprise Linux Server 6.4 32bit
Chipset
Chipset
Version
Size
Date
Intel® INF Driver
Version : 9.4.0.1027
5.23 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
LAN
LAN
Version
Size
Date
Intel® LAN Driver and Utility
Version : 18.8
78.49 MB
2014/05/15
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 3.8.0.1111
16.07 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 3.8.0.1111
3.55 MB
2014/05/16
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
USB 3.0
USB 3.0
Version
Size
Date
Intel® USB 3.0 Driver
Version : 3.0.0.16
5.2 MB
2014/05/20
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2008 R2 64bit
VGA
VGA
Version
Size
Date
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Red Hat Enterprise Linux Server 6.4 32bit,Red Hat Enterprise Linux Server 6.4 64bit,SuSE Linux Enterprise 11.3 32bit,SuSE Linux Enterprise 11.3 64bit
ASPEED Graphic Driver
Version : 0.98
26.52 MB
2014/02/10
OS: Windows 7 32bit,Windows 7 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit,Windows Server 2008 R2,Windows Server 2012 64bit,Windows Server 2008 R2 64bit,Windows Server 2012 R2 64bit
