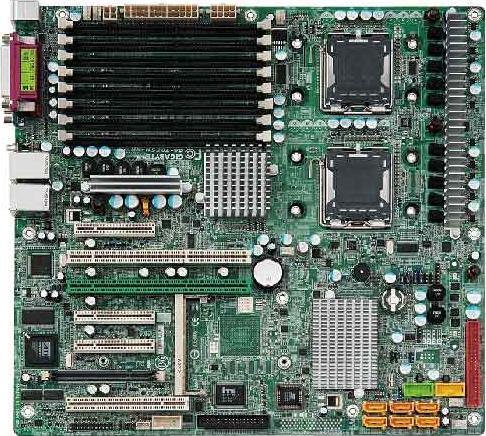

    GA-7BESH-RH-SAS

    Legacy | Software updates supported

    Rev. 1.0
    • Supports dual Intel®Xeon™ processors at FSB 667/1066/1333MHz with Intel®5000P chipset
    • Maximum 32GB Registered Fully Buffered DIMM 533/667MHz
    • Three PCI-E x8 slot and two PCI-X 100MHz slots
    • Intel®6321ESB supports six independant SATA controllers, each controller capable up to 3.0Gb/second transfer rate
    • Intel® SW RAID 0, 1, 10, 5(Windows only)/ LSI® SW RAID 0, 1, 10, 5(Linux, Option) for SATA RAID; Host RAID for SAS HDD
    • Intel® dual Gilgal Gigabit Ethernet
    • EATX Form Factor(12”W * 13”D)

    SPECIFICATIONS

    CPU
    • Dual-Core Intel® Xeon™ (Dempsey/Woodcrest) processors
    • Supports 667/1066/1333MHz/Socket LGA771
    Chipset
    • Intel®5000P
    • Intel®6321ESB
    LAN
    • Dual LAN by Intel® 82563EB GbE controller
    Video
    • ATI®ES1000 with 16MB SDRAM
    SATA
    • Build-in Intel®6321ESB supports six independant SATA controllers, each controller capable up to 3.0Gb/second transfer rate
    RAID
    • Intel® SW RAID 0, 1, 10, 5(Windows only)
    • LSI® SW RAID 0, 1, 10, 5(Linux, Option) for SATA RAID
    • GC-SAS01-RH SAS daughter card supports 8 independant SAS 3.0Gb/s with Host RAID 0,1,10
    • Host RAID for SAS HDD
    Expansion Slots
    • 3 x PCI-E slot by x8
    • 1 x PCI-X slot support 64/66~100MHz
    • 1 x PCI-X slot support 64/100MHz
    • 1 x PCI slot supports 32/33MHz
    Internal I/O
    • 2 x ATA-100 connector
    • 6 x Serial ATA 3Gb/s connector
    Rear I/O
    • 2 x PS/2
    • 7 x USB 2.0 (3 by cable)
    • 1 x Parallel
    • 2 x COM (2 by cable)
    • 1 x VGA
    • 2 x LAN RJ45
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
      • Utility
    • Manual
    • Support List
      • OS
      • QVL
    Online Support
    Driver
    BIOS
    Utility
    OS
    QVL
    • All
    • All
    • Windows Server 2003 64bit
    • Windows Server 2003 32bit
    • Windows 2000
    LAN
    LAN
    Version
    Size
    Date
    1. Intel LAN driver
    2. For RedHat Enterprise Linux ES3 Update7 32/64 bit OS
    Version : 8.6.17.0
    60.15 MB
    Jan 23, 2013
    Download
    OS: Windows 2000,Windows Server 2003 32bit,Windows Server 2003 64bit
    SAS
    SAS
    Version
    Size
    Date
    1. LSI SAS Driver
    2. For RedHat Enterprise Linux ES3 Update7 32/64 bit OS
    Version : 1.21.10.00
    149.23 MB
    Jan 23, 2013
    Download
    OS: Windows 2000,Windows Server 2003 32bit,Windows Server 2003 64bit
    SATA RAID/AHCI
    SATA RAID/AHCI
    Version
    Size
    Date
    1. Intel 6321ESB SATA RAID Driver
    Version : 5.7.0.1005
    15.58 MB
    Jan 23, 2013
    Download
    OS: Windows 2000,Windows Server 2003 32bit,Windows Server 2003 64bit
    BIOS
    Description
    Version
    Size
    Date
  • 1. Support 8G quad rank memory.
  • 2. Add Harpertown and Wolfdale E-0 stepping microcode.
  • 3. Update Harpertown C-0 stepping microcode.
    • Version : F8
    0.83 MB
    Apr 06, 2009
    Download
    1. Fixed system cannot run Option Rom with Promise SATA FastTrak TX4310
    2. Fixed Netware 6.5 could not install when insert BMC module on system
    3. Add Clovertown B1 CPU Microcode
    4. Add Dempsey D0 CPU Microcode
    Version : F3
    1.63 MB
    Apr 18, 2008
    Download
    1. Add Clovertown B3 CPU Microcode
    2. Updated code for PECI display format function
    3. Modify DMI Type1 & 2 & 3 "Manufacturer Name" and "Product Name" for Channel Model
    Version : F4
    1.64 MB
    Apr 18, 2008
    Download
    1. Patch some motherboard read CPU PECI Temperature abnormal
    2. Forced the Memory Freqency at 667Mhz when 667Mhz memory inserted with FSB 1066Mhz processor
    Version : F5
    1.64 MB
    Apr 18, 2008
    Download
    1. Updated Memory Reference code from V1.1 to V1.11R2 for All Blackford Platform.
    2. Fixed SDR Version can not Display on Setup Menu.
    3. Fixed Hardware Monitor FAN Speed not have match Board Define.
    4. Modify CPU L2 Cache Size Display on Setup Menu.
    5. Updated code for HCT 12.1 test.
    6. Enhance Disable 7901 when 7901 Controller as "Disable" on Setup Menu.
    7. Modify Hardware Monitor Function to match 7BESH PCB1.1.
    8. Fixed LSI 8408E SAS RAID Card can not Into RHEL3 UP4 SMP Mode.
    9. Add Code to Check 7901 if Present for Hide OnBoard 7901 Item on Setup Menu.
    10. Modify "System FAN1, 2" Strings as "CPU FAN1, 2" on Setup Menu.
    11. Fixed SAS Card can not Into OPROM when press Ctrl+C.
    12. Change CPU "C1 Enhanced Mode" Default as "Enable" for HCT Test.
    13. Fixed the "Sony SDX-470V" tape cannot detect under POST problem.
    14. Fixed some SelfTest Error.
    15. Update CPU Microcode.
    16. Fixed Dempsey 3.73G can not Into Win2003+SP1.
    17. Modify SMBIOS Type 09 PCI Slot Information.
    18. Modify SMBIOS Type 01, 02 Manufacturer Information.
    Version : F2
    0.81 MB
    Nov 28, 2006
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    • All
    • All
    • Windows Server 2003 32bit
    Utility
    Description
    Version
    Size
    Date
    1. SAS 1068 Utility
    2. For Windows Server 2003 32 bit operating system only
    Version : 3.00.05
    52.83 MB
    Mar 14, 2007
    Download
    OS: Windows Server 2003 32bit
    Manual
    Description
    Version
    Size
    Date
    1. User's Manual for GA-7BESH-RH
    Version : 1001
    0.84 MB
    Aug 25, 2006
    Download
    English
    Description
    Version
    Size
    Date
    OS Support List
    Version : 1.0
    0.02 MB
    Sep 29, 2006
    Download
    1. OS Compatibility for GA-7BESH-RH
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.2
    0.01 MB
    Sep 09, 2008
    Download
    1. QVL for GA-7BESH-RH
    2. For PCB version 1.1
