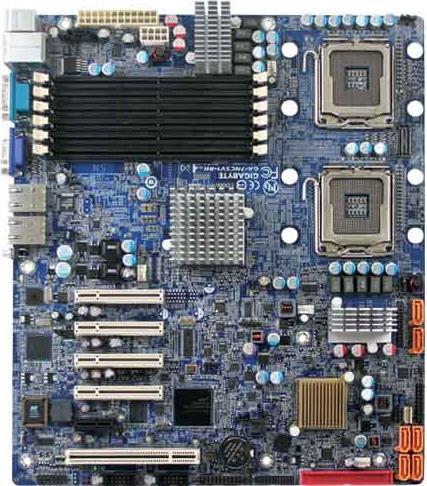

    GA-7NCSV-RH

    Legacy | Software updates supported

    Rev. 1.0
    • Supports dual Intel®Xeon® processors at FSB 1066/1333MHz with Intel®5100 chipset & 82801IR ICH9 RAID chipset
    • Supports 6 ECC Registered DDR2 533/667MHz
    • Integrated in ServerEngines Pilot II VGA chipset
    • Four PCI-E x8 slot, one PCI-E x1 slot, and one PCI 32/33MHz slot
    • Intel® Virtualization Technology features native harware platform for various OS in one system
    • Intel®82801IR ICH9 RAID supports six independant SATA controllers, each controller capable up to 3Gb/second transfer rate
    • Intel® SW RAID 0, 1, 10, 5(RAID 5 is for Windows only)
    • Intel® 82566DM single-port GbE controller & Intel® 82573 single-port GbE & single-port 100BASE-TX
    • ServerEngines Pilot II Server Management features enhanced
    • CEB Form Factor(12”W * 10.5”D)

    SPECIFICATIONS

    CPU
    • Dual-Core Intel® Xeon® (Woodcrest/Wolfdale) processors
    • Quad-Core Intel® Xeon® (Clovertown/Harpertown) processors
    • Supports 1066/1333MHz/Socket LGA771
    Chipset
    • Intel® 5100
    • Intel® 82801IR ICH9 RAID
    LAN
    • Intel® 82566DM single-port GbE GbE
    • Intel® 82573 single-port GbE GbE
    • Single-port 100BASE-TX (for management)
    Video
    • Integrated in ServerEngines Pilot II
    SATA
    • Intel® 82801IR ICH9 RAID SATA 3Gb/s controller
    • Supports 6 x SATA connectors
    RAID
    • Intel® SW RAID 0, 1, 10, 5(Windows only)
    • Optional LSI SW RAID 0/1/10 or LSI SW RAID 0/1/5/10
    Expansion Slots
    • 3 x PCI-E x8
    • 1 x PCI-E x8 (x1 bandwidth)
    • 1 PCI-E x1
    • 1 x PCI supports 32/33MHz
    Internal I/O
    • 1 x IDE connector
    • 2 x 2 USB 2.0 connectors (for additional 4 ports by cables)
    • 1 x COM connector
    • 6 x Serial ATA 3Gb/s connector
    Rear I/O
    • 2 x PS/2
    • 2 x USB
    • 1 x COM
    • 1 x VGA
    • 2 x RJ45
    Board Management
    • ServerEngines Pilot II
    [#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
    [#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
    [#3] All trademarks and logos are the property of their respective owners.

    SUPPORT

    • Downloads
      • Driver
      • BIOS
    • Manual
    • Support List
      • QVL
    Online Support
    Driver
    BIOS
    QVL
    • All
    • All
    • Windows XP 32bit
    • Windows Vista 32bit
    • Windows Server 2008 64bit
    • Windows Server 2008 32bit
    • Windows Server 2003 64bit
    • Windows Server 2003 32bit
    • Windows 2000
    • Default
    Default
    Default
    Version
    Size
    Date
    -
    108.02 MB
    Jan 12, 2009
    Download
    OS: Default
    Chipset Update Patch
    Chipset Update Patch
    Version
    Size
    Date
    -
    2.13 MB
    Dec 15, 2008
    Download
    OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit,Windows Vista 32bit
    VGA
    VGA
    Version
    Size
    Date
    -
    2.51 MB
    Dec 15, 2008
    Download
    OS: Windows Server 2003 32bit,Windows Server 2003 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
    Matrox VGA Drivers For XFree86 and X.org
    Version : 4.3.21
    7.62 MB
    Jan 12, 2009
    Download
    OS: Default
    BIOS
    Description
    Version
    Size
    Date
  • 1. Update MRC Code 1.30.
  • 2. Support setup menu boot order default change by CMOS default change utility.
  • 3. Fixed BIOS Setup Menu just display only one USB CD-ROM when connect two USB CD-ROM.
  • 4. Fix use SATA 0,2,4,5 port full HDD install Windows error.
    • Version : F6
    0.67 MB
    Apr 06, 2009
    Download
  • 1. Fixed the mouse cannot work under WebBIOS of RLE087 RAID card.
  • 2. Update Harpertown C-0 Stepping Microcode.
  • 3. Add Harpertown E-0 Stepping Microcode.
  • 4. Fixed could not install Windows Server 2003 when plug LSI SAS3081E on slot 2.
  • 5. Fixed the L2 cache size of Harpertown processor display not correctly problem.
  • 6. Fixed Setup Menu could not display 4G memory.
    • Version : F7
    0.68 MB
    Apr 06, 2009
    Download
    Warning:
    Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

    What is a BETA?
    BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
    Manual
    Description
    Version
    Size
    Date
    1. GA-7NCSV-RH user's manual
    Version : 1001
    1.13 MB
    Dec 12, 2008
    Download
    English
    Description
    Version
    Size
    Date
    QVL Support List
    Version : 1.2
    0.08 MB
    Sep 26, 2008
    Download
    1. QVL for GA-7NCSV-RH
