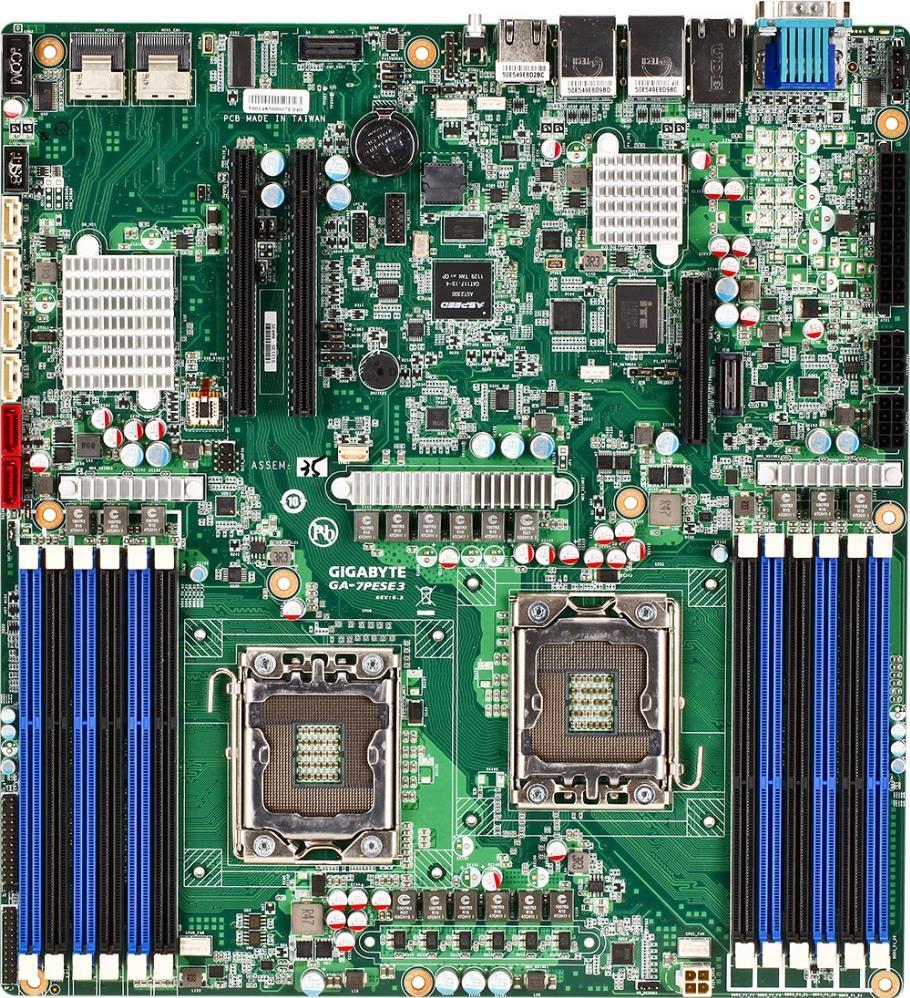

- GA-7PESE3
GA-7PESE3
Discontinued
Intel® C602 chipset
- Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
- 12 x RDIMM/UDIMM ECC DIMM slots
- 4 x GbE LAN ports (Intel® 82574L)
- 2 x SATA III 6Gb/s + 4 x SATA II 3Gb/s
- 8 x SAS or SATA 3Gb/s via mini-SAS
- Aspeed AST2300
-
Heavy Duty Corporate Grade Server BoardThis board is the dual socket model of this series that is specially designed to deliver the highest efficiency in terms of power consumption and cooling in high density infrastructure. Thanks to the grouped position of the socket, the processors can be cooled more effectively, and the air flow directed on the sockets will also pass on the expansions located on the same axis as the sockets.
-
Intel Xeon InsideIntel Xeon Inside
-
DDR3 1600
-
Dual GbE LAN
-
PCIe Gen.3
-
SATA3.0
-
Server ManagementThe GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
- iKVM
- Native PCIe
- 2D Video Graphic Adapter with PCIe bus interface
-
VMware ReadyThe VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere. The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
-
Red Hat Certified HardwareGIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
305W x 330D (mm)
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
Chipset
Intel® C602
Memory
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz
*RDIMM only
LAN
4 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x120060Hz 32bpp
Audio
-
SAS
1 x Mini-SAS (for 4 x SATA II 3Gb/s ports)
1 x Mini-SAS connector (disabled, can be enabled via Intel® upgrade key)
1 x Mini-SAS connector (disabled, can be enabled via Intel® upgrade key)
SATA
2 x SATA III 6Gb/s
4 x SATA II 3Gb/s
4 x SATA II 3Gb/s
RAID
Intel® SATA RAID 0/1/10/5
Intel® SAS RAID 0/1/10
Intel® SAS RAID 0/1/10
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe x8 (Gen3 x8 bus) slot
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
1 x System fan header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
2 x Mini SAS connectors
1 x PMBus connector
1 x Front panel header
1 x Back panel header
1 x SCU key header
1 x IPMI connector
1 x TPM header
1 x USB 2.0 header
1 x Serial header
1 x SPGIO header
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
1 x System fan header
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
2 x Mini SAS connectors
1 x PMBus connector
1 x Front panel header
1 x Back panel header
1 x SCU key header
1 x IPMI connector
1 x TPM header
1 x USB 2.0 header
1 x Serial header
1 x SPGIO header
Rear I/O
4 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)
Red Hat Enterprise Linux 5.7 (x86/x64)
Red Hat Enterprise Linux 6.2 (x86/x64)
SUSE Linux Enterprise Server 11.2 (x86/x64)
VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
12V single output available in option
2 x 8-pin ATX 12V power connectors
12V single output available in option
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M7PESE3MR-00
Bulk: 9M7PESE3NR-00
Bulk: 9M7PESE3NR-00
