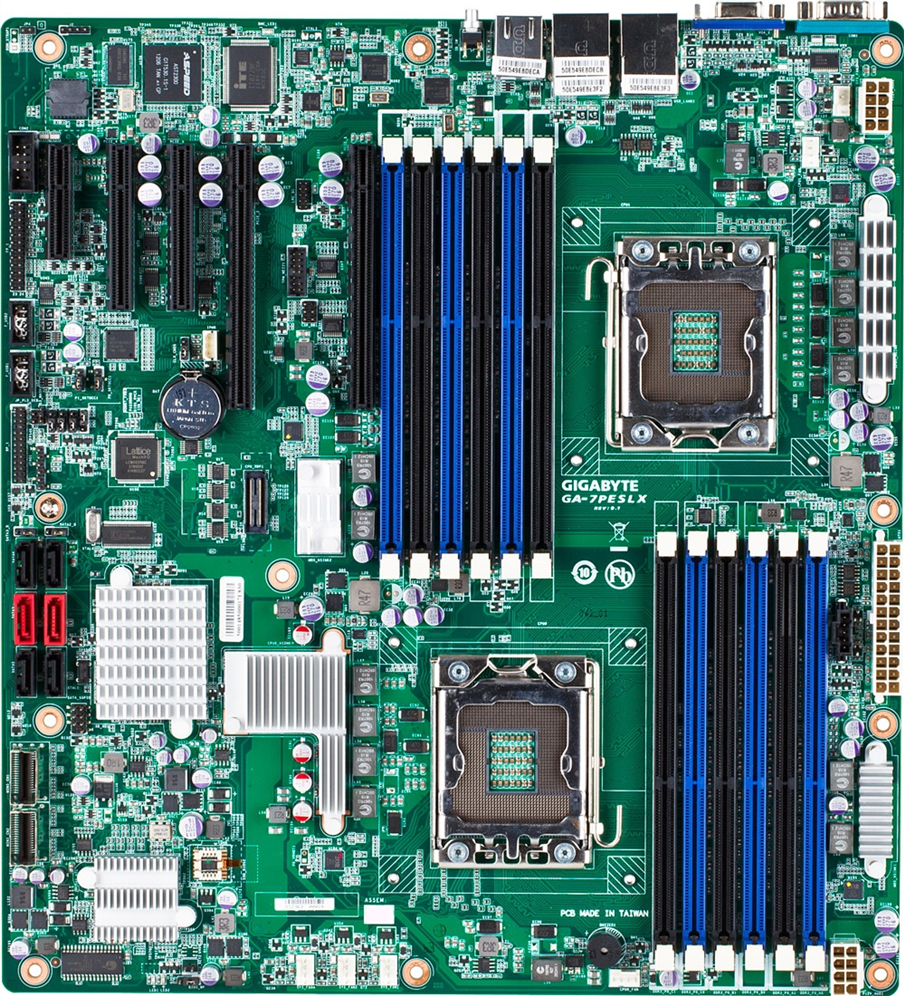

• Advanced Computing/Storage Hybrid Server Board
    This high end dual socket server motherboard is the mainstream model of this new series, mainly addressed to enterprise requirements for top performance computing in server and datacenter environments. It has been designed to achieve its backbone role with the highest flexibility possible, which means large memory and expansion platforms, and different options in storage connectivity as well as remote board management controllers.
  • Intel Xeon Inside
    Intel Xeon Inside
  • DDR3 1600
  • PCIe Gen.3
  • SATA3.0
  • Server Management
    The GA-6UASV4 is equipped with an ASPEED AST2150 board management controller (BMC), providing support for:
    • iKVM
    • Native PCIe
    • 2D Video Graphic Adapter with PCIe bus interface
  • VMware Ready
    The VMware Ready program allows customers to quickly identify products and solutions from VMware's partners, which are optimized for VMware vSphere.
    The VMware Ready logo certifies that this product addresses VMware's specific criteria in terms of integration and compatibility, and that it is ready to execute mission-critical applications and operations.
  • Red Hat Certified Hardware
    GIGABYTE certifies its server hardware with Red Hat Enterprise Linux to provide its customers with the confidence of knowing that their hardware systems are supported by Red Hat when they run Red Hat Enterprise Linux.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor
E-ATX / SSI EEB
305W x 330D (mm)
CPU
Supports Intel® Xeon® processor E5-2400 & E5-2400 V2 product families
Socket
2 x LGA 1356
Chipset
Intel® C602
Memory
12 x DIMM slots
Tri channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 800/1066/1333 MHz
1.5V modules: 800/1066/1333/(1600*) MHz

*RDIMM only
LAN
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
SAS
2 x Mini-SAS connectors (for 8 x SAS 6Gb/s ports)
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
RAID
Intel® SATA RAID 0/1/10/5
LSI® SAS2008 RAID 0/1/1E/10
Expansion Slots
2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x4 bus) slot
1 x PCIe x8 (Gen2 x4 bus) slot
1 x PCIe x4 (Gen2 x1 bus) slot
Internal I/O
1 x 24-pin main power connector
2 x 8-pin 12V power connectors
4 x System fan headers
2 x CPU fan headers
1 x PMBus connector
1 x LSI® RAID select connector
1 x BIOS write protect jumper
1 x LSI® firmware readiness LED
2 x Mini-SAS connectors
1 x SATA SGPIO connector
4 x SATA II 3Gb/s ports
2 x SATA III 6Gb/s ports
2 x SATA port DOM support jumpers
1 x ME enable/disable jumper
1 x BIOS recovery jumper
1 x Clear password jumper
1 x Force to Stop FRB3 Timer jumper
2 x USB 2.0 headers
1 x Front panel header
1 x Serial header
1 x TPM header
Rear I/O
4 x USB 2.0
1 x VGA
Š1 x Serial
3 x RJ45
1 x ID button with LED
TPM
1 x TPM header
OS Compatibility
Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 SP2 (x86/x64)
Windows Server 2008 R2 (x64)

Red Hat Enterprise Linux 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
Board Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Retail Packaging Content
1 x Driver CD
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)
Reference Numbers
Retail: 9M7PESLXMS-00
Bulk: 9M7PESLXNS-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
