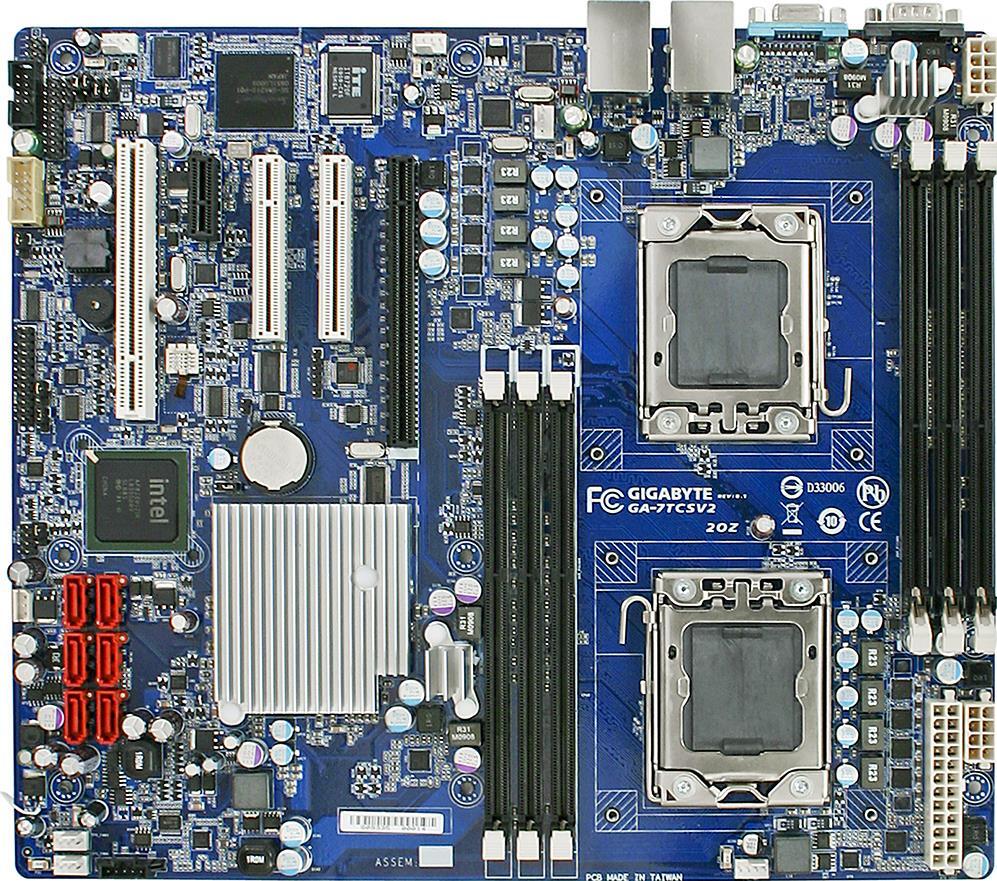

GA-7TCSV2
(rev. 1.1)
Discontinued
Intel 5500 chipset + ICH10R
- CEB form factor easy to find suitable chassis.
- Up to two Intel Xeon processors 5500 or 5600 series.
- Up to 6 DIMMs of registered or ECC unbuffered DDR3 memory.
- Well-rounded expansion: one PCIe 2.0 x16, two PCIe 2.0 x4, one PCIe x1, and one PCI.
- Onboard ServerEngines Pilot II providing secure IP-based remote server management.
SPECIFICATIONS
Form Factor
- CEB (12” x 10.5”)
CPU
- Dual Intel Xeon processor 5500/ 5600 series
- Support up 95W
Chipset
- Intel 5500 chipset with Intel ICH10R
Memory
- 6 DDR3 DIMM sockets support registered or ECC unbuffered
- 6 channel native 1066/ 1333MHz
LAN
- Dual Intel 82574L GbE controllers
Video
- Matrox G200e (ServerEngines Pilot II)
SATA
- 6 ports SATA 3Gbps via Intel ICH10R
RAID
- Intel SW RAID 0/ 1/ 5/ 10
- Optional 8 ports SAS 6Gbps HW RAID add-on card: GC-RLE087-RH
- Optional 8 ports SAS 6Gbps SW RAID add-on card: GC-RLE086-RH
Expansion Slots
- 1 PCI Express 2.0 x16
- 2 PCI Express 2.0 x4 (x8 mechanical)
- 1 PCI Express 2.0 x1
- 1 PCI
Board Management
- ServerEngines Pilot II (IPMI 2.0) + iKVM
Reference Numbers
- 9M7TCSV20R-00
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Firmware
OS
QVL
- All
- All
- Windows XP 64bit
- Windows XP 32bit
- Windows Vista 64bit
- Windows Vista 32bit
- Windows Server 2008 64bit
- Windows Server 2008 32bit
- Windows Server 2003 32bit
- Windows 2000
- UnixWare
- RedHat Enterprise Linux 5 64bit
- RedHat Enterprise Linux 5
- Open Server
- Novell Netware
- FreeBSD
Chipset Update Patch
Chipset Update Patch
Version
Size
Date
Intel Chipset INF for GS-R22T61 / GS-R22T81
Version : 9.1.0.1014
2.39 MB
Nov 23, 2009
OS: Windows 2000,Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
LAN
LAN
Version
Size
Date
Intel GbE LAN Driver for Windows, FreeBSD, Linux, NetWare Server, SCO Open Server and Unixware
-
2.61 MB
Nov 23, 2009
OS: Windows 2000,Windows Server 2003 32bit,FreeBSD,Novell Netware,Open Server,UnixWare,Windows Server 2008 32bit,Windows Server 2008 64bit
SATA
SATA
Version
Size
Date
Intel SATA RAID/AHCI driver
Version : 8.7.0.1007.
0.46 MB
Nov 23, 2009
OS: Windows 2000,Windows XP 32bit,Windows XP 64bit,Windows Server 2003 32bit,Windows Vista 32bit,Windows Vista 64bit,Windows Server 2008 32bit,Windows Server 2008 64bit
VGA
VGA
Version
Size
Date
Linux VGA Driver for RHEL and SuSE
Version : 4.3.21
7.55 MB
Nov 23, 2009
OS: RedHat Enterprise Linux 5,RedHat Enterprise Linux 5 64bit
Windows VGA Driver for Server Engines Pilot II
Version : 20080229.1966
1.41 MB
Nov 23, 2009
OS: Windows Server 2003 32bit,Windows Server 2008 32bit,Windows Server 2008 64bit
