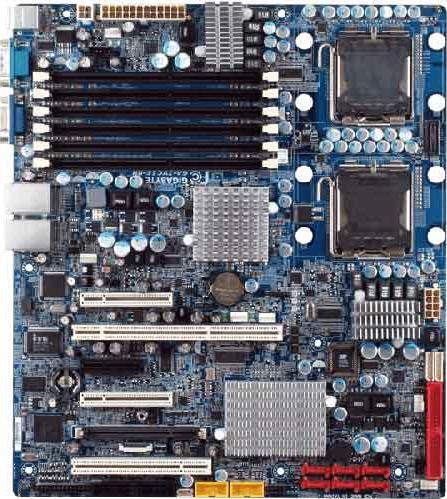

Specifications
CPU
- Dual-Core Intel® Xeon® (Woodcrest/Wolfdale) processors
- Quad-Core Intel® Xeon® (Clovertown/Harpertown) processors
- Supports 667/1066/1333MHz/Socket LGA771
Chipset
- Intel® 5000V
- Intel® 6321ESB
LAN
- Intel® 82563 Gilgal GbE controller
Video
- XGI®Volari Z9s
SATA
- Intel® 6321ESB SATA 3.0Gbps Controller
- Supports 6 x SATA connectors
RAID
- Intel® SW RAID 0, 1, 10, 5(Windows only)
Expansion Slots
- 1 PCI-E x8
- 1 PCI-E x4 (x8 slot)
- 1 PCI-E x4
- 1 x PCI-X support 64/100~133MHz
- 1 x PCI supports 32/33MHz
- 1 x IPMI 2.0 (Optional)
Internal I/O
- 1 x ATA-100 connector
- 1 x Floppy connector
- 2 x USB connector
- 6 x Serial ATA 3Gb/s connector
Rear I/O
- 2 x PS/2
- 4 x USB
- 1 x COM
- 1 x VGA
- 2 x RJ45
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
