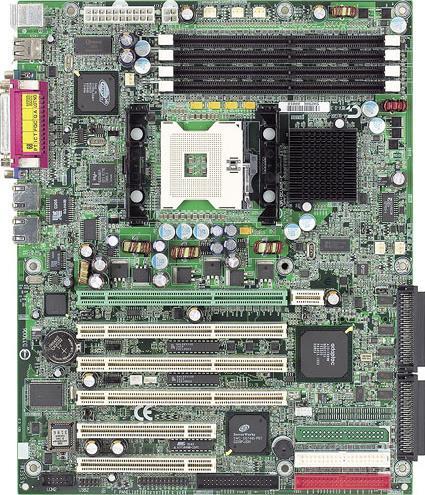

GA-8EGXRP- E

Legacy | Software updates supported

Rev. 1.0

Server Works® GC-SL, CSB6, ATI® Rage XL 8MB
Intel® Xeon™ Processors with 512KB L2 Cache (Socket 604/533MHz FSB/2.4GHz+)
Max. 4GB Registered (ECC) DDR-266 Memory in 4 DIMM Slots
Adaptec® 7899W Dual Ultra 160 SCSI Channels
Adaptec® Zero Channel RAID Enabled PCI-64 Slot (3.3V)
4 PCI 64-Bit/33MHz (3.3V) and 2 PCI 32-Bit/33MHz
2 ATA-100 Channels
Intel® 82550PM 10/100 Mbps Fast Ethernet and 82540EM Gigabit Ethernet with Advanced Software Functions

SPECIFICATIONS

CPU

Supports Intel^® Xeon(512KB L2 Cache) up to 2.4 GHz
533 Mhz FSB
Socket 604

Chipset

Serverworks^® GC-SL/CSB6

LAN

Intel^® 82540EM Gigabit Controller
Intel^® 82550PM 10/100 Controller

Video

ATI Rage-XL on board with 8MB memory

IDE / SCSI

Dual ATA 100 & IDE channels
Adaptec 7899W SCSI Controller
Dual SCSI Channels (Ultra 160)

RAID

Adaptec^® ZCR Enabled PCI Slot

Expansion Slots

4 x PCI 64/33MHz
2 x PCI 32/33MHz

Rear I/O

2 x PS/2
4 x USB (Two at front and two at rear)
1 x COM
1 x LPT
2 x LAN RJ45

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.

SUPPORT

Downloads

Driver
BIOS
Utility

Manual
Support List

Online Support

Driver

BIOS

Utility

QVL

All
All
Windows XP 32bit
Windows Server 2003 32bit
Windows NT
Windows 2000
Novell Netware

LAN

Version

Size

Date

Intel LAN driver

Version : 8.3C005

55.98 MB

Apr 22, 2005

Download

OS: Windows 2000,Windows XP 32bit,Windows Server 2003 32bit,Novell Netware

SCSI

Version

Size

Date

Driver for Adaptec AIC-7899G

Version : 3.10 a

1.31 MB

Apr 18, 2002

Download

OS: Windows NT,Windows 2000

VGA

Version

Size

Date

VGA drivers

Version : J5.30.0

40.25 MB

Aug 11, 2003

Download

OS: Windows NT,Windows 2000,Windows XP 32bit

BIOS

Description

Version

Size

Date

Add Windows Server 2003 support

Version : F5

0.57 MB

Mar 03, 2004

Download

Release version
Function key Ctrl-F1 to invoke Spread Spectrum setup option for EMI testing
Spread spectrum is set to be 0.35% for CPU of FSB=533 only
Fix: CPU temperature display in BIOS setup

Version : F4

0.56 MB

May 30, 2003

Download
