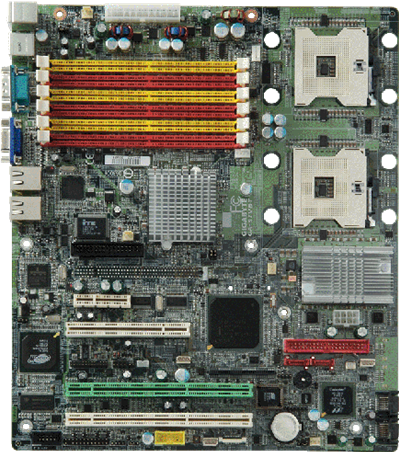

Specifications

CPU
  • Dual Intel® Xeon (Nocona) support up to 3.8GHz
  • Supports 800MHz/Socket 604
Chipset
  • Intel® 7320 MCH
  • Intel® 6300ESB
LAN
  • 1 x Broadcom® 5721 GbE
  • 1 x Broadcom® 5705 GbE
Video
  • ATI®Rage XL with 8MB
RAID
  • 4 x SATA (Adaptec®AIC-8130)
  • Host RAID 0,1 (Adaptec® ZCR enabled PCI slot)
Expansion Slots
  • 2 x PCI-X slot support 64/66MHz (3.3V / The Green slot supports ZCR)
  • 1 x PCI slot supports 32/33MHz
  • 1 PCI-E slot by x4
Rear I/O
  • 2 x PS/2
  • 2 x USB
  • 1 x COM
  • 1 x VGA
  • 2 x LAN RJ45

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
