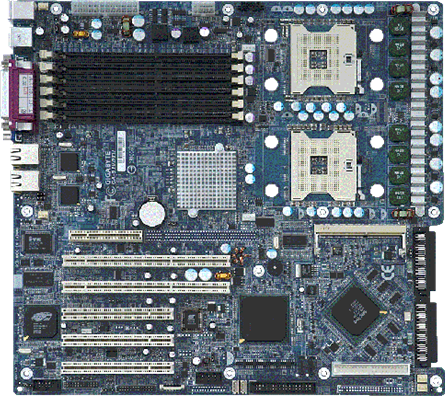

GA-9IVDTH
Legacy | Firmware updates supported- A Dual-Processor based platform supports the New Intel®Xeon™ processor (800MHz FSB) with the new Extended Memory 64 Technology
- Intelligent PCI-X to dual channel Ultra320 SCSI enable high data throughput and stability
- Host RAID feature (RAID 0, 1, 10) enabled to fill the needs of most internal RAID installation - secures platform availability and data safety; One PCI-X Slot (in Green color) supports Adaptec Zero-Channel RAID Card (Card not include) to enhance features
- Dual Intel® Gigabit Ethernet facilitate teaming and remote management functionality, enlarges the capability of networking data transmission
- Capable to support SI/OEM projects with advanced IPMI V.1.5 management function with GIGABYTE Server Management Utility for remote management and console redirection
Specifications
CPU
- Dual Intel® Xeon™ (Nocona) support up to 3.8GHz
- Supports 800MHz/Socket 604
Chipset
- Intel® 7320 MCH
- Intel® 6300ESB
LAN
- Dual Intel® 82541 GI GbE
Video
- ATI®Rage XL with 8MB
IDE / SCSI
- Adaptec®7902W chipset supports dual ultra 320 SCSI channels
RAID
- Adaptec ZCR enabled SO-DIMM interface
- HOST RAID supported
- Support RAID 0 ,1, 10
Expansion Slots
- 2 x PCI-X slot support 64/66MHz
- 1 x PCI-E slot by 8 x 1
- 3 x PCI slot supports 32/33MHz
Rear I/O
- 2 x PS/2
- 1 x Parallel port
- 2 x USB
- 1 x COM
- 1 x VGA
- 2 x LAN RJ45
[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#3] All trademarks and logos are the property of their respective owners.
