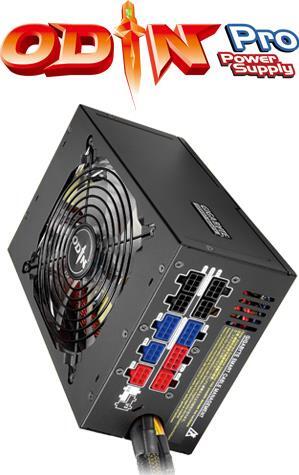

ODIN Pro 1200W

Key FeaturesSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Model
  • GE-MK20A-D1
  • Dimensions
  • 200 X 150 X 86 mm
  • Connectors
  • 24-pin Motherboard Connector 1
    8-pin +12V CPU Connector 1
    (4+4) +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connectors 6
    SATA Connectors 10
    4-pin Peripheral Connectors 8
    4-pin Floppy Connectors 2
  • Weight
  • 3.5 kg / 7.7 Ib
  • Info
  • AC INPUT 100-240 Vac 15A 50/60Hz
    DC OUTPUT +3.3V +12V1 +12V4 +12V2 +12V3 +5V -12V +5Vsb
    MAX OUTPUT CURRENT 30A 20A 36A 20A 36A 30A 0.8A 3.5A
    99A
    MAX COMBINED WATTAGE 600W 600W 9.6W 17.5W
    TOTAL POWER 1200W
  • Certifications
  • 80Plus, SLI
  • Safety Approval
  • CE, CB, TUV, cUL, FCC, BSMI, C-Tick, CCC
  • Remark
  • ODIN GT and ODIN PRO Series only support the models below A55/A78/A75 REV 1.0 or go with the motherboard produced in the same period.
  • Model
  • GE-MK20A-D1
  • Dimensions
  • 200 X 150 X 86 mm
  • Connectors
  • 24-pin Motherboard Connector 1
    8-pin +12V CPU Connector 1
    (4+4) +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connectors 6
    SATA Connectors 10
    4-pin Peripheral Connectors 8
    4-pin Floppy Connectors 2
  • Weight
  • 3.5 kg / 7.7 Ib
  • Info
  • AC INPUT 100-240 Vac 15A 50/60Hz
    DC OUTPUT +3.3V +12V1 +12V4 +12V2 +12V3 +5V -12V +5Vsb
    MAX OUTPUT CURRENT 30A 20A 36A 20A 36A 30A 0.8A 3.5A
    99A
    MAX COMBINED WATTAGE 600W 600W 9.6W 17.5W
    TOTAL POWER 1200W
  • Certifications
  • 80Plus, SLI
  • Safety Approval
  • CE, CB, TUV, cUL, FCC, BSMI, C-Tick, CCC
  • Remark
  • ODIN GT and ODIN PRO Series only support the models below A55/A78/A75 REV 1.0 or go with the motherboard produced in the same period.
