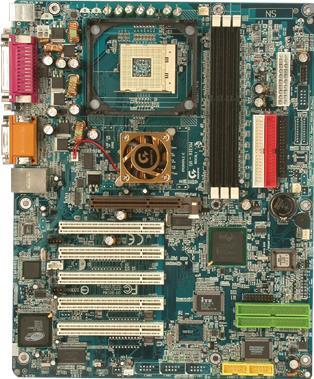

GA-8IEXWLegacy | Software updates supported
- Supports single Intel® Pentium 4 processor(Socket 478/533Mhz FSB up to 2.4 Ghz)
- Intel® 845E, ICH4, ATI® Rage XL 8MB
- Max. 2GB Un-Buffered (ECC) DDR-266 Memory in 3 DIMM Slots
- AGP 4X, ALC650 AC’97 Codec (2-Channel)
- Promise® PDC 20276 Dual ATA-133 Channels with RADI 0,1
- Intel® 82550PM 10/100 Mbps Fast Ethernet
- ITE® IT8712F-A Super I/O + Hardware Monitor
- ATX 12”W x 9.6”D, ATX + 12V Auxiliary Power, VRM 9.0
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Intel® P4 Processor up to 2.4 GHz
- 533 Mhz FSB
- Socket 478
Chipset
- Intel®Brookdale 845E/ICH4
LAN
- Intel®82550PM 10/100 Mbps Ethernet LAN controllers onboard
Video
- ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Promise® PDC 20276 RAID Controller
- Dual ATA-133 IDE Channels
- Dual ATA-100 IDE Channels
RAID
- Dual ATA-133 IDE Channels with RAID 0,1
Expansion Slots
- 5 x PCI 32/33MHz PCI Slots
Rear I/O
- 2 x PS/2
- 2 X USB
- 1 x COM
- 1 x LPT
- 1 x LAN RJ45
