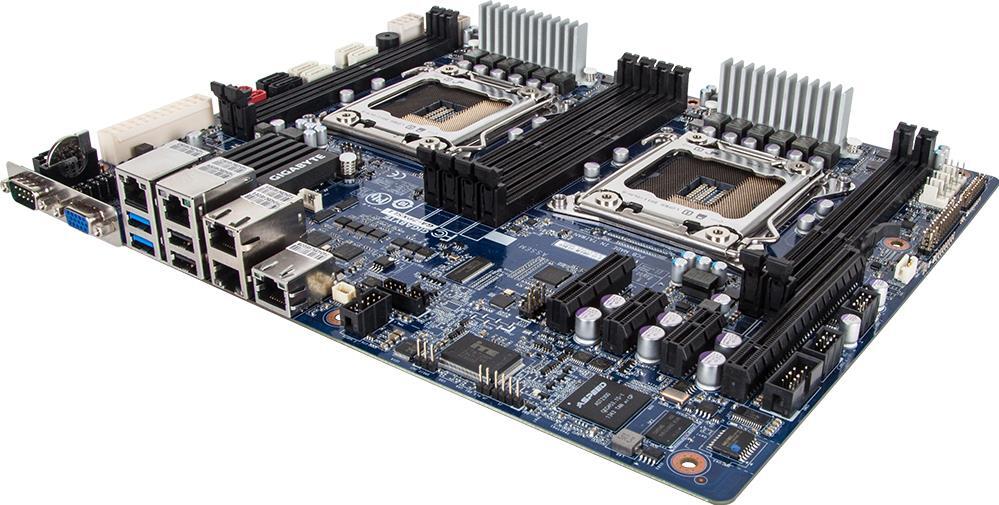

GA-7PXSL1Legacy | Firmware updates supported

ATX
305W x 244D (mm)

Supports:

• Intel^® Xeon^® E5-2600 V2 processors
• Intel^® Xeon^® E5-1600 V2 processors (single CPU configuration only)
• Intel^® Xeon^® E5-2600 processors
• Intel^® Xeon^® E5-1600 processors (single CPU configuration only)

2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C602

8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel Xeon E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

4 x GbE LAN ports (Intel^® 82574L)
1 x 10/100 management LAN port

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Realtek^® ALC887 controller

• Supports 2/4/5.1/7.1 channel configurations
• Support for S/PDIF-Out

4 x SAS ports (for 4 x SATA II 3Gb/s ports)
Can be upgraded to SAS 3Gb/s via upgrade ROM

2 x SATA III 6Gb/s ports
2 x SATA II 3Gb/s ports

Intel^® SATA RAID 0/1/10/5
Intel^® SAS RAID 0/1/10 (via upgrade ROM)

1 x PCIe x16 (Gen3 x8 bus) slot
1 x PCIe x4 (Gen3 x4 bus) slot
2 x PCIe x1 (Gen2 x1 bus) slots

2 x 8-pin ATX 12V power connectors
1 x 24-pin ATX main power connector
1 x CMOS battery
1 x PMBus connector
1 x Chassis intrusion header
2 x SATA III 6Gb/s ports (SATA1 support SATA DOM function)
2 x SATA II 3Gb/s ports
4 x SAS/SATA 3Gb/s ports
2 x CPU fan headers
4 x System fan headers
1 x HDD back plane board header
1 x Front panel header
1 x IPMB connector
2 x USB 2.0 headers
1 x Serial header
1 x PS/2 header
1 x BMC firmware readiness LED
1 x S/PDIF-Out header
1 x TPM header
1 x Front audio header
1 x Flash descriptor security jumper
1 x BIOS write protect jumper
1 x Intel C600 series upgrade key
2 x SATA SGPIO headers
1 x PMBUS select jumper
1 x S3 power on select jumper
1 x Force to stop FRB1 timer jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x Cleaning supervisor password jumper
1 x BIOS recovery jumper

2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45

1 x TPM header

Windows Server 2003 R2 SP2 (x86/x64)
Windows Server 2008 R2 SP1 (x64)
Windows Server 2012 (x64)
Windows 7 SP1 Ultimate (x86/x64)
Windows 8 Enterprise (x86/x64)

Red Hat Enterprise Linux 5.9 (x86/x64)
Red Hat Enterprise Linux 6.4 (x86/x64)

SuSE Linux Enterprise Server 11.3 SP3 (x86/x64)

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

1 x Driver CD
1 x User manual
1 x I/O shield
2 x SATA II 3Gb/s cables (500mm)

Retail: 9M7PXSL1MR-00
Bulk: 9M7PXSL1NR-00
